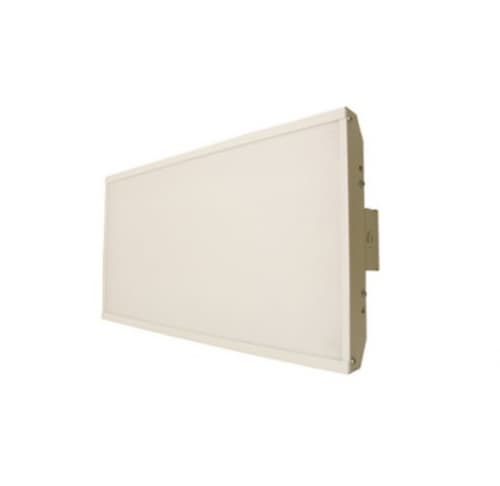

TCP HB17500140LS1D 175W LED Linear High Bay w/ LS1D Sensor, 0-10V Dimming, 22750 lm, 120V-277V, 4000K

The TCP HB17500140LS1D is a 175 W LED high bay luminaire designed for high-ceiling industrial, commercial, and retail environments. It delivers bright, wide-area illumination with a 4000 K color temperature, which provides a cool, clean light suitable for task visibility and safety-critical work. Built with an all-metal frame, the unit emphasizes durability and stable mounting in demanding locations. The LS1D sensor integration supports occupancy sensing with daylight harvesting, helping reduce energy use when spaces are unoccupied or well-lit by natural light. A standard frosted lens helps control glare and promote smooth, shadow-free illumination across the workspace.

Key construction and features include a post-painted steel frame with rounded edges and a scalable mounting system. The design supports a broad beam spread through an angled LED configuration, which improves light distribution and helps achieve clean cut-off. The fixture is damp-location rated and uses 0-10V dimming for smooth, flicker-free control. In addition to the sensor, there are options for a battery backup or additional motion sensing, expanding applicability in areas with limited electrical access or where security lighting is desired. The luminaire is listed to cUL/UL standards and DLC Premium, which reflects eligibility for certain utility rebates and compliance with recognized safety and performance criteria.

This high bay is sized for large spaces, with dimensions roughly 23.8 inches long, 17.5 inches wide, and 3.8 inches high, and weighs about 14 pounds. It ships with hardware for installation, including hangers, chains, hub mount kit for conduit or stem mounting, and a pre-wired power cord, facilitating quick setup. The product is intended for 120–277 V operation and provides a nominal lumen output well-suited for industrial workloads, with a reported efficacy of approximately 130 lumens per watt and a long-rated life. When selecting for your space, consider ceiling height, mounting method, and whether you will utilize the LS1D sensor features for energy management and access-control needs.

Features:

• Leviton occupancy sensor with daylight harvesting.
• Post painted steel frame with rounded edge corners.
• Wide beam spread with clean cut off from angled LED design.
• Standard frosted lens for glare control.
• No shadows, smooth even lighting.
• Damp location rated.
• 0-10V dimming for smooth operation.
• Hardware included: hangers, chains, hub mount kit, pre-wired cord.
• cUL/UL Listed, DLC Premium.
