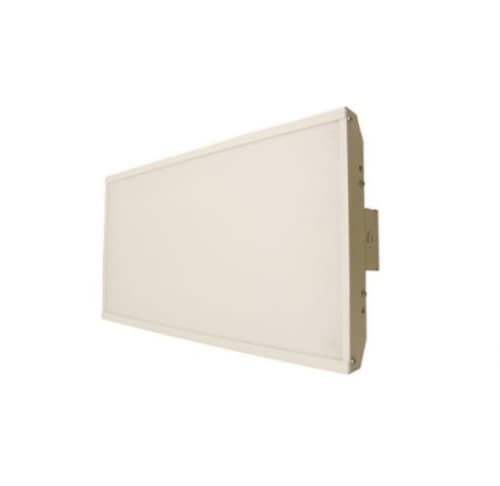

TCP HB17500140LS1 175W LED Linear High Bay w/ LS1 Sensor, 0-10V Dimming, 22750 lm, 120V-277V, 4000K

The TCP HB17500140LS1 is a high bay LED lighting fixture designed for large, high-ceiling spaces such as warehouses, retail, industrial, and commercial settings. It delivers a bright, 4000K cool white light with high efficacy, using an all-metal frame to support long-lasting operation in demanding environments. The integrated LS1 sensor and 0-10V dimming provide flexible control, enabling smooth, flicker-free adjustment of light output to match occupancy and daylight needs. The fixture is listed for damp locations and features a frosted lens to reduce glare and deliver a uniform, shadow-free illumination over broad areas.

Constructed with a post-painted steel frame and rounded edge corners, this luminaire minimizes sharp edges and construction-related damage during installation. The design emphasizes robust mounting options with included hardware, which supports quick, secure installation in high-ceiling applications. The LED platform reaches a reported 50,000 hours of life and an efficacy of 130 lm/W, offering a long service interval with lower maintenance than traditional high bays.

This model supports a wide voltage range (120V–277V), ensuring compatibility with various electrical systems. It is cUL/UL Listed and DLC Premium, indicating compliance with widely recognized safety and performance standards and eligibility for certain utility incentives. The listed dimensions are 23.8 inches long, 17.5 inches wide, and 3.8 inches high, with a weight of approximately 14 pounds. Typical use considerations include placement in areas where a broad beam and clean cut-off are beneficial, with attention to the optional accessories like battery backup or additional motion sensors for enhanced control. The product ships as a single unit, with the specified mounting and pre-wired cord length provided in the included hardware.

Features:

• Leviton occupancy sensor (LS1) integrated
• 0-10V dimming for smooth, flicker-free control
• Damp location rated for harsh environments
• Wide beam with clean cut off and no shadows
• Hardware included: hangers, chains, hub mount kit, pre-wired cord
• Post-painted steel frame with rounded edge corners
• cUL/UL Listed and DLC Premium
