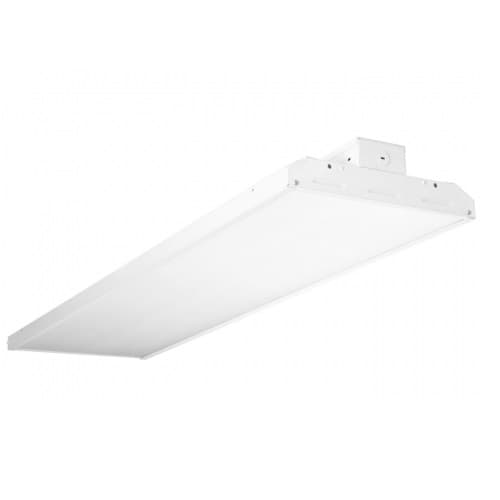

The TCP HB10500150MS1 is a high-output LED linear high bay designed for demanding ceiling installations in commercial, industrial, retail, or warehouse spaces. With a 105-watt LED array delivering up to 13,650 lumens at 5000K, this fixture provides a bright, crisp natural light intended for high ceiling environments where long-range visibility is essential. The unit features a robust all-metal, post-painted frame with smooth edges and a frosted lens to minimize glare while offering a wide beam with clean cut-off and no shadows in the illuminated area.
A key distinguishing feature is the MS1 sensor option and 0-10V dimming capability. The MS1 microwave motion sensor enables automatic occupancy-based control, and the dimming support allows for smooth, flicker-free light level adjustments in response to usage or ambient conditions. The fixture is damp location rated and designed for reliable operation in demanding industrial settings. It comes with hardware for straightforward installation, including hangers, chains, a conduit/stem mount, and a pre-wired cord, facilitating quick mounting at height. The fixture also supports optional battery backup or additional motion sensors, depending on project needs.
Compatibility and specifications reflected in the design indicate a 120–277V accepting range, with DLC Premium and cUL/UL Listings noted for compliance. The unit weighs 14 lb and has a compact footprint for a 105W line light, with dimensions of 23.8 inches long, 12.6 inches wide, and 3.8 inches high. This LED high bay is sized for dependable service in spaces that require high ceiling illumination, while the included components and mount options support flexible installation and ongoing maintenance. Always verify project wiring and dimming compatibility to ensure optimal performance with 0-10V controls and the MS1 sensor configuration.
Features:
- Microwave motion sensor option
- Angled LED design for wide beam and clean cut-off
- 0-10V dimming with smooth, no-flicker performance
- Damp location rated with glare-controlled frosted lens
- cUL/UL Listed and DLC Premium
- Includes mounting hardware: hangers, chains, conduit/stem kit, pre-wired cord
- 5000K, 13650 lm, 105W, 82 CRI
- Part Number:
- HB10500150MS1
- Bulb Included:
- Yes
- Certificate:
- cUL/UL Listed, DLC Premium
- Color Temperature:
- 5000K
- CRI:
- 82
- Dimmable:
- Yes
- Efficacy:
- 130 lm/W
- Lamp Type/Light Source:
- LED
- Life Hours:
- 50000
- Lumens:
- 13650 lm
- Maximum Voltage:
- 120V-277V
- Warranty:
- 5 Yr
- Wattage:
- 105W
- Weight:
- 14.00 lb
- UPC:
- 762148286257
- Package Size:
- Each
