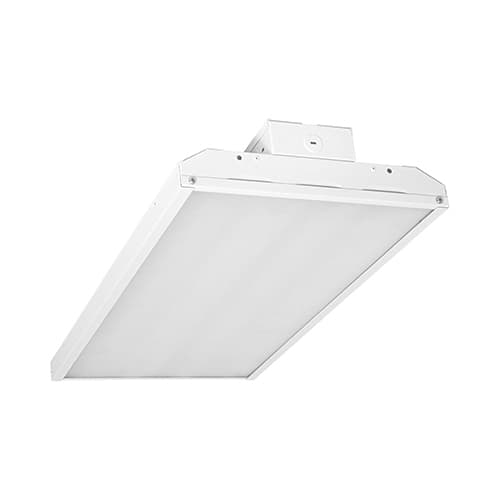

TCP HB15000150MS1 150W LED Linear High Bay w/ MS1 Sensor, 0-10V Dimming, 19500 lm, 120V-277V, 5000K

The TCP HB15000150MS1 is a high-bay LED lighting solution designed for industrial and commercial spaces with high ceilings, delivering bright, uniform illumination. This 150-watt luminaire outputs 19,500 lumens and uses a 5000K color temperature to provide a crisp, natural light quality suitable for work environments where visibility is critical. Built with an all-metal frame, the unit emphasizes durability and reliable performance for demanding locations. The HB series includes a MS1 sensor option and offers 0-10V dimming to reduce light output smoothly without flicker, supporting energy management and adaptable lighting levels.

Key construction and features include a post-painted steel housing with rounded edges and a frosted lens to minimize glare, helping to produce clean, shadow-free illumination. The design supports easy installation with included hardware such as two hangers, 5-ft chains, a hub mount kit for conduit or stem mounting, and a 6-ft pre-wired cord. A wide beam spread from the angled LED arrangement provides effective coverage with clean cut-off, which is beneficial for large-area applications like warehouses, retail floors, and manufacturing facilities. The fixture is damp-location rated, and standard options include battery backup or motion sensors for enhanced functionality and safety. The unit carries cUL/UL Listed and DLC Premium certifications, reflecting adherence to recognized safety and efficiency standards.

Practical use considerations include the 120V-277V universal input and a robust long-life rating, with an offered 50,000-hour expected life. Mounting and compatibility details are supported by the included hardware and the option to integrate with MS1 motion sensing and 0-10V dimming controls to tailor illumination levels to the space and occupancy. For maintenance and service, note the unit’s weight and dimensions to confirm space for installation and future servicing. This model may have extended lead times due to product availability and is not eligible for return or exchange.

Features:

• No shadows, smooth even lighting.
• Damp location rated.
• 0-10V smooth no flicker dimming.
• Wide beam spread with clean cut off.
• Optional battery backup or motion sensors available.
• Hardware included: hangers, chains, hub mount kit, pre-wired cord.
• Microwave motion sensor option available.
• Ideal for high-ceiling commercial/industrial spaces.
• Post painted steel frame with rounded edge corners.
• Standard frosted lens for glare control.
• cUL/UL Listed, DLC Premium.
