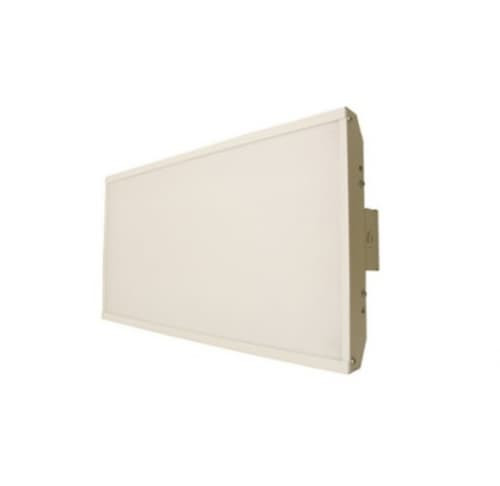

The TCP HB10500140MS1 is a high-efficiency LED linear high bay designed for demanding overhead lighting in commercial, industrial, retail, and warehouse environments. With a 105 W LED engine, it delivers up to 13,650 lumens and a 4000 K color temperature, producing a cool, clean light suitable for high-ceiling spaces where visibility and tone matter. The fixture features a post-painted steel frame with rounded edges and construction free of scalloping, riveted with a durable profile that supports long service life in rugged settings. A standard frosted lens helps control glare and deliver smooth, shadow-free illumination across large areas.
This model includes practical setup and mounting options, including a hardware package with two hanging systems, five-foot chains, a hub mount kit for conduit or stem mounting, and a six-foot pre-wired cord. The HB10500140MS1 is rated for damp locations, which broadens its applicability to spaces with varying humidity. The design supports 0-10 V dimming for smooth, flicker-free light level control and can be paired with optional accessories such as battery backup or motion sensors to adapt to occupancy or power reliability needs. The wide beam pattern, achieved through an angled LED layout, provides clean cut off and broad coverage without unwanted hot spots.
This TCP high bay is cUL/UL listed and DLC Premium qualified, signaling compliance with major safety and efficiency programs. It operates on 120 V–277 V and delivers a robust, long-lasting lighting solution with a claimed lifetime of around 50,000 hours. Weighing approximately 14 lb, the unit fits well into ceiling grids and supports typical industrial-grade installations. The 23.8 in (L) by 12.6 in (W) by 3.8 in (H) dimensions help determine space requirements and mounting clearances for installation planning.
Features:
- 13650 lm output at 105W for high-efficiency lighting
- 0-10V dimming with smooth flicker-free control
- MS1 motion sensor option for occupancy sensing
- Wide beam with clean cut-off and glare control
- Damp location rated for versatile environments
- cUL/UL Listed and DLC Premium
- Includes mounting hardware and pre-wired cord
- Part Number:
- HB10500140MS1
- Bulb Included:
- Yes
- Certificate:
- cUL/UL Listed, DLC Premium
- Color Temperature:
- 4000K
- CRI:
- 82
- Dimmable:
- Yes
- Efficacy:
- 130 lm/W
- Lamp Type/Light Source:
- LED
- Life Hours:
- 50000
- Lumens:
- 13650 lm
- Maximum Voltage:
- 120V-277V
- Warranty:
- 5 Yr
- Wattage:
- 105W
- Weight:
- 14.00 lb
- UPC:
- 762148286325
- Package Size:
- Each
