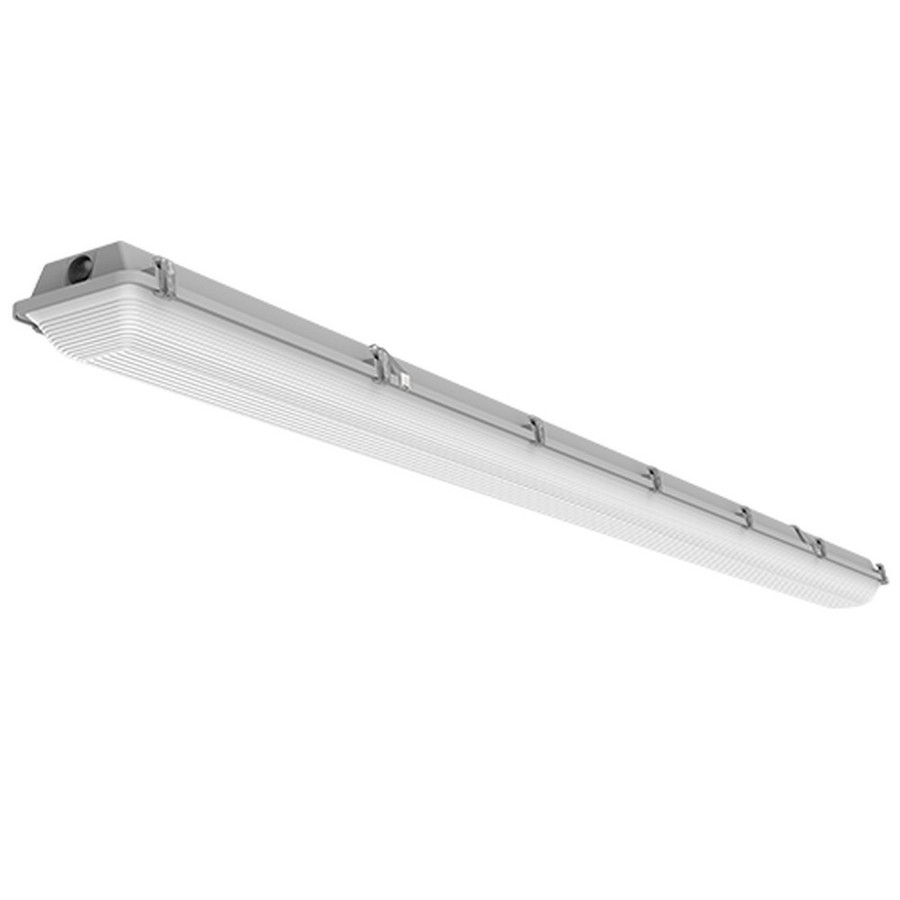

The ILP WTZ8-10L-U-50-RAFL is a robust narrow-body linear vapor-tight lighting fixture designed for challenging environments. This 76-watt unit delivers up to 10,540 lumens with a high efficacy that can reach around 138 lm/W, and it operates across a wide ambient temperature range from -40°F to 131°F, suitable for refrigerated spaces, extreme outdoors, and other demanding locations. The ribbed acrylic frosted lens helps diffuse light evenly while maintaining a compact profile appropriate for linear runs in corridors, service bays, or industrial facilities. With a 5-year warranty and DLC Premium qualification, it combines reliability with recognized energy performance and lower lifecycle costs.
Features:
- Robust & Durable Narrow Body Linear Vapor Tight
- Extremely High Efficacy up to 156 lm/W
- 2ft, 4ft & 8ft Fixture Lengths
- Lumen Packages Ranging 2,000–24,000
- Surface, Pendant, Wall & Suspended Mounting Options
- 0-10V Dimmable Driver (100%–10%)
- ETL Listed for Wet Location & DLC Premium Qualified
- Input Voltage:
- 120-277V
- Color Temp:
- 5000K
- Watt:
- 76
- Lumens:
- 10540
- Lumen Per Watt:
- 138
- CRI:
- >80
- Lens Type:
- Ribbed Acrylic Frosted
- ETL Listed:
- Yes
- DLC:
- Premium
- Operating Temperature Range:
- -40ºF to 131ºF
- IP Rating:
- IP65, IP66, IP67
- Average Rated Life:
- 100,000 hrs
- Warranty:
- 5 Years
- Package Size:
- Each
