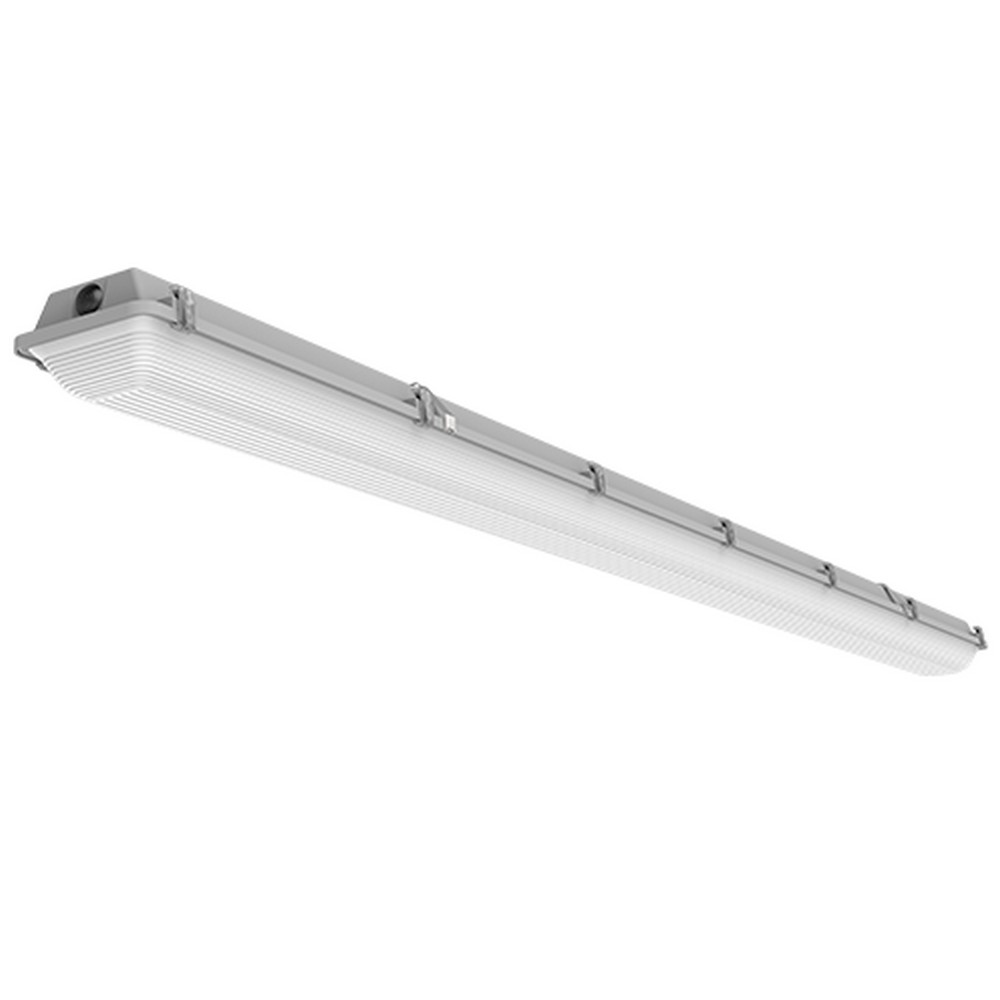

The ILP WTZ8-12L-U-50-RAFL is a robust linear vapor-tight LED fixture designed for demanding environments. Its narrow body profile houses a high-efficiency LED engine, delivering 11793 lumens at 5000K with an impressive efficiency of 145 lm/W. This luminaire is built for reliability in wet and challenging settings, featuring an IP65/IP66/IP67 rating and an operating temperature range from -40°F to 131°F, which helps ensure consistent performance across cold storage, outdoors, and industrial spaces. A ribbed acrylic frosted lens provides diffusion to minimize glare while preserving lumen output, and the unit is backed by a 5-year warranty for added peace of mind. The fixture is DLC Premium qualified and ETL listed for wet locations, aligning with common energy and safety program expectations in facilities.
Constructed for versatile installation, the WTZ8-12L-U-50-RAFL offers multiple mounting options, including surface, pendant, wall, and suspended configurations, making it adaptable to a variety of ceiling heights and layouts. The fixture supports 2ft, 4ft, and 8ft lengths and a wide lumen package range from 2,000 to 24,000 lumens, enabling users to select the appropriate brightness for specific areas without over-illuminating. A 0-10V dimmable driver (0%–100%) provides lighting control for energy savings and task-specific needs. With a fiberglass body, F1 weatherability, a 5VA flame rating, and the DesignLights Consortium Premium qualification, this luminaire is positioned as a dependable choice for demanding spaces that require durable construction and efficient performance. The product’s 120–277V (commonly used in commercial lighting circuits) electrical input supports flexible integration into existing electrical systems, while the included warranty and lifecycle expectations help with long-term maintenance planning.
Features:
- Robust & Durable Narrow Body Linear Vapor Tight
- Extremely High Efficacy up to 156 lm/W
- 2ft, 4ft & 8ft Fixture Lengths
- Surface, Pendant, Wall & Suspended Mounting Options
- 0-10V Dimmable Driver (100%–10%)
- ETL Listed for Wet Location
- DLC Premium Qualified Luminaire
- Input Voltage:
- 120-277V
- Color Temp:
- 5000K
- Watt:
- 81
- Lumens:
- 11793
- Lumen Per Watt:
- 145
- CRI:
- >80
- Lens Type:
- Ribbed Acrylic Frosted
- ETL Listed:
- Yes
- DLC:
- Premium
- Operating Temperature Range:
- -40ºF to 131ºF
- IP Rating:
- IP65, IP66, IP67
- Average Rated Life:
- 100,000 hrs
- Warranty:
- 5 Years
- Package Size:
- Each
