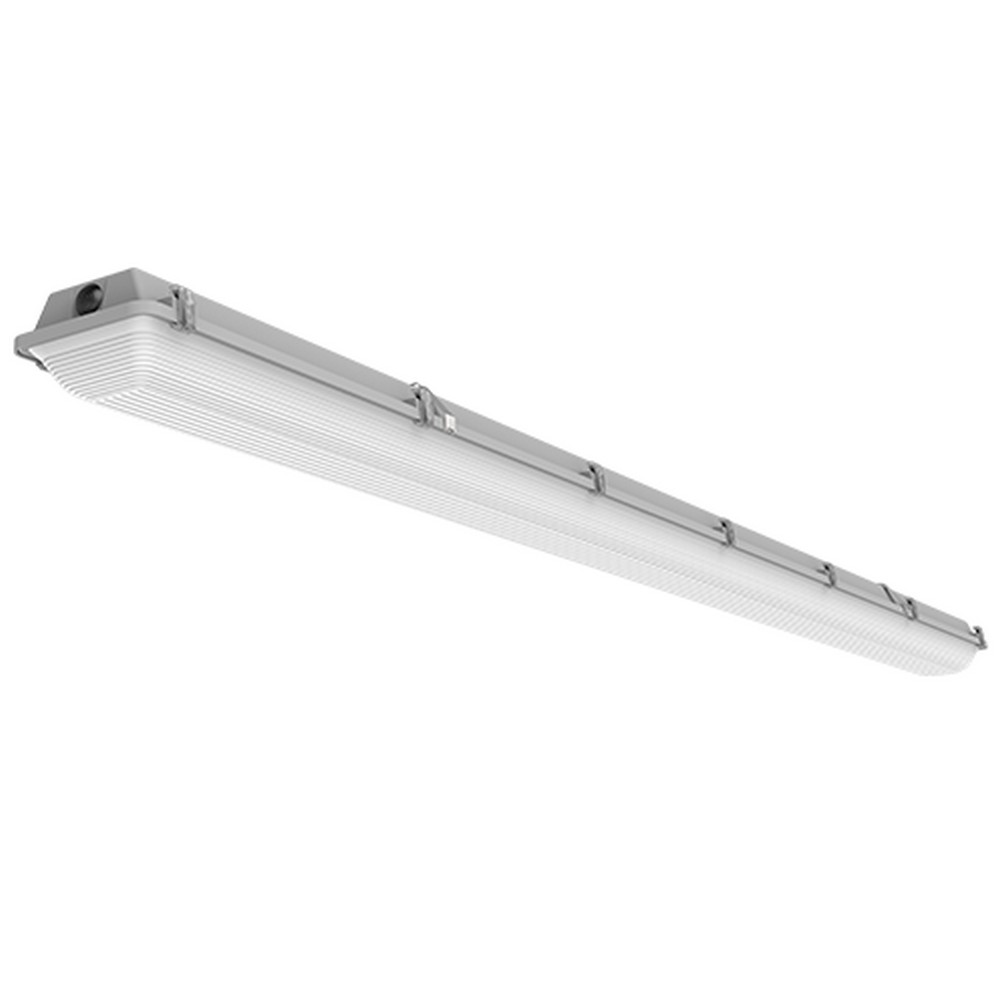

The ILP WTZ8-24L-U-50-RAFL is a robust linear LED fixture designed for challenging, industrial environments where vapor-tight protection and reliable performance are essential. This narrow-body luminaire delivers high output for large-area or long-run applications, with a 162-watt input and approximately 23,587 lumens at a 5000K color temperature, achieving strong lumen density in a compact footprint. The ribbed acrylic frosted lens helps diffuse light evenly while maintaining transparency for good optical efficiency, and the fixture is built to operate across a wide ambient range, from -40°F to 131°F, making it suitable for exposure to cold manufacturing floors or heat-exposed service bays. An ETL-listed wet-location rating and IP65/IP66/IP67 protection underscore its suitability for moisture, dust, and wash-down environments, aligning with common industrial codes for durable facility illumination. In addition to its high efficacy of up to around 146–156 lm/W (as supported by its performance data), the unit is DLC Premium-qualified, which can influence energy incentive eligibility in many facilities. The design accommodates multiple mounting options—surface, pendant, wall, and suspended—facilitating flexible installation in corridors, workstations, or service spaces where ceiling access or structural constraints vary. Its 0-10V dimmable driver provides simple, continuous control from 100% down to 10% for tuned lighting levels, and a 5-year warranty offers reassurance for sustained operation. This model is a MADE TO ORDER item with an approximate 3–4 week lead time, signaling tailored production to meet project schedules.
Features:
- High efficacy up to 156 lm/W
- 2 ft, 4 ft, and 8 ft lengths
- Lumen packages up to 24,000
- Multiple mounting options (surface, pendant, wall, suspended)
- 0-10V dimmable driver
- ETL Listed for Wet Location
- DLC Premium Qualified
- Input Voltage:
- 120-277V
- Color Temp:
- 5000K
- Watt:
- 162
- Lumens:
- 23587
- Lumen Per Watt:
- 146
- CRI:
- >80
- Lens Type:
- Ribbed Acrylic Frosted
- ETL Listed:
- Yes
- DLC:
- Premium
- Operating Temperature Range:
- -40ºF to 131ºF
- IP Rating:
- IP65, IP66, IP67
- Average Rated Life:
- 100,000 hrs
- Warranty:
- 5 Years
- Package Size:
- Each
