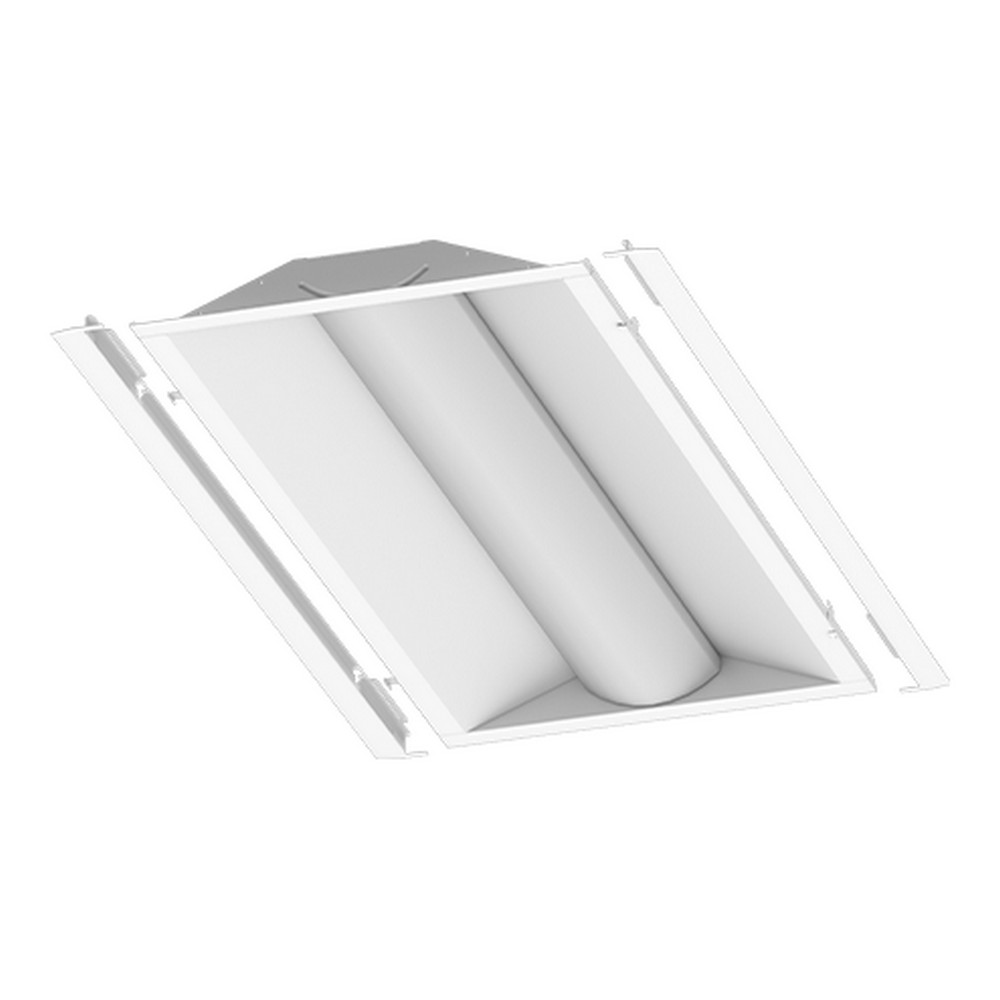

The ILP LANCE24-62L-U-940 is a versatile troffer retrofit kit designed to convert recessed luminaires to modern LED performance. This one-piece unit combines a lightweight aluminum body with a matte white finish and a high-transmission extruded PMMA frosted acrylic lens to deliver efficient, dependable illumination in 1×4, 2×2, and 2×4 layouts. Aimed at simplifying installation, the kit features two universal mounting brackets and an average install time of under three minutes, making it a practical upgrade for commercial ceiling grids. The design supports air return options and can be paired with advanced wireless control capabilities, enabling flexible integration into existing lighting control schemes. The unit is available with CCT options in the 3000K–5000K range and CRI choices of 80 or 90, allowing alignment with the desired color rendering and ambient quality for different spaces. It is G-rated with a calculated L70 lifespan exceeding 100,000 hours, reflecting long-term performance expectations with a 0-10V dimmable driver for dimming compatibility. The kit is ETL listed for UL1598C and carries a standard 5-year warranty, with an optional 10-year warranty to extend coverage.
This retrofit solution provides substantial delivered lumens and high efficacy, supporting a wide range of retrofit projects where existing fixtures need updated energy efficiency and improved light quality. It delivers 5716 lumens at 46 watts, achieving approximately 119 lumens per watt with a 4000K color temperature and CRI up to 90, which helps maintain accurate color representation in typical commercial environments. The product is offered under the ILP brand with part number LANCE24-62L-U-940 and is designed for 120–277V input, ensuring compatibility with common electrical infrastructures. When selecting a retrofit kit, consider the desired lumen output, color temperature, and control options to match space requirements and existing building systems.
Features:
- Troffer retrofit kit for recessed lighting
- One-piece unit with two universal mounting brackets
- Average install time < 3 minutes
- Lightweight aluminum matte white finish body
- High transmission PMMA frosted acrylic lens
- 0-10V dimmable driver
- 1x4, 2x2, 2x4 sizes; 2300–6200 delivered lumens
- Input Voltage:
- 120-277V
- Color Temp:
- 4000K
- Watt:
- 46
- Lumens:
- 5716
- Lumen Per Watt:
- 119
- CRI:
- >90
- Finish:
- White
- ETL Listed:
- Yes
- Average Rated Life:
- 100,000 hrs
- Warranty:
- 5 Years
- Package Size:
- Each
