Name: ILP LANCE24-62L-U-40 Lance Volumetric Troffer Retrofit Kit LED Light 4000K, 46 Watt, 6222 Lumens
Brand: ILP
SKU: LANCE24-62L-U-40
Price: 158.98 USD
Availability: InStock

ILP LANCE24-62L-U-40 Lance Volumetric Troffer Retrofit Kit LED Light 4000K, 46 Watt, 6222 Lumens

ILP

SKU:

LANCE24-62L-U-40

$158.98

/ Each

Weight:

24.00 LBS

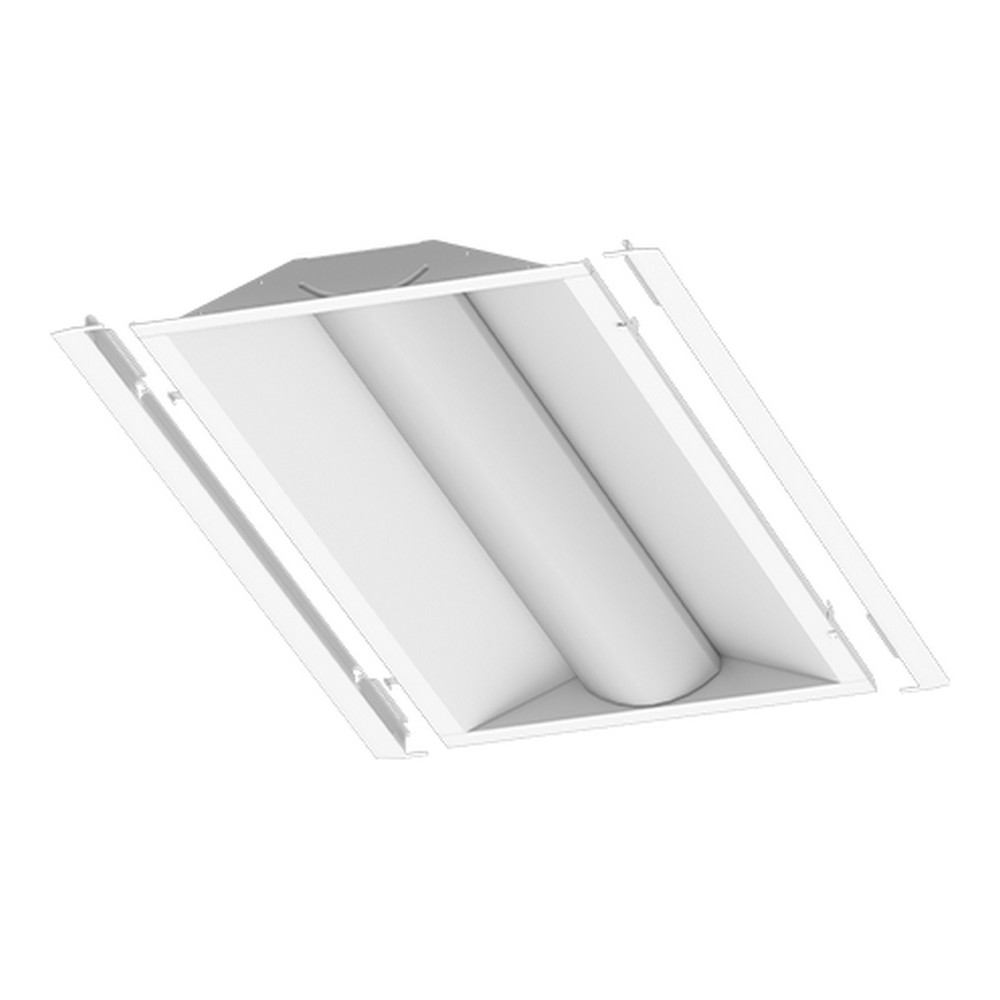

The ILP LANCE24-62L-U-40 is a retrofit LED troffer kit designed for recessed ceiling installations. It comes as a one-piece unit featuring two universal mounting brackets to simplify installation, with an average setup time of under three minutes. The lightweight aluminum housing is finished in matte white and paired with a high-transmission extruded PMMA frosted acrylic lens, which helps deliver bright, even illumination in commercial ceiling layouts. The kit supports air return options and offers advanced wireless control compatibility, providing flexible integration into modern building automation or lighting control schemes. Available in common grid configurations (1x4, 2x2, and 2x4), this retrofit solution delivers 2,300 to 6,200 delivered lumens with high efficacy up to 155 lm/W, at color temperatures ranging from 3000K to 5000K and CRI options of 80 or 90. A 0-10V dimmable driver enables smooth brightness adjustments to match space needs and occupancy patterns.

Designed for versatility and long service life, the unit is sized to retrofit standard 1x4, 2x2, and 2x4 troffer footprints, supporting a wide range of commercial applications where recessed lighting is preferred. The product is ETL listed for UL1598C and has DesignLights Consortium Premium qualification, indicating compatibility with broader energy-efficiency programs and performance benchmarks. With a calculated L70 lifespan exceeding 100,000 hours, the system emphasizes reliability in environments requiring durable, maintenance-friendly lighting. The package lists a standard 5-year warranty with the option to extend to 10 years, reflecting confidence in its long-term operation. Power input is 120-277V, and the model specific data notes a 46W draw and 6,222 lumens at a 4000K color temperature, aligning with typical mid-range LED troffer performance for balanced brightness and efficiency.

Features:

Troffer Retrofit Kit for recessed lighting applications
One-piece unit with two universal mounting brackets
2 configurations: 1x4, 2x2, 2x4
Lightweight aluminum matte white finish
High transmission PMMA frosted acrylic lens
0-10V dimmable driver
ETL Listed for UL1598C; DLC Standard; DesignLights Consortium Premium Qualified

Color Temperature	Description
2700K – Warm White	Soft, warm white light with a yellowish tone, ideal for comfortable and inviting environments.
3000K – Warm White	Warm white illumination suitable for offices, reception areas, and commercial interiors.
3500K – Neutral White	Balanced white light offering a comfortable appearance for offices, classrooms, and retail spaces.
4000K – Cool White	Clean, neutral white light commonly used in warehouses, offices, and industrial facilities.
4500K – Cool White	Crisp white illumination suitable for workshops, commercial buildings, and general task lighting.
5000K – Daylight	Bright-looking, daylight-like white light commonly used in manufacturing, warehouses, and work areas.
5700K – Daylight White	Cool, daylight-like illumination suitable for industrial facilities and outdoor lighting.
6000K – Cool Daylight	Cool white light with a slight bluish tone, suitable for industrial and commercial applications.
6500K – Daylight	Very cool, daylight-like white light often used in inspection areas and specialized workspaces.
Selectable CCT	Allows users to select between preset color temperatures to accommodate different lighting preferences.
Tunable White	Provides adjustable color temperature across a supported range for flexible lighting applications.

Note: Capacity includes the worker, clothing, tools, and equipment. OSHA compliance depends on the complete fall protection system and its intended use, not the weight rating alone.

CRI Rating	Description
CRI 70	Provides basic color rendering suitable for warehouses, storage areas, and general industrial lighting where precise color identification is not critical.
CRI 80	Delivers good color accuracy for offices, warehouses, manufacturing facilities, and everyday commercial lighting applications.
CRI 82	Offers good color rendering for commercial and industrial environments, helping maintain natural-looking colors and clear visibility.
CRI 85	Provides enhanced color accuracy for retail spaces, offices, workshops, and applications where color distinction is important.
CRI 90	Delivers excellent color rendering for applications requiring accurate color identification, including inspection areas, retail displays, and detailed workspaces.
CRI 95	Offers exceptional color accuracy for specialized applications such as color inspection, photography, and precision manufacturing.
CRI 98	Provides near-reference color rendering accuracy, ideal for demanding applications requiring highly accurate color reproduction and visual evaluation.
CRI 100	Represents the maximum CRI score, indicating color rendering equivalent to the applicable reference illuminant under the CRI measurement system.

ETL Listed products have been independently tested and certified by Intertek to meet applicable North American safety standards, including UL and CSA standards where applicable. The ETL Listed mark indicates that the product meets established safety requirements and is subject to ongoing certification oversight. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, ETL certification helps demonstrate compliance with recognized electrical and product safety standards.

Input Voltage:: 120-277V
Color Temp:: 4000K
Watt:: 46
Lumens:: 6222
Lumen Per Watt:: 137
CRI:: >80
Finish:: White
ETL Listed:: Yes
DLC:: Standard
Average Rated Life:: 100,000 hrs
Warranty:: 5 Years
Package Size:: Each

What materials and construction features does the ILP LANCE24-62L-U-40 Lance Volumetric Troffer Retrofit Kit include?

The kit features a lightweight aluminum body with a matte white finish and a high-transmission extruded PMMA frosted acrylic lens, designed for recessed lighting applications with two universal mounting brackets for installation.

What are the key specifications for the ILP LANCE24-62L-U-40, including power, lumens, and color temperature?

It is a 46 W LED retrofit kit delivering 6,222 lumens at 4000K (CCT) with a high efficacy up to 137 lm/W, and suitable for 120-277V input.

Does the ILP LANCE24-62L-U-40 include dimming or driver features?

Yes, it includes a 0-10V dimmable driver for dimming control.

What installation features and compatibility does this retrofit kit offer?

It is a one-piece unit with two universal mounting brackets, designed for average installation times under three minutes, and it is available in 1×4, 2×2, and 2×4 sizes.

What warranties and certifications are associated with this product?

The kit carries a standard 5-year warranty with an optional 10-year warranty, and it is ETL Listed for UL1598C. It is also DesignLights Consortium Premium Qualified.
