Name: ILP LANCE24-54L-U-940 Lance Volumetric Troffer Retrofit Kit LED Light 4000K, 40 Watt, 4588 Lumens
Brand: ILP
SKU: LANCE24-54L-U-940
Price: 165.89 USD
Availability: OutOfStock

ILP LANCE24-54L-U-940 Lance Volumetric Troffer Retrofit Kit LED Light 4000K, 40 Watt, 4588 Lumens

ILP

SKU:

LANCE24-54L-U-940

$165.89

/ Each

Weight:

24.00 LBS

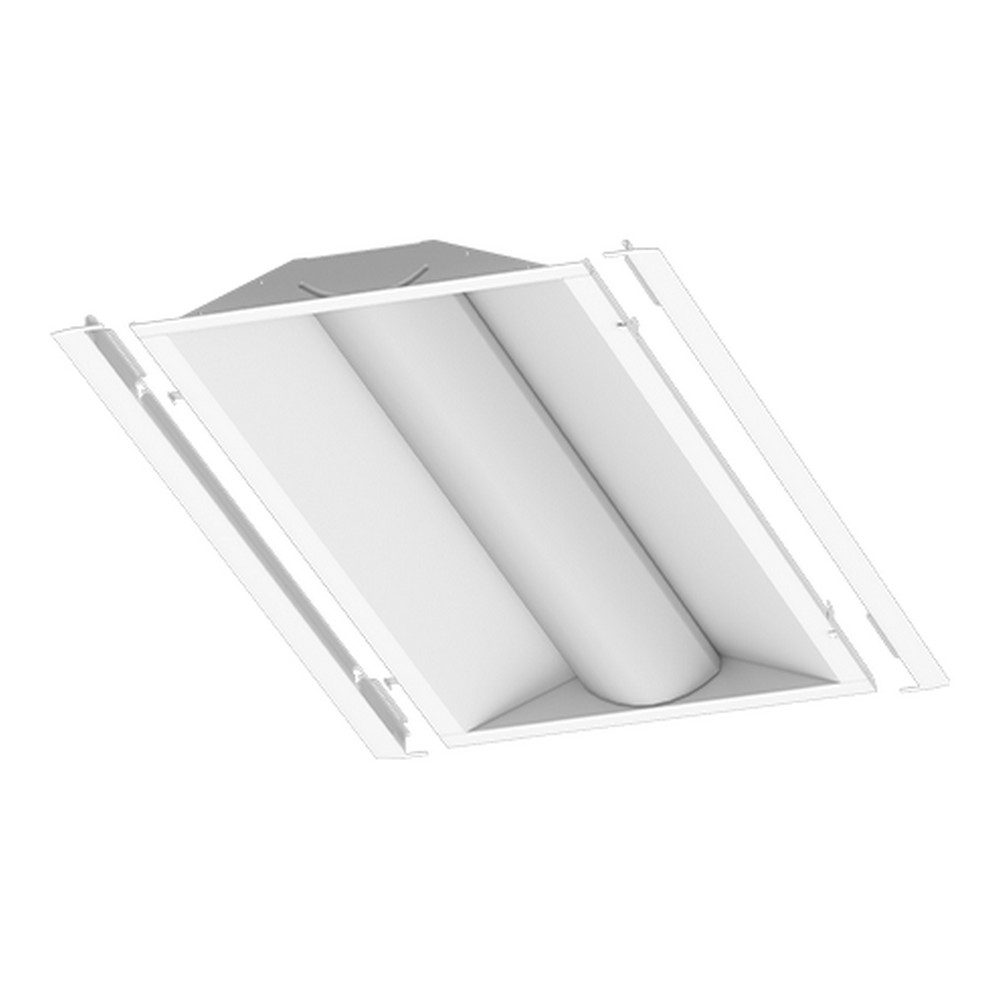

The ILP LANCE24-54L-U-940 is a recessed troffer retrofit kit designed to convert existing 1×4, 2×2, or 2×4 luminaires to efficient LED illumination. This one-piece unit uses a lightweight aluminum housing finished in matte white and incorporates a high-transmission extruded PMMA frosted acrylic lens to deliver consistent light output. It is offered with air return options and supports advanced wireless control capabilities, making it suitable for retrofit projects that require simplified installation and modern control integration. The kit is rated at 40 watts and provides 4,588 delivered lumens at a 4000K color temperature with a 126 lm/W efficiency and 90+ CRI, supporting brighter, more accurate color rendering for general lighting tasks. With a calculated L70 greater than 100,000 hours, the fixture emphasizes long-term reliability in commercial and institutional environments. A 0-10V dimmable driver enables compatibility with standard lighting controls, while ETL listing for UL1598C and DesignLights Consortium Premium qualification reflect adherence to recognized safety and performance benchmarks.

This retrofit kit is designed for fast installation, featuring two universal mounting brackets and an average installation time of less than three minutes, which can help minimize labor during upgrades. The fixture is available in a single 40W package, with dimensions and mounting compatibility aligned to common recessed troffer openings. The 3000K–5000K color-temperature range and optional high CRI (80–90) options provide flexibility to match existing lighting schemes and enhance visual tasks. When selecting this kit, consider the existing luminaire size and mounting space, required dimming control, and desired color temperature to ensure a seamless retrofit and predictable performance.

Features:

Troffer Retrofit Kit for recessed lighting applications
One-piece unit with two universal mounting brackets
Lightweight aluminum matte white finish body
High transmission PMMA frosted acrylic lens
0-10V dimmable driver
AC input 120-277V
4 sizes supported: 1×4, 2×2, 2×4

Color Temperature	Description
2700K – Warm White	Soft, warm white light with a yellowish tone, ideal for comfortable and inviting environments.
3000K – Warm White	Warm white illumination suitable for offices, reception areas, and commercial interiors.
3500K – Neutral White	Balanced white light offering a comfortable appearance for offices, classrooms, and retail spaces.
4000K – Cool White	Clean, neutral white light commonly used in warehouses, offices, and industrial facilities.
4500K – Cool White	Crisp white illumination suitable for workshops, commercial buildings, and general task lighting.
5000K – Daylight	Bright-looking, daylight-like white light commonly used in manufacturing, warehouses, and work areas.
5700K – Daylight White	Cool, daylight-like illumination suitable for industrial facilities and outdoor lighting.
6000K – Cool Daylight	Cool white light with a slight bluish tone, suitable for industrial and commercial applications.
6500K – Daylight	Very cool, daylight-like white light often used in inspection areas and specialized workspaces.
Selectable CCT	Allows users to select between preset color temperatures to accommodate different lighting preferences.
Tunable White	Provides adjustable color temperature across a supported range for flexible lighting applications.

Note: Capacity includes the worker, clothing, tools, and equipment. OSHA compliance depends on the complete fall protection system and its intended use, not the weight rating alone.

CRI Rating	Description
CRI 70	Provides basic color rendering suitable for warehouses, storage areas, and general industrial lighting where precise color identification is not critical.
CRI 80	Delivers good color accuracy for offices, warehouses, manufacturing facilities, and everyday commercial lighting applications.
CRI 82	Offers good color rendering for commercial and industrial environments, helping maintain natural-looking colors and clear visibility.
CRI 85	Provides enhanced color accuracy for retail spaces, offices, workshops, and applications where color distinction is important.
CRI 90	Delivers excellent color rendering for applications requiring accurate color identification, including inspection areas, retail displays, and detailed workspaces.
CRI 95	Offers exceptional color accuracy for specialized applications such as color inspection, photography, and precision manufacturing.
CRI 98	Provides near-reference color rendering accuracy, ideal for demanding applications requiring highly accurate color reproduction and visual evaluation.
CRI 100	Represents the maximum CRI score, indicating color rendering equivalent to the applicable reference illuminant under the CRI measurement system.

ETL Listed products have been independently tested and certified by Intertek to meet applicable North American safety standards, including UL and CSA standards where applicable. The ETL Listed mark indicates that the product meets established safety requirements and is subject to ongoing certification oversight. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, ETL certification helps demonstrate compliance with recognized electrical and product safety standards.

Input Voltage:: 120-277V
Color Temp:: 4000K
Watt:: 40
Lumens:: 4588
Lumen Per Watt:: 126
CRI:: >90
Finish:: White
ETL Listed:: Yes
Average Rated Life:: 100,000 hrs
Warranty:: 5 Years
Package Size:: Each

What materials and construction features does the ILP LANCE24-54L-U-940 use?

The kit features a lightweight aluminum body with a matte white finish and a high-transmission extruded PMMA frosted acrylic lens.

What are the key technical specifications for this LED retrofit kit?

It is a 40 W unit with 4588 delivered lumens, 4000K CCT, 126 lm/W, CRI 90+, and an input voltage range of 120-277V; rated life is 100,000 hours and it is 0-10V dimmable.

What installation features are included with the LANCE24-54L-U-940?

It is a one-piece unit with two universal mounting brackets and an average installation time of less than three minutes.

What sizes are available and what applications is this kit intended for?

Available in 1×4, 2×2, and 2×4 sizes for recessed lighting applications.

Does this retrofit kit have any certifications or qualified designations?

The kit is ETL listed for UL1598C and is DesignLights Consortium Premium Qualified Luminaire.
