Name: ILP LANCE24-30L-U-940 Lance Volumetric Troffer Retrofit Kit LED Light 4000K, 21 Watt, 2856 Lumens
Brand: ILP
SKU: LANCE24-30L-U-940
Price: 165.89 USD
Availability: OutOfStock

ILP LANCE24-30L-U-940 Lance Volumetric Troffer Retrofit Kit LED Light 4000K, 21 Watt, 2856 Lumens

ILP

SKU:

LANCE24-30L-U-940

$165.89

/ Each

Weight:

24.00 LBS

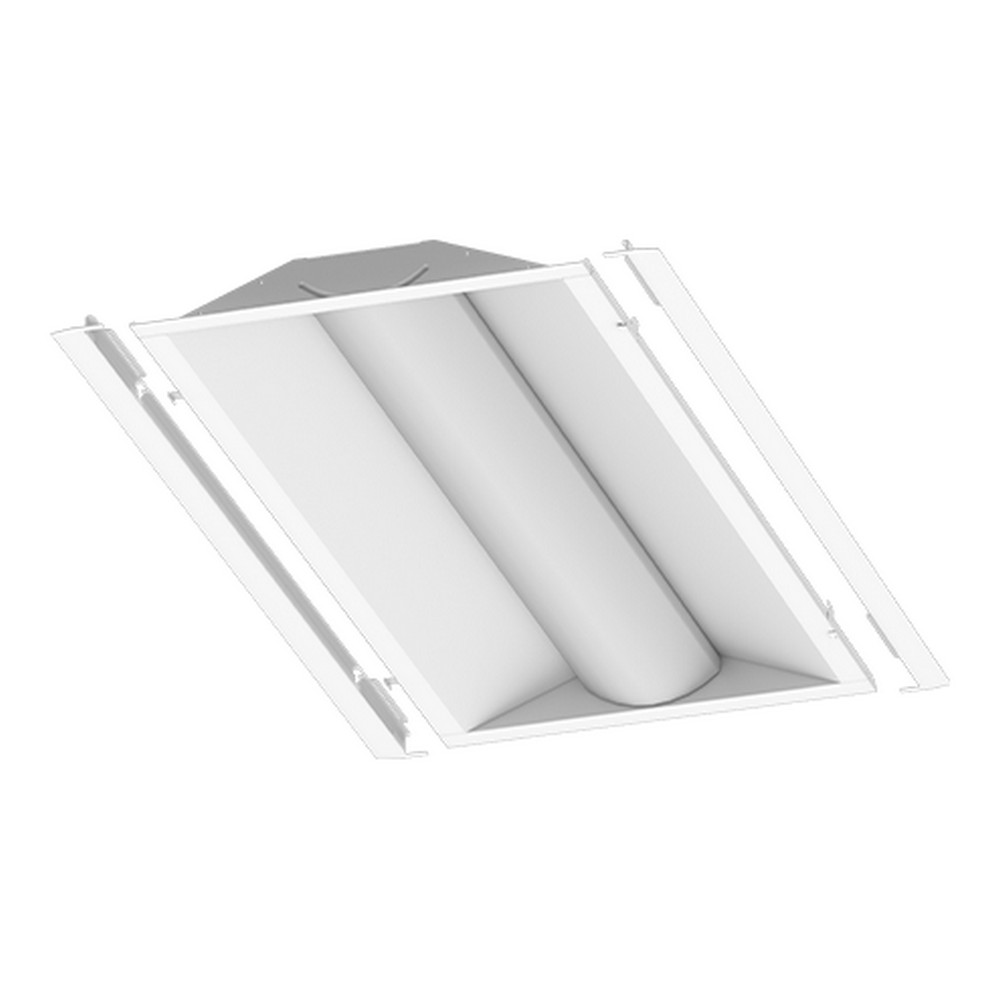

The ILP LANCE24-30L-U-940 is a versatile LED troffer retrofit kit designed for recessed lighting installations. This one-piece unit uses a lightweight aluminum housing with a matte white finish and a high-transmission extruded PMMA frosted acrylic lens, helping to deliver consistent light with reduced glare in available 1×4, 2×2, and 2×4 configurations. The kit is engineered for fast installation, featuring two universal mounting brackets and an average install time of less than three minutes, making it suitable for rapid upgrades in retrofit projects.

Built for performance, the LANCE24-30L-U-940 provides delivered lumens in the range of 2,300 to 6,200 and delivers up to 155 lumens per watt, depending on configuration. It supports a 3000K–5000K color temperature spectrum and offers 80 and 90 CRI options to meet varied lighting requirements. The unit includes a 0-10V dimmable driver and is available with air return options and advanced wireless control capabilities, enabling flexible integration into modern, energy-efficient lighting systems. With a calculated L70 lifespan beyond 100,000 hours and ETL listing for UL1598C, this retrofit kit is positioned for long-term service in commercial environments.

Compatibility and maintenance considerations are straightforward: the kit is offered in standard LED driver configurations and is designed to be used in recessed troffer applications. Its 120–277V input range supports common building power supplies, while the 5-year warranty (standard) and optional 10-year warranty provide added assurance. This product is DesignLights Consortium Premium qualified, aligning it with energy performance standards used in many procurement programs. Users should verify dimming compatibility with their control systems and confirm the 2,300–6,200 lumen range matches the lighting level requirements of the target space.

Features:

Troffer Retrofit Kit for recessed lighting applications
One-piece unit with two universal mounting brackets
Average install time less than 3 minutes
Lightweight aluminum matte white finish body
High transmission extruded PMMA frosted acrylic lens

Color Temperature	Description
2700K – Warm White	Soft, warm white light with a yellowish tone, ideal for comfortable and inviting environments.
3000K – Warm White	Warm white illumination suitable for offices, reception areas, and commercial interiors.
3500K – Neutral White	Balanced white light offering a comfortable appearance for offices, classrooms, and retail spaces.
4000K – Cool White	Clean, neutral white light commonly used in warehouses, offices, and industrial facilities.
4500K – Cool White	Crisp white illumination suitable for workshops, commercial buildings, and general task lighting.
5000K – Daylight	Bright-looking, daylight-like white light commonly used in manufacturing, warehouses, and work areas.
5700K – Daylight White	Cool, daylight-like illumination suitable for industrial facilities and outdoor lighting.
6000K – Cool Daylight	Cool white light with a slight bluish tone, suitable for industrial and commercial applications.
6500K – Daylight	Very cool, daylight-like white light often used in inspection areas and specialized workspaces.
Selectable CCT	Allows users to select between preset color temperatures to accommodate different lighting preferences.
Tunable White	Provides adjustable color temperature across a supported range for flexible lighting applications.

Note: Capacity includes the worker, clothing, tools, and equipment. OSHA compliance depends on the complete fall protection system and its intended use, not the weight rating alone.

CRI Rating	Description
CRI 70	Provides basic color rendering suitable for warehouses, storage areas, and general industrial lighting where precise color identification is not critical.
CRI 80	Delivers good color accuracy for offices, warehouses, manufacturing facilities, and everyday commercial lighting applications.
CRI 82	Offers good color rendering for commercial and industrial environments, helping maintain natural-looking colors and clear visibility.
CRI 85	Provides enhanced color accuracy for retail spaces, offices, workshops, and applications where color distinction is important.
CRI 90	Delivers excellent color rendering for applications requiring accurate color identification, including inspection areas, retail displays, and detailed workspaces.
CRI 95	Offers exceptional color accuracy for specialized applications such as color inspection, photography, and precision manufacturing.
CRI 98	Provides near-reference color rendering accuracy, ideal for demanding applications requiring highly accurate color reproduction and visual evaluation.
CRI 100	Represents the maximum CRI score, indicating color rendering equivalent to the applicable reference illuminant under the CRI measurement system.

ETL Listed products have been independently tested and certified by Intertek to meet applicable North American safety standards, including UL and CSA standards where applicable. The ETL Listed mark indicates that the product meets established safety requirements and is subject to ongoing certification oversight. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, ETL certification helps demonstrate compliance with recognized electrical and product safety standards.

Input Voltage:: 120-277V
Color Temp:: 4000K
Watt:: 21
Lumens:: 2856
Lumen Per Watt:: 137
CRI:: >90
Finish:: White
ETL Listed:: Yes
Average Rated Life:: 100,000 hrs
Warranty:: 5 Years
Package Size:: Each

What materials and construction features define the ILP LANCE24-30L-U-940 Lance Volumetric Troffer Retrofit Kit?

The kit uses a lightweight aluminum body with a matte white finish and a high transmission extruded PMMA frosted acrylic lens. It is a one-piece unit with two universal mounting brackets designed for recessed lighting applications.

What are the key technical specifications for this retrofit kit (voltage, color temperature, wattage, and lumen output)?

Input Voltage is 120-277V, Color Temperature is 4000K, Wattage is 21 W, and delivered lumens are 2856 (Lumen per Watt 137).

What about dimming and control features?

The kit includes a 0-10V dimmable driver and offers advanced wireless control options as part of its features.

What sizes are available and what is the warranty coverage?

Available in 1×4, 2×2, and 2×4 sizes. It comes with a standard 5-year warranty, with an optional 10-year warranty.

What certifications or eligibility does this luminaire have?

It is ETL Listed for UL1598C and DesignLights Consortium Premium Qualified Luminaire.
