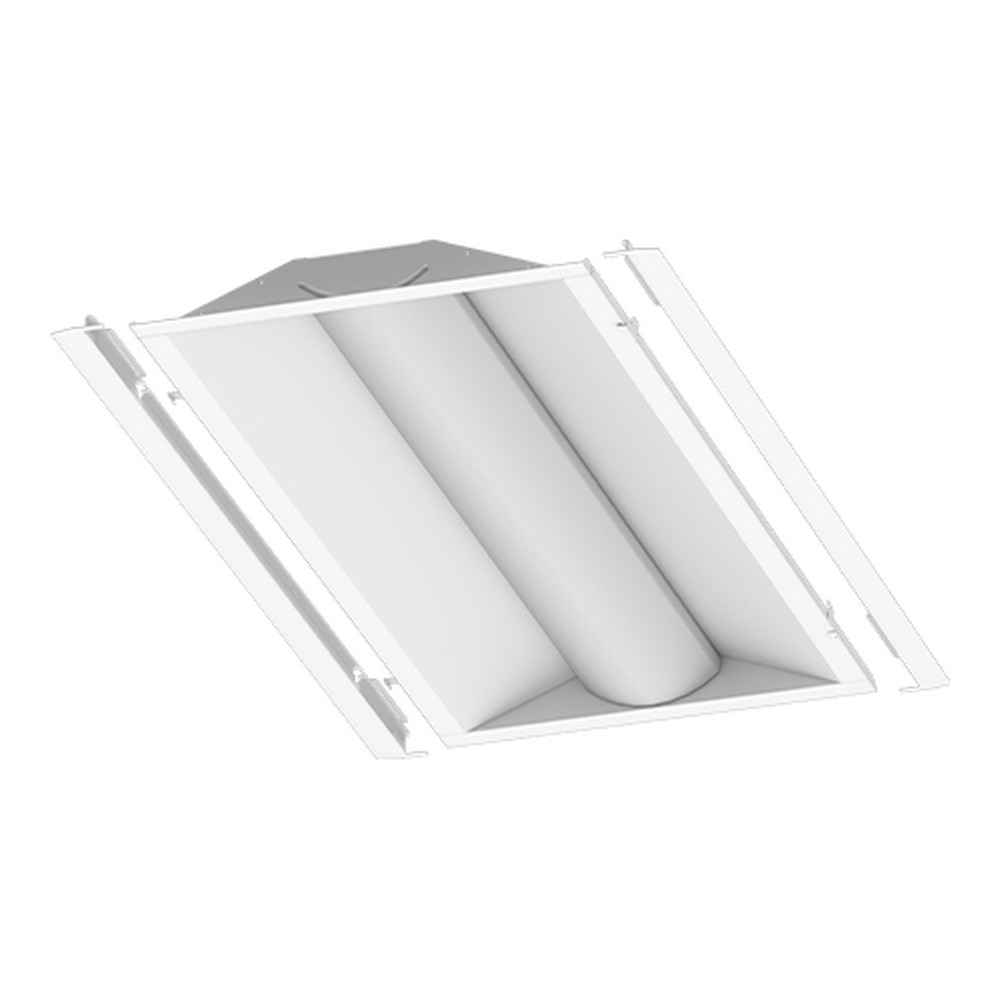

Name: ILP LANCE24-54L-U-40 Lance Volumetric Troffer Retrofit Kit LED Light 4000K, 40 Watt, 5373 Lumens
Brand: ILP
SKU: LANCE24-54L-U-40
Price: 157.25 USD
Availability: InStock

ILP LANCE24-54L-U-40 Lance Volumetric Troffer Retrofit Kit LED Light 4000K, 40 Watt, 5373 Lumens

ILP

SKU:

LANCE24-54L-U-40

$157.25

/ Each

Weight:

24.00 LBS

The ILP LANCE24-54L-U-40 is a one-piece troffer retrofit kit designed for recessed lighting installations, delivering a long-life LED solution with streamlined installation. Its lightweight aluminum body features a matte white finish and a high-transmission extruded PMMA frosted acrylic lens, which helps optimize light output and diffusion in downlighting applications. The kit supports multiple footprint configurations—1×4, 2×2, and 2×4—so it can adapt to a range of standard grid ceilings while maintaining consistent performance. An average installation time under three minutes reflects the product’s universal mounting brackets and simple integration with existing fixtures. The unit is available with air return options and advanced wireless control capabilities, enabling flexible integration with building management systems and dimming strategies through a 0-10V driver for compatible controls. Documented performance includes delivered lumens in the 2,300 to 6,200 range and high efficacy up to 155 lm/W, depending on configuration, with color temperatures spanning 3000K to 5000K and CRI options of 80 or 90. Its calculated L70 lifespan exceeds 100,000 hours, underscoring a long service life for maintained illumination in commercial environments. The kit is ETL listed for UL1598C and is DAC Premium qualified by DesignLights Consortium, aligning with recognized safety and efficiency standards for recessed lighting retrofits. Each unit is backed by a standard 5-year warranty, with an optional extension to 10 years, providing assurance for ongoing maintenance planning.

Features:

One-piece Troffer Retrofit Kit for recessed lighting
Fast install time: < 3 minutes
Lightweight aluminum matte white body
PMMA frosted acrylic lens with high transmission
2 universal mounting brackets
1×4, 2×2, 2×4 configurations
0-10V dimmable
Up to 5373 lumens, 136 lm/W, 4000K
CRI options: 80/90
ETL Listed and DLC Premium Qualified
Warranty: 5 Years (standard); 10 Years optional

Color Temperature	Description
2700K – Warm White	Soft, warm white light with a yellowish tone, ideal for comfortable and inviting environments.
3000K – Warm White	Warm white illumination suitable for offices, reception areas, and commercial interiors.
3500K – Neutral White	Balanced white light offering a comfortable appearance for offices, classrooms, and retail spaces.
4000K – Cool White	Clean, neutral white light commonly used in warehouses, offices, and industrial facilities.
4500K – Cool White	Crisp white illumination suitable for workshops, commercial buildings, and general task lighting.
5000K – Daylight	Bright-looking, daylight-like white light commonly used in manufacturing, warehouses, and work areas.
5700K – Daylight White	Cool, daylight-like illumination suitable for industrial facilities and outdoor lighting.
6000K – Cool Daylight	Cool white light with a slight bluish tone, suitable for industrial and commercial applications.
6500K – Daylight	Very cool, daylight-like white light often used in inspection areas and specialized workspaces.
Selectable CCT	Allows users to select between preset color temperatures to accommodate different lighting preferences.
Tunable White	Provides adjustable color temperature across a supported range for flexible lighting applications.

Note: Capacity includes the worker, clothing, tools, and equipment. OSHA compliance depends on the complete fall protection system and its intended use, not the weight rating alone.

CRI Rating	Description
CRI 70	Provides basic color rendering suitable for warehouses, storage areas, and general industrial lighting where precise color identification is not critical.
CRI 80	Delivers good color accuracy for offices, warehouses, manufacturing facilities, and everyday commercial lighting applications.
CRI 82	Offers good color rendering for commercial and industrial environments, helping maintain natural-looking colors and clear visibility.
CRI 85	Provides enhanced color accuracy for retail spaces, offices, workshops, and applications where color distinction is important.
CRI 90	Delivers excellent color rendering for applications requiring accurate color identification, including inspection areas, retail displays, and detailed workspaces.
CRI 95	Offers exceptional color accuracy for specialized applications such as color inspection, photography, and precision manufacturing.
CRI 98	Provides near-reference color rendering accuracy, ideal for demanding applications requiring highly accurate color reproduction and visual evaluation.
CRI 100	Represents the maximum CRI score, indicating color rendering equivalent to the applicable reference illuminant under the CRI measurement system.

ETL Listed products have been independently tested and certified by Intertek to meet applicable North American safety standards, including UL and CSA standards where applicable. The ETL Listed mark indicates that the product meets established safety requirements and is subject to ongoing certification oversight. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, ETL certification helps demonstrate compliance with recognized electrical and product safety standards.

Input Voltage:: 120-277V
Color Temp:: 4000K
Watt:: 40
Lumens:: 5373
Lumen Per Watt:: 136
CRI:: >80
Finish:: White
ETL Listed:: Yes
DLC:: Premium
Average Rated Life:: 100,000 hrs
Warranty:: 5 Years
Package Size:: Each

What materials and construction does the ILP LANCE24-54L-U-40 Lance Volumetric Troffer Retrofit Kit use?

The unit features a lightweight aluminum body with a matte white finish and a high-transmission extruded PMMA frosted acrylic lens, as described in the product features.

What are the key technical specifications of this retrofit kit?

It operates at 120-277V, has a 4000K color temperature, consumes 40 watts, delivers 5,373 lumens, with a luminous efficacy of 136 lm/W, CRI 80 or higher, DL DLC Premium, ETL listed for UL1598C, and an average rated life of 100,000 hours.

What installation features does this kit offer?

It is a one-piece unit with two universal mounting brackets and is designed for recessed lighting applications, with an average installation time of less than three minutes.

What warranty and compatibility information is available for this product?

The standard warranty is 5 years with an optional 10-year warranty. The kit is ETL listed for UL1598C and DLC Premium qualified. It uses a 0-10V dimmable driver and supports 1×4, 2×2, and 2×4 configurations.

What applications or environments is the ILP LANCE24-54L-U-40 designed for?

It is intended for recessed troffer retrofit lighting in ceiling grids, with options for air return and advanced wireless control capabilities, as noted in the product description.

Spec Sheet
