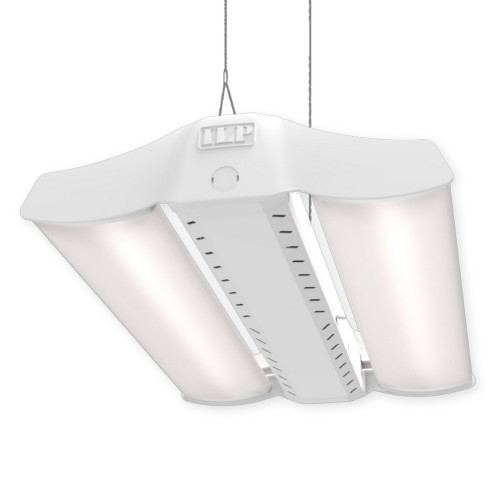

The ILP EDV4-30L-U-50 Endeavour 2.0 LED High Bay is a high-intensity fixture designed to illuminate large industrial spaces with clarity and reliability. It delivers 32700 lumens from a 212-watt LED array at a 5000K color temperature, offering a bright, daylight-like output suitable for warehouses, manufacturing floors, and loading areas. With an aluminum body and rigid steel channel construction, the unit emphasizes structural integrity while incorporating curved polycarbonate end caps for a durable, professional finish. The design supports both wide and narrow light distributions and includes options for uplight to improve overall room illumination, depending on installation goals.
Key construction and features include a robust IK10-rated housing, a white finish with optional black, and a tool-less hinged driver access for maintenance efficiency. The fixture is ETL Listed for Damp Locations and meets DLC Premium standards, signaling compatibility with energy programs and performance thresholds used by many facilities. Its 0-10V dimmable driver enables 100%–10% control to adapt to changing tasks or occupancy schedules, while a reported CRI at or above 80 ensures more accurate color representation of objects in the space. An elevated ambient-temperature tolerance and a wide operating range extend performance across challenging environments.
When planning installations, consider the fixture’s IP5X rating for ingress protection and its suitability for 120–277V electrical supply, enabling flexible wiring in various facilities. The Endeavour 2.0 also features dual-point mounting options via V-clips for both chain and cable suspension, simplifying alignment and positioning. Each unit is packaged as a single fixture, and the 5-year warranty is standard with a 10-year option, reflecting the product’s intended long-term service in demanding industrial settings.
Features:
- Sleek curved polycarbonate end caps
- Aluminum body with steel channel for rigidity
- 0-10V dimmable driver (100%–10%)
- Wide & Narrow distributions with uplight options
- ETL Listed for Damp Location
- DLC Premium Qualified Luminaire
- 5-year warranty standard; 10-year optional
- Input Voltage:
- 120-277V
- Color Temp:
- 5000K
- Watt:
- 212
- Lumens:
- 32700
- Lumen Per Watt:
- 154
- CRI:
- >80
- Finish:
- White
- ETL Listed:
- Yes
- DLC:
- Premium
- Operating Temperature Range:
- -40F to 131F
- IP Rating:
- IP5X
- Average Rated Life:
- 100,000 hrs
- Warranty:
- 5 Years
- Package Size:
- Each
