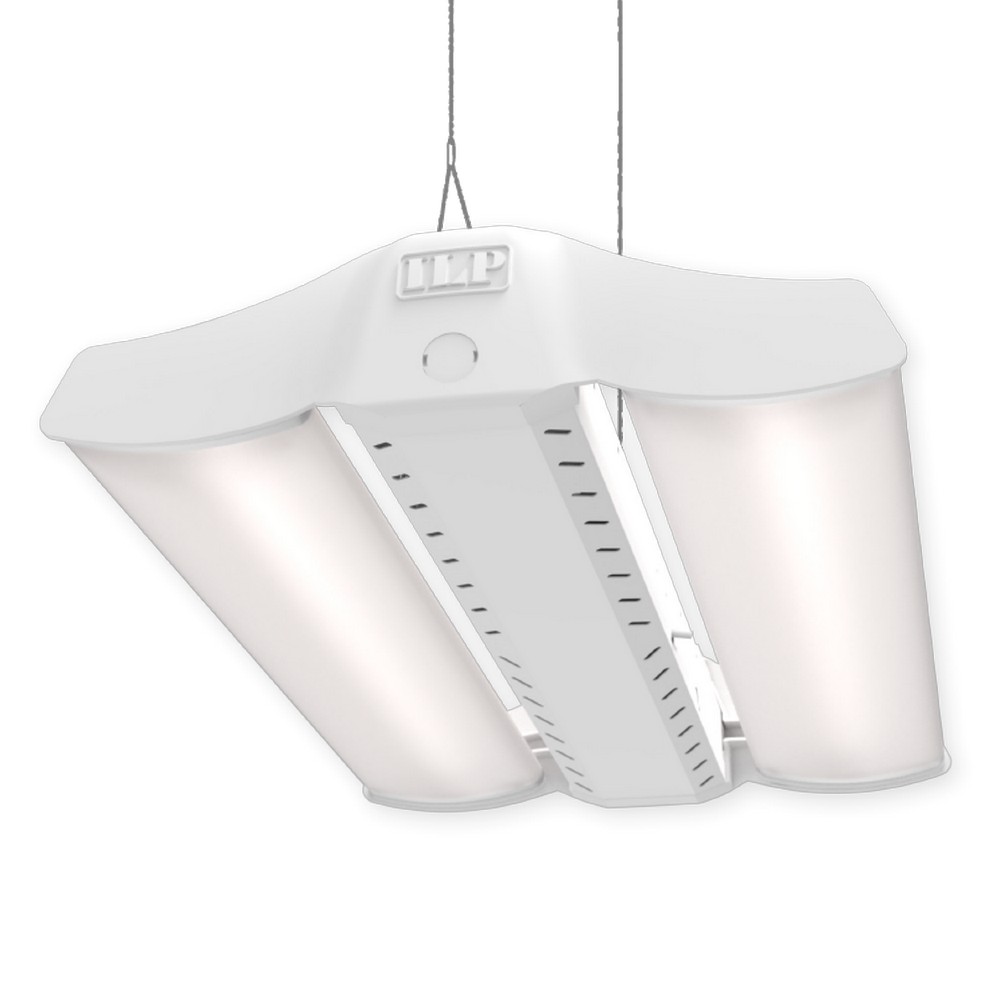

The ILP Endeavour 2.0 EDV4-60L-U-50 is a high bay LED fixture designed for demanding industrial and commercial spaces. It delivers bright, broad illumination with a 5000 K color temperature and a high lumen output, suitable for large areas like warehouses, manufacturing floors, and distribution centers. The unit’s rugged construction combines an aluminum body with steel channeling for added rigidity and features curved polycarbonate end caps for durability, complemented by a white finish option that blends into standard industrial interiors. It offers versatile lighting distributions (wide and narrow) and an uplight option to help improve overall room visibility, when room geometry and task placement warrant it. The EDV4-60L-U-50 is compatible with 0-10 V dimming and supports both basic and advanced controls, enabling crews to tailor illumination to specific workflows while supporting energy management goals.
With an IK10-rated rugged build and IP5X rating, the fixture is engineered to withstand demanding environments, including exposure to dust and physical impact typical of industrial settings. It is ETL listed for damp locations and is a DesignLights Consortium Premium Qualified Luminaire, which can help with project reporting and compliance in certain markets. The LED performance is rated at 425 watts with roughly 65,419 lumens, delivering a high lumen-per-watt efficiency that supports lower total energy consumption relative to older technologies. The unit is specified for a broad operating temperature range that includes -40°F to 122°F, and offers a standard 5-year warranty with optional 10-year coverage for extended protection. Dry or damp location installations should follow applicable wiring and mounting guidelines to ensure continued performance and reliability.
Features:
- Aluminum body with steel channel for added rigidity
- Tool-less hinged driver access
- Wide & Narrow distributions with uplight options
- V-Clips for dual point chain or cable hanging (standard)
- 0-10V dimmable driver (100%–10%)
- ETL Listed for Damp Location
- DesignLights Consortium Premium Qualified Luminaire
- Input Voltage:
- 120-277V
- Color Temp:
- 5000K
- Watt:
- 425
- Lumens:
- 65419
- Lumen Per Watt:
- 154
- CRI:
- >80
- Finish:
- White
- ETL Listed:
- Yes
- DLC:
- Standard
- Operating Temperature Range:
- -40F to 122F
- IP Rating:
- IP5X
- Average Rated Life:
- 100,000 hrs
- Warranty:
- 5 Years
- Package Size:
- Each
