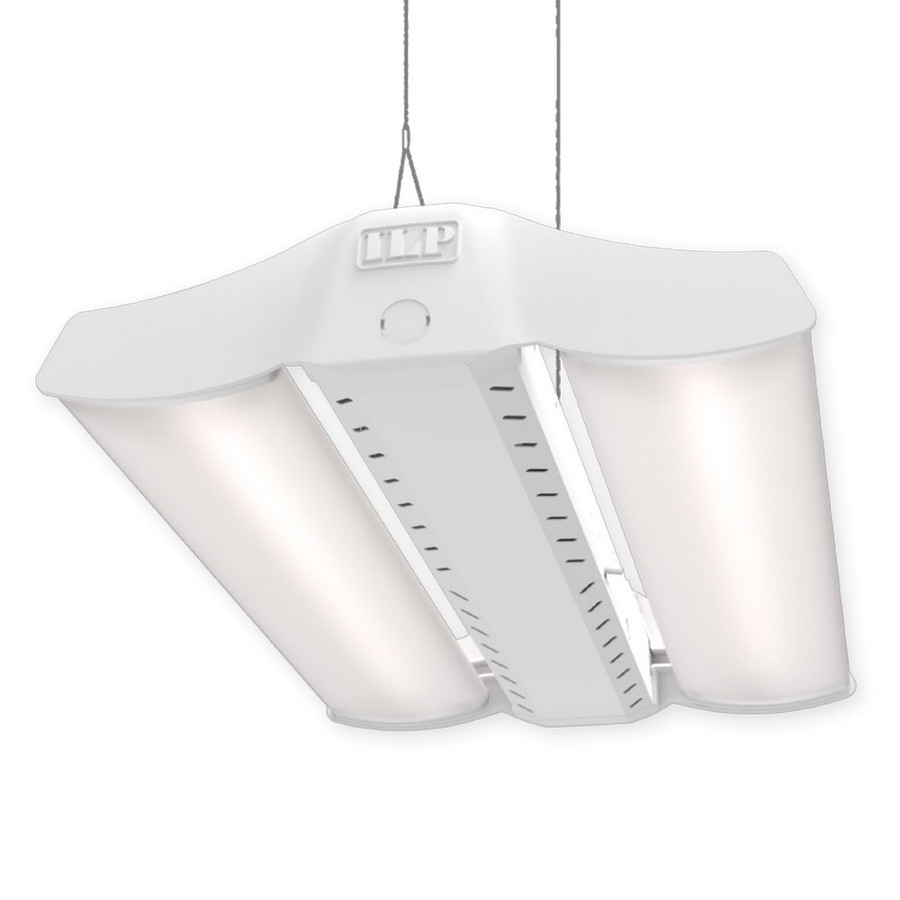

The ILP Endeavour 2.0 EDV4-30L-U-50-ND is a high bay lighting fixture designed for demanding industrial and commercial spaces. With a 212-watt LED engine delivering approximately 32,066 lumens, it provides bright, wide-range illumination suitable for large areas such as warehouses, manufacturing floors, and distribution centers. The luminaire is built on an aluminum body with reinforced steel channel, contributing to rigidity and durability, and features curved polycarbonate end caps for a clean, robust exterior. It supports a broad color temperature range from 3000K to 5000K and is available with uplight options to enhance uniform room illumination, helping reduce shadows and improve visibility across the space.
Designed for flexible installation and operation, the EDV4-30L-U-50-ND offers 0-10V dimmable control (100%–10%) and accommodates both wide and narrow distributions to tailor the lighting pattern to the application. It is rated for ambient temperatures from -40°F to 131°F, with an option for a higher ambient temperature rating, and is E TL listed for damp locations. The fixture is certified as DLC Standard and meets DesignLights Consortium Premium Qualified Luminaire requirements, which can support energy efficiency incentives and compliance in qualified projects. With a calculated L80 >100,000 hours, the LED engine is designed for long service life, and the 5-year warranty (with optional 10-year warranty) adds coverage for endurance in continuous-use environments. The unit is available in white finish and includes features such as V-clips for dual-point hanging and tool-less hinged driver access for convenient maintenance.
In practical use, this luminaire is suitable for retrofit or new installations in spaces needing high-output, long-life illumination with reliable performance in varying ambient conditions. Ensure the electrical supply is within the 120–277V range and consider the preferred CCT and dimming configuration for the installation. The product is packed as a single unit, ready for mounting, with the option to tailor controls and uplight configurations to optimize room-scale brightness.
Features:
- Aluminum body with steel channel for rigidity
- Tool-less Hinged Driver Access
- Wide & Narrow Light Distributions
- V-Clips for dual point hanging (standard)
- 0-10V Dimmable Driver (100%–10%)
- ETL Listed for Damp Location
- DesignLights Consortium Premium Qualified Luminaire
- Input Voltage:
- 120-277V
- Color Temp:
- 5000K
- Watt:
- 212
- Lumens:
- 32066
- Lumen Per Watt:
- 151
- CRI:
- >80
- Finish:
- White
- ETL Listed:
- Yes
- DLC:
- Standard
- Operating Temperature Range:
- -40F to 131F
- IP Rating:
- IP5X
- Average Rated Life:
- 100,000 hrs
- Warranty:
- 5 Years
- Package Size:
- Each
