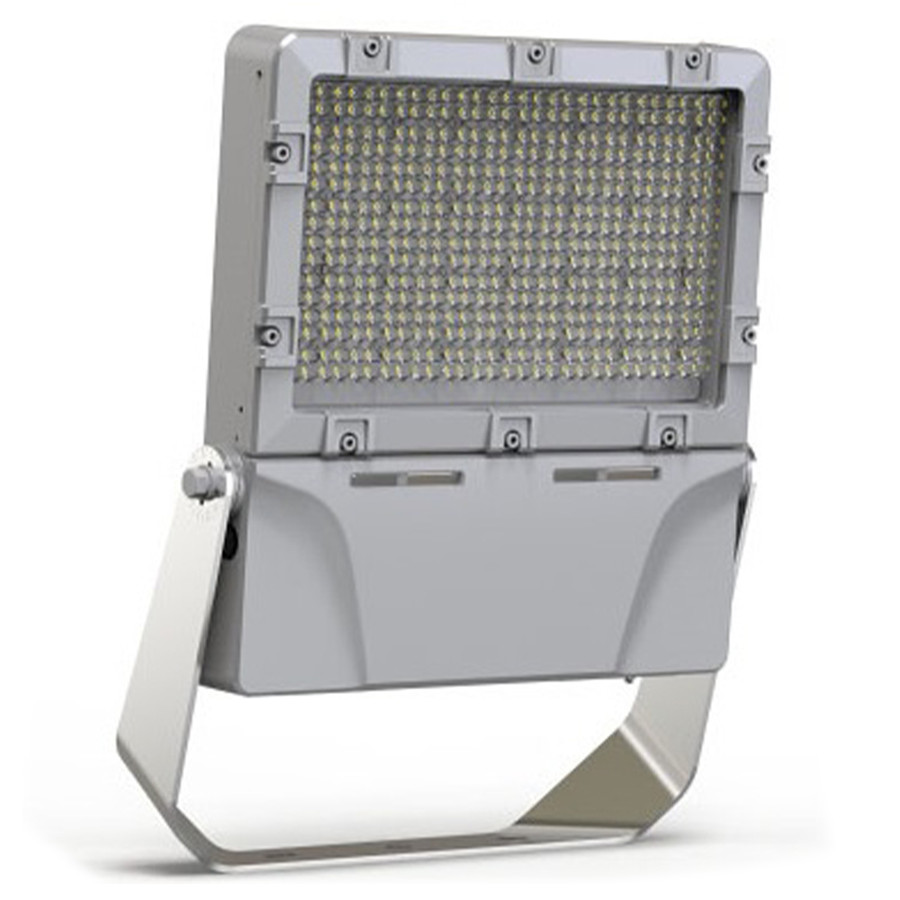

The ROC-24-LV-C-TYPEV-XP-5Y-S is a high-output LED flood light designed for hazardous and industrial environments where robust, reliable illumination is required. Built to operate in challenging conditions, this unit delivers up to 36,000 lumens at a nominal 150 lm/W efficiency, with a 240W driver and a 120° beam spread to cover broad outdoor area and workspace lighting needs. The product is configured for harsh service, aligning with explosion-protected requirements while maintaining continuous performance in demanding settings.
Construction and features emphasize durability and heat management. The LED technology is separated from the driver cavity to promote effective heat dissipation, which helps extend component life under varying temperatures. The fixture includes a corrosion-resistant, low copper aluminum body, specialized powder coating, stainless steel hardware, and hot-dip galvanizing to withstand marine and coastal environments. A driver cover design focuses on anti-dislodging, and the self-locking spring terminals support secure, straightforward wiring.
This model is configured for a wide range of hazardous locations, supporting Class I Division 2, Class II Divisions 1 & 2, and Class III applications, with an IP66 enclosure rating and IK08 impact resistance, suitable for wet, corrosive, and challenging industrial settings. It is UL-listed and available with multiple voltage options and color temperature choices in its broader series, though this specific variant is a 240W, 5000K package. For installation considerations, the fixture offers double cable entry for flexible mounting and alignment with diversified light distributions. When selecting, verify compatibility with your electrical system, mounting arrangement, and environmental exposure to ensure proper integration and maintenance planning.
Features:
- Wattage: 240W (also available in 150W and 200W)
- Lumens: 36,000; Efficacy up to 150 lm/W
- Color Temperature: 5000K (also available 2000K-6500K)
- Beam Angle: 120°
- Voltage: 120-277V; UL Listed
- Corrosion-resistant construction for marine environments
- LEDs separated from driver for improved heat dissipation
- Anti-dislodging driver cover; easy wiring with self-locking terminals
- Wattage:
- 240W
- Lumens:
- 36000
- Lumens Per Watt:
- 150
- CCT:
- 5000K
- Beam Angle:
- 120°
- Operating Temperature:
- -40 Degrees C-50 Degrees C
- UL Listed:
- Yes
- Dimming:
- No
- Package Size:
- Each
