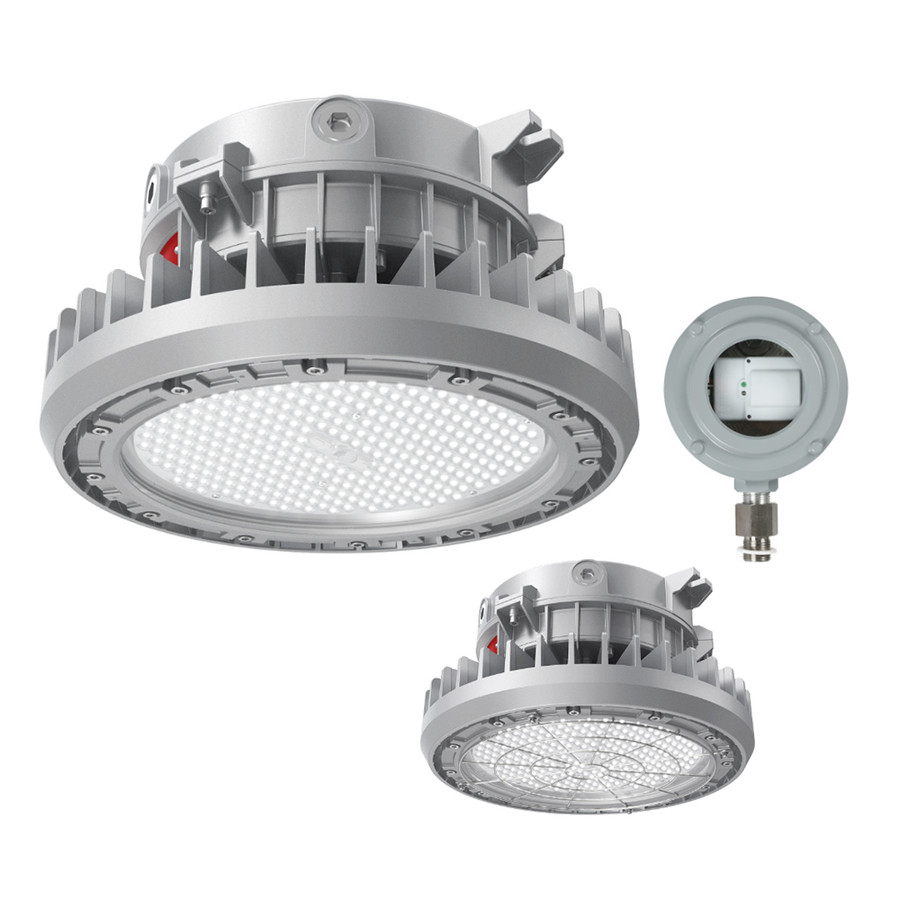

The FME Lighting NEB-24-LV-C-TYPEV-7-NPT-PM-5Y-S Nebula Explosion Proof Area LED Light is a high-output hazardous-location luminaire designed for demanding industrial environments. This 240-watt fixture delivers up to 32,400 lumens with a 5000K color temperature, providing bright, neutral-to-cool white illumination suitable for resolving detail in areas with sensitive equipment or where precise visibility is crucial. Engineered to meet Class I, Division 2 exposure conditions, it supports safer operation in spaces where flammable gases or vapors may be present, and it carries robust environmental protection with IP66 dust/water ingress resistance and IK08 impact protection, enabling reliable performance in indoor and outdoor settings. The fixture is built for dependable service in challenging locations, including power plants, wastewater facilities, and shipyards, where durable construction and steady illumination are essential.
Key construction and features include a polycarbonate or metal-constructed housing designed to withstand harsh industrial conditions, a 120° beam pattern option that distributes light efficiently across large work areas, and multiple voltage compatibility (AC 120–277V and AC 277–480V) to accommodate different electrical infrastructures. It offers dimming capability (1–10V) and supports optional control features such as DALI control and Bluetooth sensors, facilitating energy management and intelligent lighting strategies. The Nebula series is designed for long service life in hazardous locations, with protections that help maintain performance in environments with dust, moisture, and potential corrosion risks.
Practical considerations for installation and use include pendant mounting options and robust sealing that suits both indoor bays and outdoor facilities. The 5-year warranty (as indicated by the product code) is an important factor for budgeting and maintenance planning. When selecting this luminaire, confirm compatibility with your electrical system’s voltage range, dimming needs, and any control integrations to ensure seamless operation in your specific facility and to align with applicable safety standards for your location.
Features:
- Wattage: 240W; Lumen output: 32,400; Efficacy: 135 lm/W
- Voltage: AC120-277V and AC277-480V (50/60Hz)
- CCT options include 5000K; other temperatures available per data
- Beam Angle: 120°; Optics: Type I, III, and V distributions
- Driver options: 1-10V dimming, DALI control; Bluetooth sensors optional
- Protection: IP66, IK08; Class I, Division 2, Groups A–D; 10-20kV surge protection
- UL Listed; Pendant mount configuration; 5-year warranty
- Wattage:
- 240W
- Lumens:
- 32400
- Lumens Per Watt:
- 135
- CCT:
- 5000K
- Beam Angle:
- 120°
- Operating Temperature:
- -40 Degrees C-45 Degrees C
- UL Listed:
- Yes
- Dimming:
- Yes
- Package Size:
- Each
