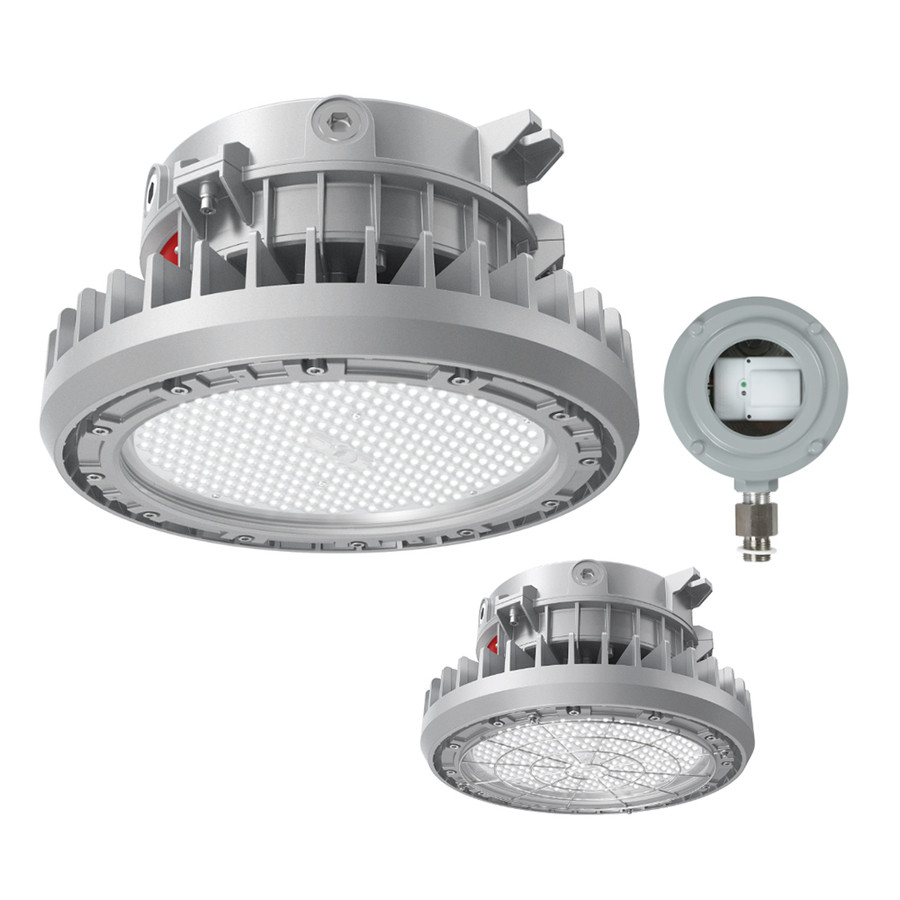

The Nebula Explosion Proof Area LED Light from FME Lighting is a high-performance illumination solution designed for demanding industrial environments. Rated for Class I, Division 2 locations with A, B, C, D groups, it provides robust protection for areas with flammable gases or vapors while delivering substantial lumen output and reliability in both indoor and outdoor settings. This 240W model achieves 24,400+ lumens at a 5000K color temperature, offering bright, neutral-white illumination ideal for hazardous locations where clear visibility is essential. The fixture’s 120° beam angle supports wide-area coverage, helping reduce shadows and improve safety in work zones.
Construction and distinguishing features are geared toward harsh conditions: IP66 and IK08 double protection ensure resistance to dust, water, and impact, and surge protection (10–20 kV) adds resilience against electrical disturbances common in industrial facilities. The unit is UL Listed, acknowledging compliance with recognized safety standards, and includes 1–10V dimming with optional DALI control and Bluetooth sensor integrations, enabling flexible lighting control and energy efficiency without compromising safety credentials.
Practical use cases center on hazardous-location applications requiring dependable lighting across bays, walkways, and work zones in facilities such as power plants, wastewater treatment sites, or shipyards. The fixture offers multiple driver and optic options; this model provides high-output 24,400+ lumens and single-volt operation in the 120–277V range, with a 5-year feature set implied by the part code. When planning installation, consider mounting method (trunnion is indicated in the SKU), ambient temperature operating limits, and maintenance access to ensure continuous, code-compliant performance in demanding environments.
Features:
- Wattage: 240W
- Lumens: 32400
- CCT: 5000K
- Beam Angle: 120°
- Voltage: 120-277V (also supports 277-480V)
- IP66 and IK08 rugged housing
- Class I, Division 2, Groups A–D
- Wattage:
- 240W
- Lumens:
- 32400
- Lumens Per Watt:
- 135
- CCT:
- 5000K
- Beam Angle:
- 120°
- Operating Temperature:
- -40 Degrees C-45 Degrees C
- UL Listed:
- Yes
- Dimming:
- Yes
- Package Size:
- Each
