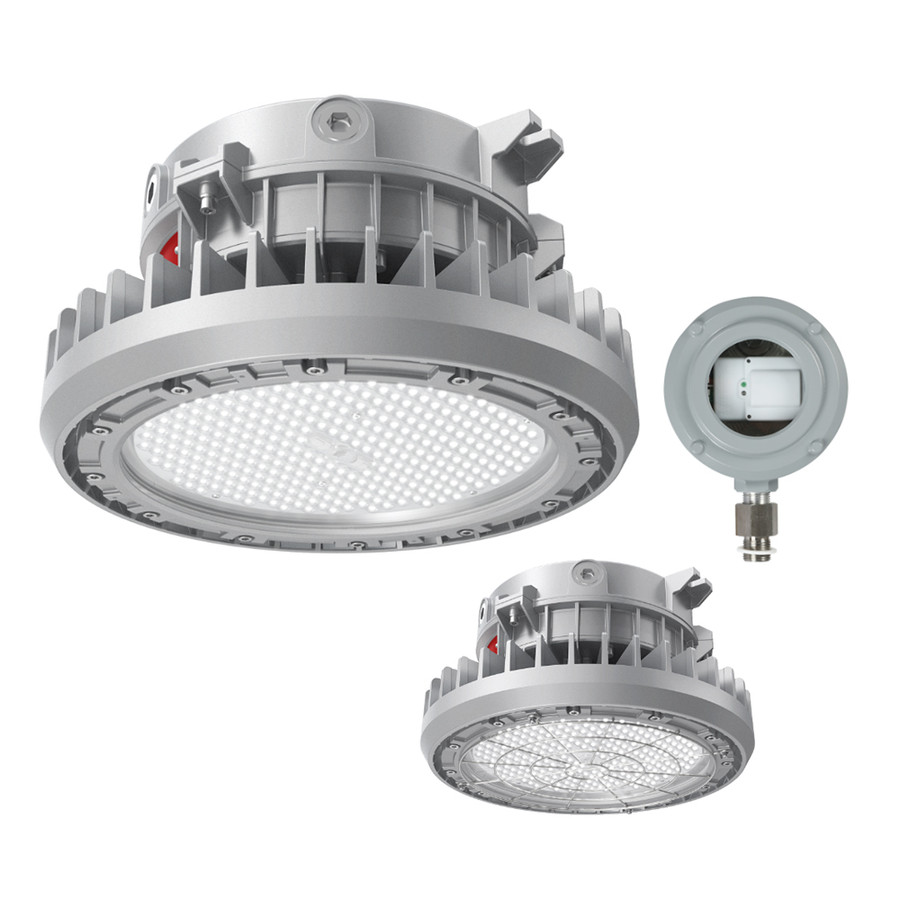

The NEB-10-LV-C-TYPEV-7-NPT-PM-5Y-S Nebula Explosion Proof Area LED Light from FME Lighting is a high-performance illumination solution designed for hazardous location environments. Built to operate in Class I Division 2 areas, it delivers robust lighting in spaces where flammable gases or vapors may be present, while maintaining reliable service in demanding industrial settings. This pendant-mount fixture outputs 10125 lumens with a 5000K daylight-like color temperature and a 120-degree beam spread, offering bright, broad coverage suitable for mid-to-large area lighting tasks. With a practical wattage of 100W and an efficacy around 102 lumens per watt, it aims to balance performance with energy efficiency in compliant installations.
Constructed for tough surroundings, the NEBULA series carries IP66 and IK08 protection, guarding against dust, water ingress, and physical impact. The unit is UL Listed and supports multiple control options, including dimming (1–10V) and potential integrations such as DALI or Bluetooth-enabled sensors, depending on configuration. The fixture is designed to endure exposure to challenging conditions, with nerve-wracking weather and corrosive environments often encountered in facilities like power plants, wastewater treatment, and shipyards. Additional features such as photocell and occupancy sensor options can further enhance energy management and emergency lighting capability in compliant systems.
This model is configured for 120–277V operation with 50/60 Hz flexibility, and its rugged, NPT-compatible mounting allows straightforward pendant installation in appropriate industrial ceilings. When selecting this luminaire, confirm compatibility with your local hazardous-location standards and the specific circuit protections in your layout. Maintainers should review the installation requirements and ensure proper sealing and wiring methods to preserve IP66 integrity during ongoing service. The product is provided as a single unit with standard mounting provisions, and field maintenance should focus on input connections and seal integrity to sustain long-term performance.
Features:
- Wattage: 100W
- Lumen Output: 10,125 lumens (10125 LM)
- Color Temperature: 5000K
- Beam Angle: 120°
- Voltage: 120-277V and 277-480V (50/60Hz)
- Class I, Division 2; IP66; IK08
- Dimming Options: 1-10V; DALI and Bluetooth sensors optional
- Wattage:
- 100W
- Lumens:
- 10125
- Lumens Per Watt:
- 102
- CCT:
- 5000K
- Beam Angle:
- 120°
- Operating Temperature:
- -40 Degrees C-60 Degrees C
- UL Listed:
- Yes
- Dimming:
- Yes
- Package Size:
- Each
