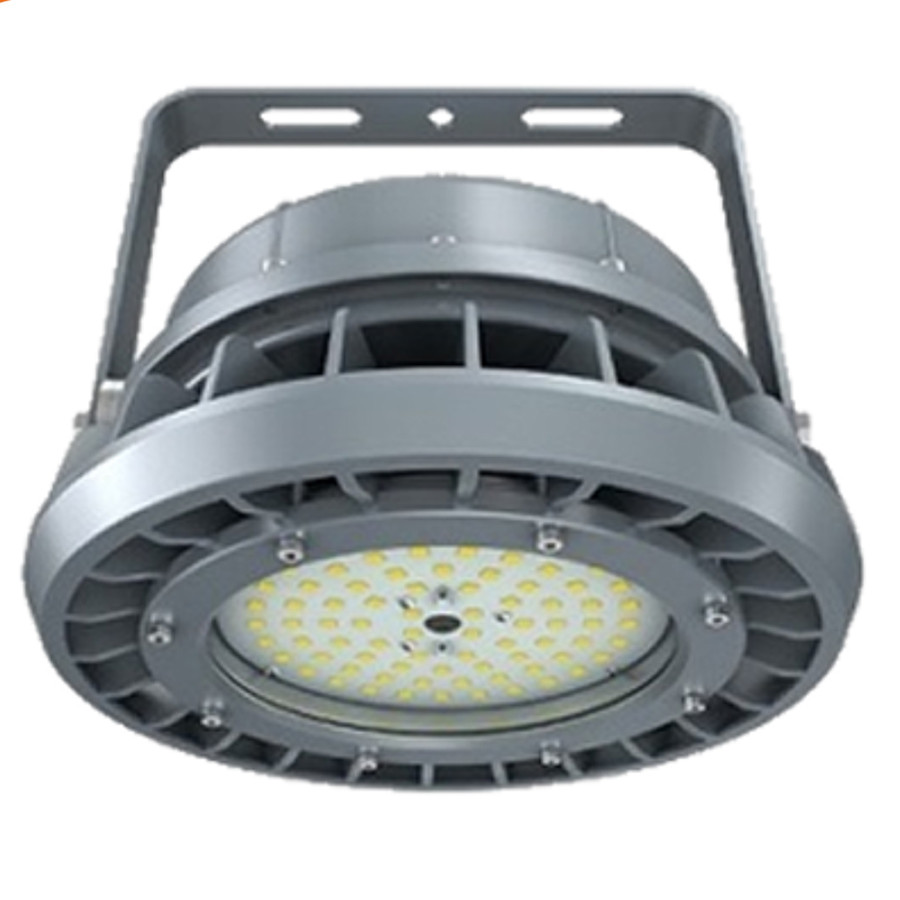

The FME Moon Series Highbay is a robust LED luminaire designed for challenging environments where flammable vapors, gases, or combustible dusts may be present, as defined by NEC, ATEX, CNEX, and CSA standards. With a powerful 200W output delivering 28,000 lumens and a 5000K color temperature, this fixture provides bright, crisp illumination over wide areas. The unit operates at 200–480V and features a 120° beam angle, making it suitable for high-ceiling applications such as industrial facilities, manufacturing floors, and warehousing spaces where reliable visibility is critical. The Moon Series emphasizes reliability through a heavy-duty construction, a replaceable LED board and driver, and standard components including an adjustable U-bracket and a 1 meter cord for flexible installation. Its IP66 and IK10 ratings indicate strong protection against dust ingress and impact damage, while its ability to function in extreme temperatures from -40°C to 40°C supports use in a variety of climates and conditions.
Features:
- Heavy-duty and high impact resistance
- Replaceable LED board and driver
- Standard U bracket and 1 meter cord
- Tempered glass lens standard with optional opal globe and guard
- 3 Hour Emergency backup available for 100-400W sizes
- Wattage: 200W, Lumens: 28000, Beam: 120°
- Wattage:
- 200W
- Lumens:
- 28000
- Lumens Per Watt:
- 140
- CCT:
- 5000K
- Beam Angle:
- 120°
- Operating Temperature:
- -40 Degrees C-40 Degrees C
- UL Listed:
- Yes
- Dimming:
- No
- Package Size:
- Each
