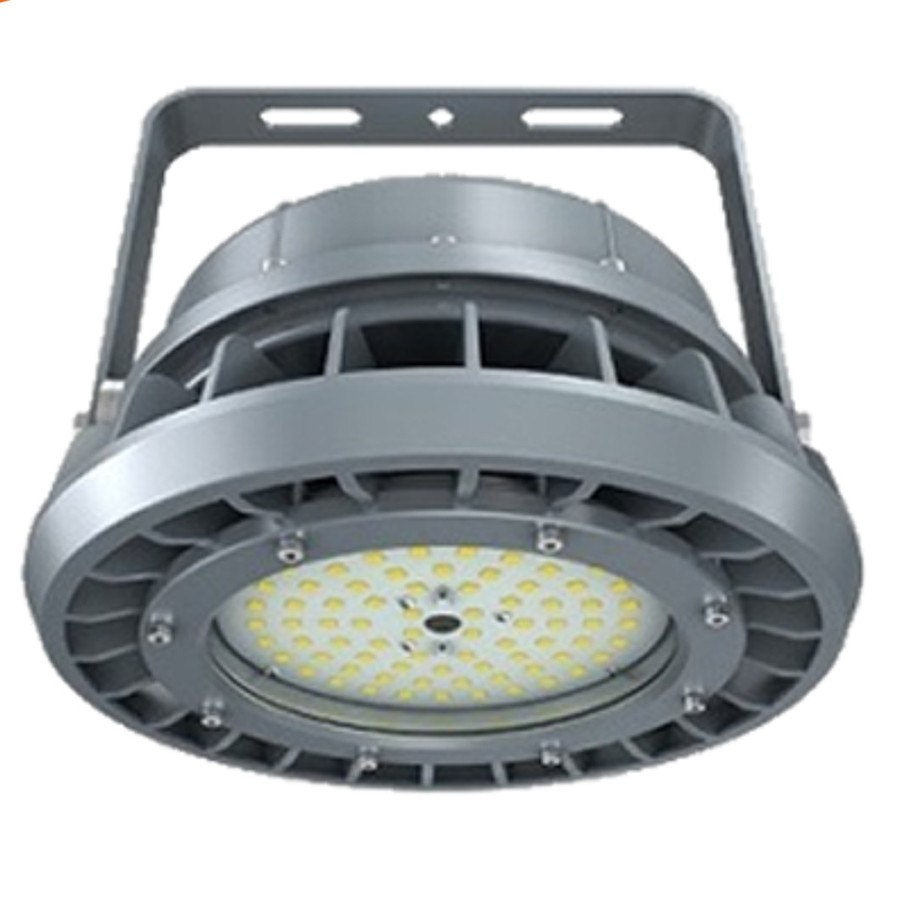

The FME Moon Series LED Highbay delivers bright, reliable illumination for challenging industrial spaces where safety and visibility are critical. Designed to perform in areas with flammable vapors, gases, or combustible dusts, this luminaire is built to meet demanding standards while offering robust performance. With a 100 W rating and a lumen output of 14,000 at 5,000 K, it provides strong, even coverage across large work surfaces. The unit operates at 100–277 V and is non-dimming, making it suitable for simple, straightforward electrical circuits where dimming is not required. An important feature is the replaceable LED board and driver, which can reduce total cost of ownership by simplifying maintenance should component wear occur over time.
Construction and features emphasize protection and practicality. The MOON Series is rated IP66 for protection against dust and water intrusion and IK10 for impact resistance, aligning with harsh industrial environments. An adjustable U-Bracket and standard pendant mounting are included, enabling flexible installation options to suit various ceiling heights and mounting constraints. The tempered glass lens comes standard, with an opal globe and guard option available to broaden light distribution and add extra surface protection where needed. The luminaire is UL Listed, which supports compliance with basic electrical safety expectations in North American applications.
This highbay is suited for large-volume spaces such as warehouses, manufacturing floors, and distribution centers where high-intensity, broad-area illumination is needed without the complexity of dimming controls. It is available in a 100 W configuration with 120-degree beam options, and its tough construction supports maintenance cycles in industrial settings. Typical considerations include ensuring power availability within the 100–277 V range and selecting appropriate mounting hardware to match ceiling construction. The package size is listed as One unit per package, and the unit is designed for straightforward field servicing with replaceable LED components where applicable.
Features:
- Heavy-duty and high impact resistance
- Replaceable LED board and driver
- Standard U bracket and 1 meter cord
- 3 Hour Emergency battery backup available 100-400W sizes
- Tempered glass lens standard with opal globe and guard option
- Wattage:
- 100W
- Lumens:
- 14000
- Lumens Per Watt:
- 140
- CCT:
- 5000K
- Beam Angle:
- 120°
- Operating Temperature:
- -40 Degrees C-40 Degrees C
- UL Listed:
- Yes
- Dimming:
- No
- Package Size:
- Each
