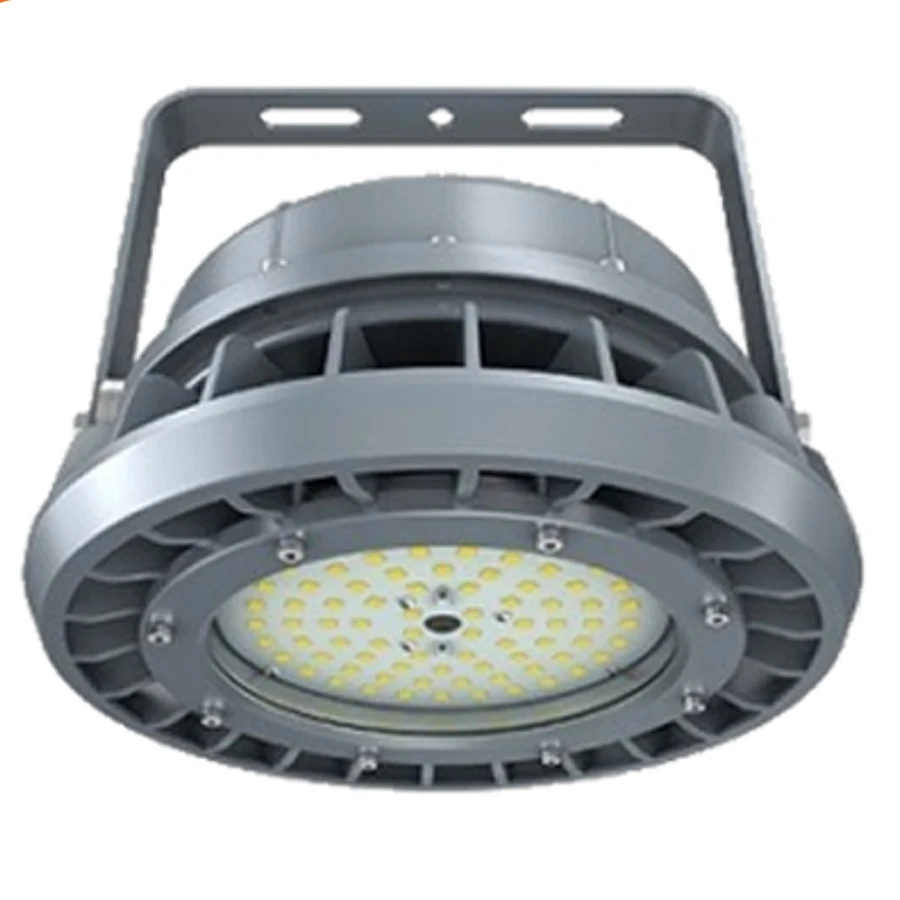

The FME Lighting MOON Series Highbay is a robust LED luminaire designed for demanding industrial environments, including locations with flammable vapors, gases, or combustible dusts as defined by NEC, ATEX, CNEX, and CSA. This 150-watt highbay delivers about 21,000 lumens at a 5,000K color temperature, providing bright, consistent illumination with a 120-degree beam to cover large areas efficiently. The unit is configured for dimming and is UL Listed, aligning with common safety and performance expectations for hazardous locations. A tempered glass lens is standard for protection, with options for an opal globe and guard to broaden light distribution and shield the lens from impact or debris. The Moon Series incorporates high-impact resistance through its heavy-duty construction and includes a replaceable LED board and driver, facilitating maintenance and reducing total cost of ownership over time. An adjustable U-bracket and a standard 1-meter cord simplify mounting and positioning in variable ceiling heights or racking layouts. The design is rated for wide operating temperatures, from -40°C to 40°C, supporting reliability in extreme environments.
This model is compatible with 200–480V electrical supplies and supports dimming, enabling facility managers to tailor light levels to shifting tasks or occupancy. The 5-year design intent of the series is complemented by practical features like a three-hour emergency battery backup option for 100–400W sizes, which can provide essential illumination during power interruptions. When planning installations, consider the IP66 and IK10 ratings, which indicate strong protection against dust, water ingress, and impact, making the MOON Highbay suitable for harsh or wet environments, including industrial warehouses, manufacturing floors, and areas with exposure to dust or moisture. The package is listed as per standard industrial dispatch, with each unit sized for single- unit installation.
Features:
- Heavy-duty housing with high impact resistance
- Replaceable LED board and driver
- Standard U bracket and 1 meter cord
- 3 Hour Emergency backup available (100-400W sizes)
- Tempered glass lens standard; opal globe and guard option for wider distribution
- Dimmable operation
- Wide 120° beam angle
- Wattage:
- 150W
- Lumens:
- 21000
- Lumens Per Watt:
- 140
- CCT:
- 5000K
- Beam Angle:
- 120°
- Operating Temperature:
- -40 Degrees C-40 Degrees C
- UL Listed:
- Yes
- Dimming:
- Yes
- Package Size:
- Each
