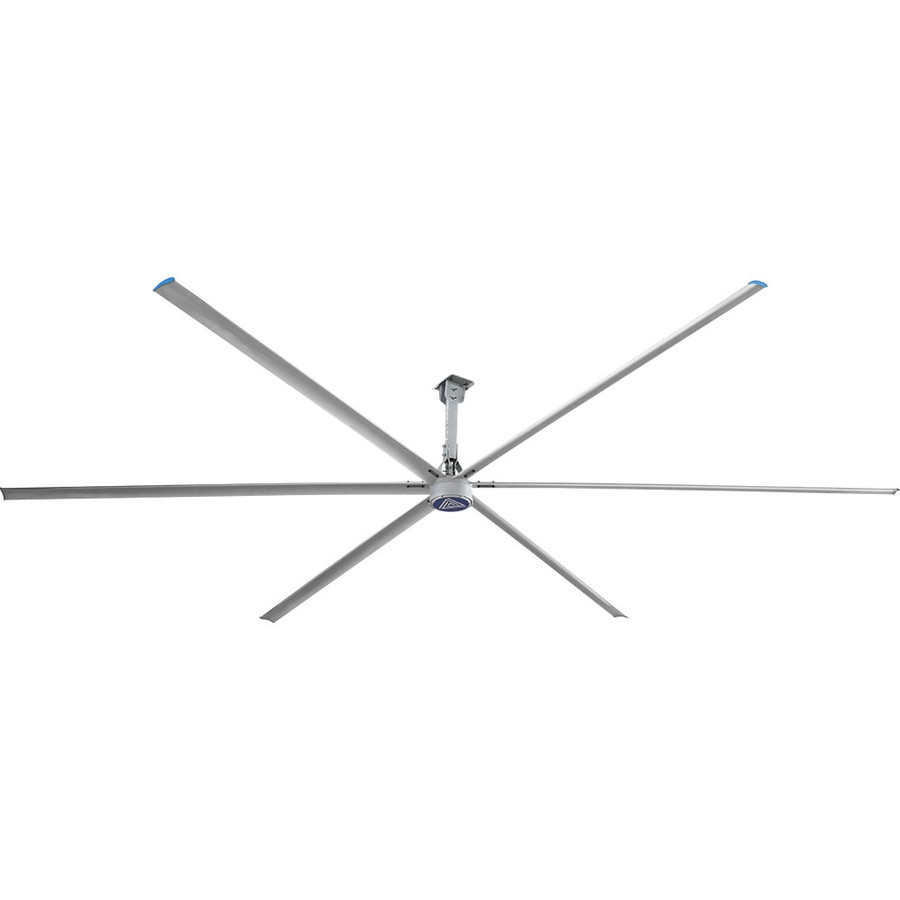

The Patterson V-Series Big HVLS Ceiling Fan model PATV24B-460 is a high-capacity, ceiling-mounted air movement solution designed for large facilities. With a 24-foot diameter and six contoured blades, it pushes considerable air across open spaces while maintaining a quiet profile suitable for occupied environments. Its direct-drive construction eliminates gears, reducing maintenance needs and weight, which can simplify mounting and support considerations for tall industrial spaces. The unit operates on a 460V three-phase motor and offers forward, reverse, and variable speed control to adapt airflow seasonally, helping improve comfort in hot weather and facilitate redistribution of warm ceiling air during colder months.
Key design elements include winglets at the blade tips to minimize airflow losses and direct air downward, contributing to efficient coverage over large areas. The product is rated for indoor or outdoor covered spaces, with IP66-rated VFD and IP54-rated motor protection to withstand challenging environments commonly found in industrial facilities. A multi-tier safety system provides enhanced protection suitable for rough settings, while the absence of a gearbox reduces weight and eliminates gear-driven maintenance concerns. These features collectively support reliable operation with lower ongoing service requirements in facilities seeking to balance comfort, safety, and energy efficiency.
Ideal use scenarios include large warehouses, manufacturing floors, and other expansive spaces where ceiling-mounted air movement can reduce ground moisture, improve traction conditions on slick floors, and contribute to a more consistent temperature profile. When considering installation, note the substantial size and weight, the 308-pound hanging weight, and the need for appropriate structural support and electrical supply for a 460V three-phase system. This model is packaged as individual units for placement into appropriate mounting configurations, and ongoing maintenance should focus on periodic inspection of the motor, VFD, and blade assembly to ensure continued performance.
Features:
- Direct Drive design minimizes maintenance
- Wingtips reduce airflow loss and direct air downward
- Contoured blades maximize air movement
- Low weight due to no gearbox
- Low noise: < 42 dB
- Forward, Reverse and Variable Speed
- IP66 VFD and IP54 motor for indoor/outdoor covered spaces
- Multiple safety protection tiers
- Size:
- 24 ft Diameter
- Number of Blades:
- 6
- Industrial Spacing:
- 110 ft (33.5 m)
- Max Effective Area:
- 23732 ft² (2209 m²)
- Max RPM:
- 50 RPM
- Hanging Weight:
- 308 lbs (140 kg)
- Motor:
- 1.5 HP (1.1 kW)
- Voltage:
- 460V Three-Phase
- Package Size:
- Each
