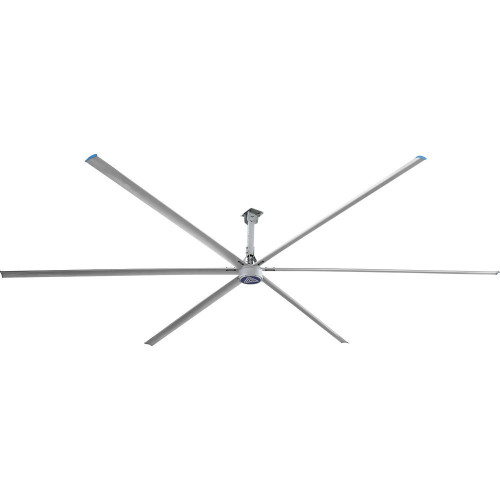

The Patterson V-Series HVLS ceiling fan, size 16 feet in diameter, is designed to move large volumes of air quietly from a ceiling-mounted position, freeing floor space and reducing trip hazards associated with portable fans. This model operates on a 460V three-phase motor, with a direct-drive configuration that eliminates gears for reduced maintenance and weight, contributing to simpler service and installation considerations. The fan features five contoured blades with wingtips to minimize airflow loss at the blade tips and to direct air downward for effective air distribution. At operating speeds, the design achieves low noise output (under 42 dB), which is advantageous in facilities where sound levels are a concern while still delivering a robust airflow.
The V16B-460 is engineered for versatility in both indoor and outdoor covered spaces, supported by IP66-rated variable frequency drive and IP54-rated motor protection to withstand challenging environments. This builds in an extra layer of reliability in industrial settings where dust, moisture, and incidental exposure may occur. The unit is offered with forward, reverse, and variable speed capabilities to optimize comfort and energy use across seasonal conditions: in summer, it helps create a steady breeze to improve occupant comfort and productivity, and in cooler seasons, it can assist in circulating warm air from the ceiling back toward the occupied zone, potentially reducing heating loads.
Typical applications include large workshops, warehouses, or facilities seeking to improve air circulation without occupying floor space or adding trip hazards. Practical considerations include the substantial initial footprint of a 16-foot-diameter fan, the need for appropriate mounting and structural support for ceiling installation, and adherence to any local electrical and building codes for high-voltage, three-phase equipment. Packaging is listed as per-unit, indicating each fan ships individually to support site-specific installation sequencing and coordination with electrical infrastructure.
Features:
- Direct Drive: zero gears means zero maintenance
- Wingtips minimize airflow loss and direct air downward
- Contoured blades for maximum air movement
- Low weight due to absence of gearbox
- Sound level <42 decibels for quiet operation
- Forward, Reverse and Variable Speed
- IP66 VFD and IP54 motor for indoor/outdoor covered spaces
- Size:
- 16 ft Diameter
- Number of Blades:
- 5
- Industrial Spacing:
- 90 ft (27.4 m)
- Max Effective Area:
- 16218 ft² (1506 m²)
- Max RPM:
- 80 RPM
- Hanging Weight:
- 112 lbs (51 kg)
- Motor:
- 1 HP (0.7 kW)
- Voltage:
- 460V Three-Phase
- Package Size:
- Each
