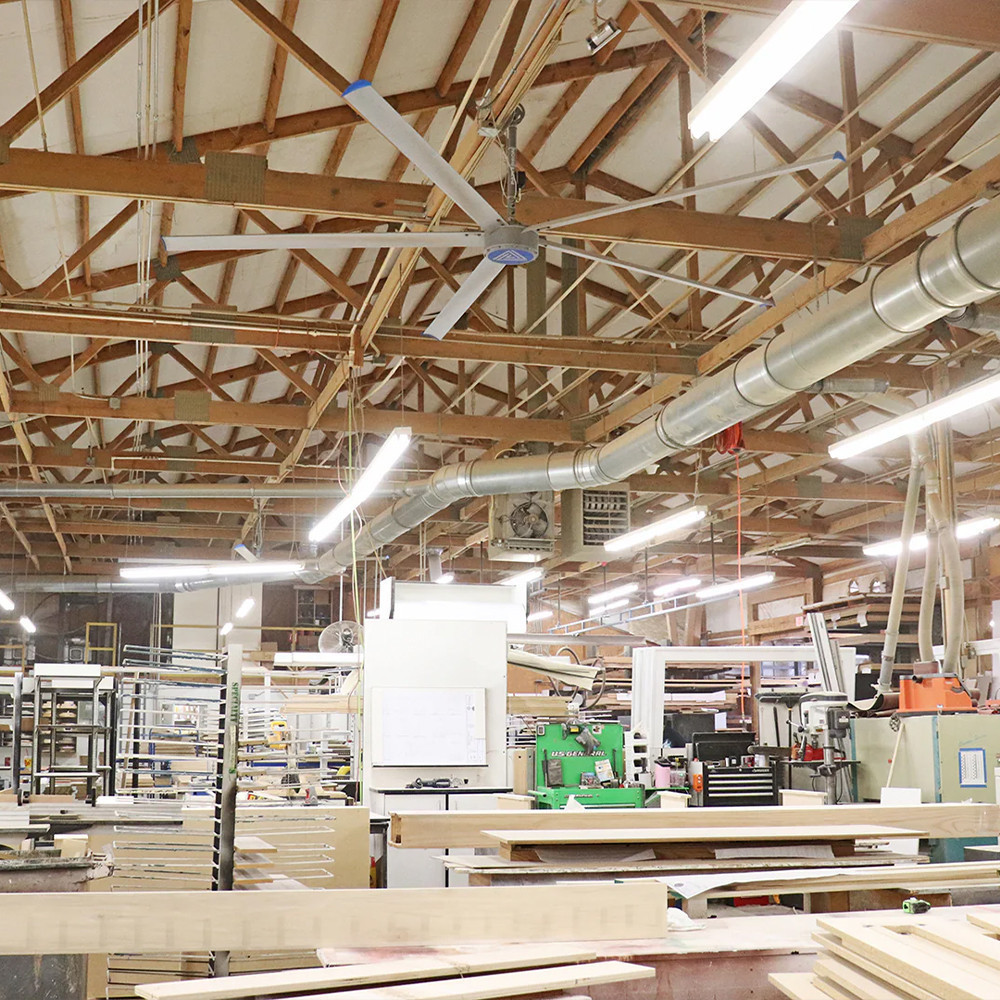

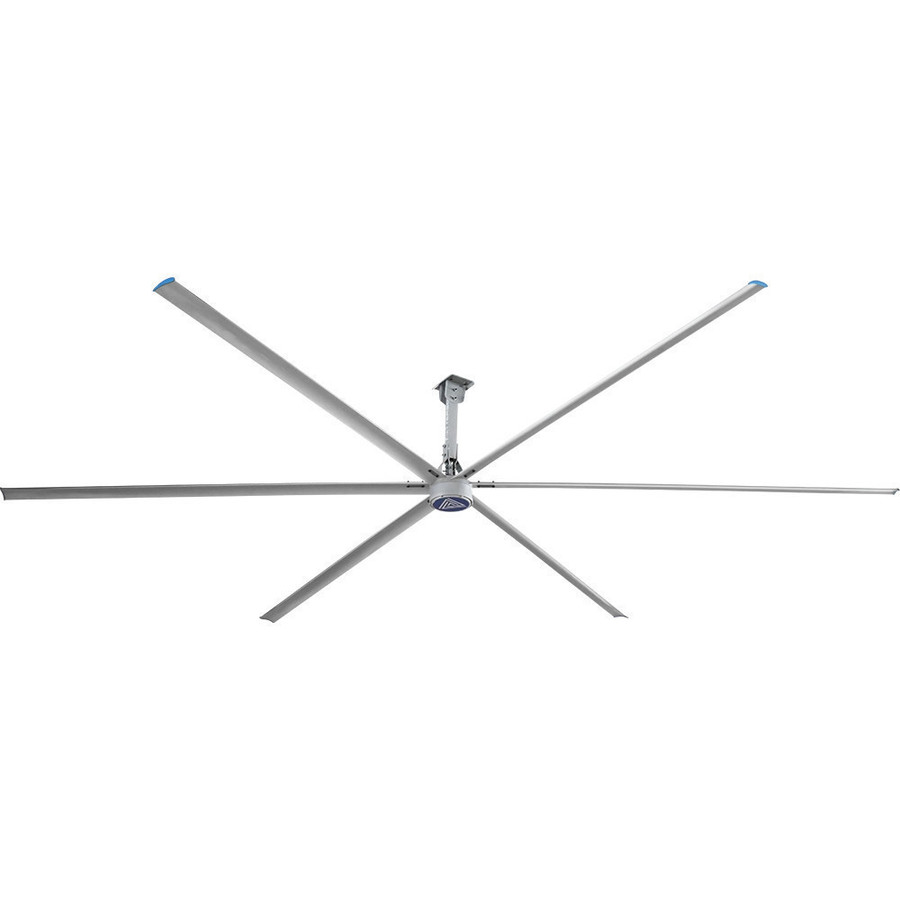

The Patterson V12B-460 V-Series Big HVLS Ceiling Fan is a high-capacity air-moving solution designed for large spaces. With a 12-foot diameter and a 1 horsepower, 460V three-phase motor, this ceiling-mounted unit delivers substantial airflow while remaining relatively quiet for industrial settings. The design emphasizes low maintenance through direct-drive construction, eliminating gears and their associated wear. Wingtips and contoured blades are optimized to minimize airflow loss and maximize downward air distribution, helping to move air efficiently across wide areas without introducing significant on-floor clutter.
Features:
- Direct Drive: zero gears means zero maintenance
- Wingtips reduce airflow loss and direct air downward
- Contoured blades for maximum air movement
- Low weight due to absence of gearbox
- Quiet operation under 42 decibels
- Forward, Reverse and Variable Speed
- IP66 VFD and IP54 motor; suitable for indoor/outdoor covered spaces
- Multiple tiers of safety protection
- Size:
- 12 ft Diameter
- Number of Blades:
- 5
- Industrial Spacing:
- 70 ft (21.3 m)
- Max Effective Area:
- 12035 ft² (1118 m²)
- Max RPM:
- 80 RPM
- Hanging Weight:
- 92 lbs (42 kg)
- Motor:
- 1 HP (0.7 kW)
- Voltage:
- 460V Three-Phase
- Package Size:
- Each
