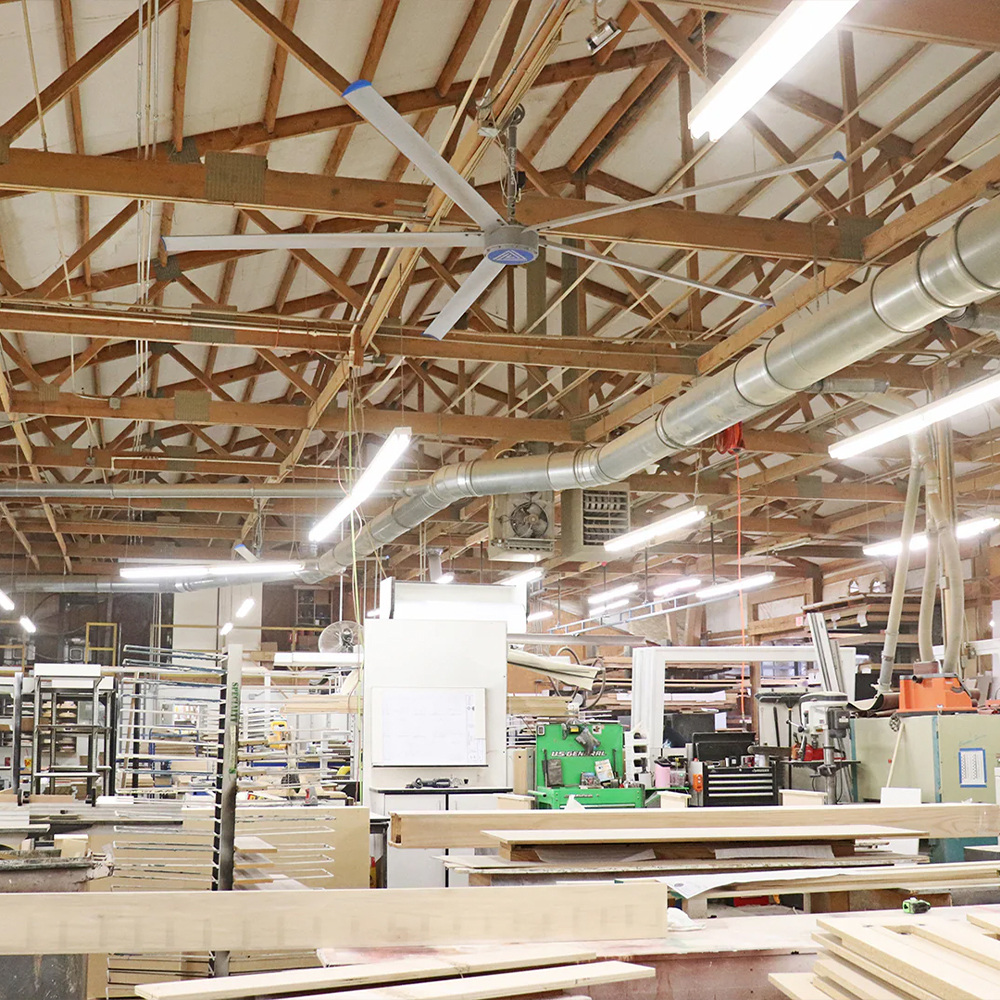

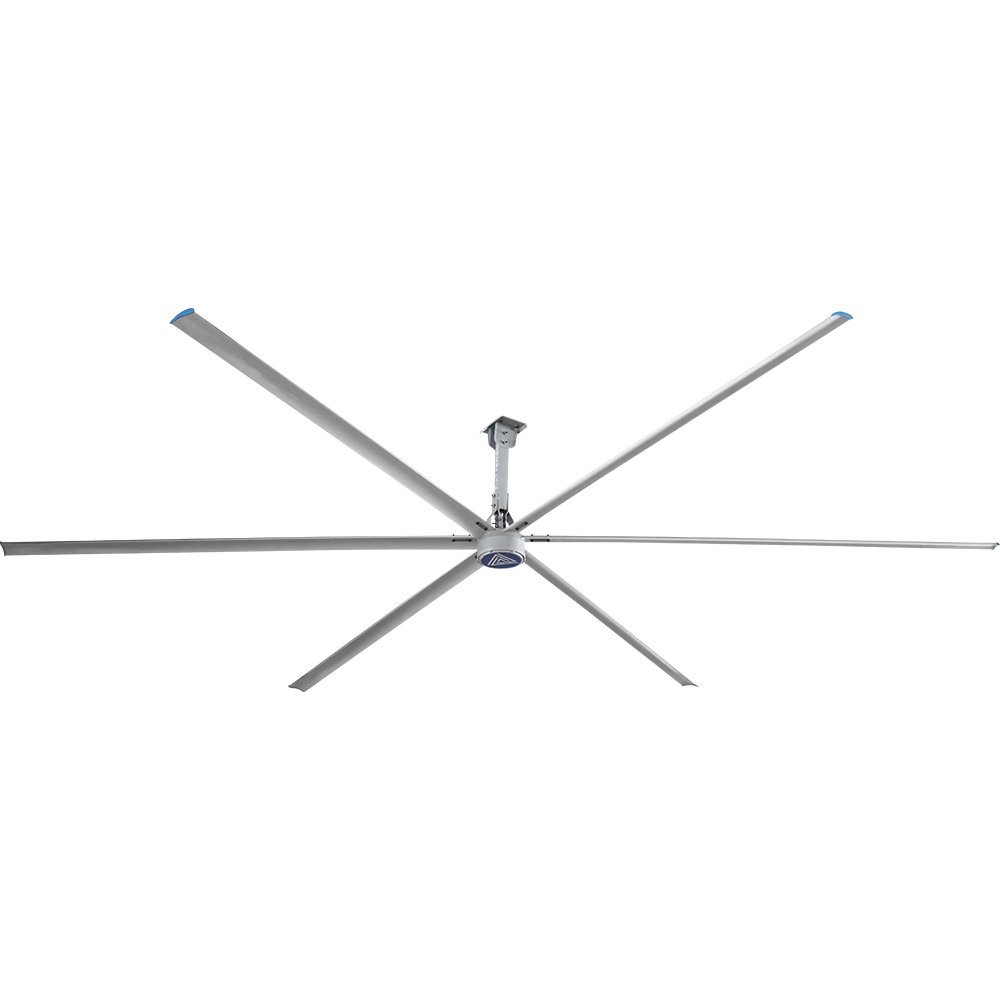

The Patterson V-Series 24' HVLS ceiling fan is a high-capacity air mover designed to cover large indoor or covered outdoor spaces with a quiet, energy-efficient breeze. Its 24-foot diameter and six contoured blades work together to move substantial volumes of air at low rotational speeds, delivering an even distribution of air across broad areas. With a direct-drive design, the unit has no gears to maintain, contributing to lower maintenance needs and fewer moving parts that could require service over time.
Key features supporting reliable operation include wingtip blade design to minimize airflow loss at the blade tips and a motor assembly rated for indoor or sheltered outdoor environments (IP66 VFD, IP54 motor), which helps ensure performance in varied facility conditions while protecting critical components against moisture and dust exposure. The fan offers forward, reverse, and variable-speed operation, enabling seasonal air movement strategies—pulling warm air down from the ceiling in cooler months and creating a cooling effect in warmer months. The system is equipped with a layered safety approach suitable for demanding industrial settings, aligning with the expectations for large-volume air handling in busy facilities.
Practical considerations include its substantial footprint and weight, which reflect power and air-handling capability appropriate for sizeable spaces left open or with high ceilings. The unit is supplied as a complete package for installation and is compatible with 208–230V three-phase power, a common supply in industrial and commercial buildings. When planning deployment, assess the space for the 24' diameter and confirm mounting provisions, electrical requirements, and weather exposure to ensure proper installation and operation in your facility.
Features:
- Direct Drive: zero gears means zero maintenance
- Wingtips reduce airflow loss from blade tips, directing air downward
- Blades contoured for maximum air movement
- Weight: significantly lighter with no gearbox
- Noise: <42 decibels for environments with sound considerations
- Forward, Reverse and Variable Speed
- IP66 VFD and IP54 motor suitable for indoor/outdoor covered spaces
- Multiple safety protections for rugged industrial settings
- Size:
- 24 ft Diameter
- Number of Blades:
- 6
- Industrial Spacing:
- 110 ft (33.5 m)
- Max Effective Area:
- 23732 ft² (2209 m²)
- Max RPM:
- 50 RPM
- Hanging Weight:
- 308 lbs (140 kg)
- Motor:
- 1.5 HP (1.1 kW)
- Voltage:
- 208-230V Three-Phase
- Package Size:
- Each
