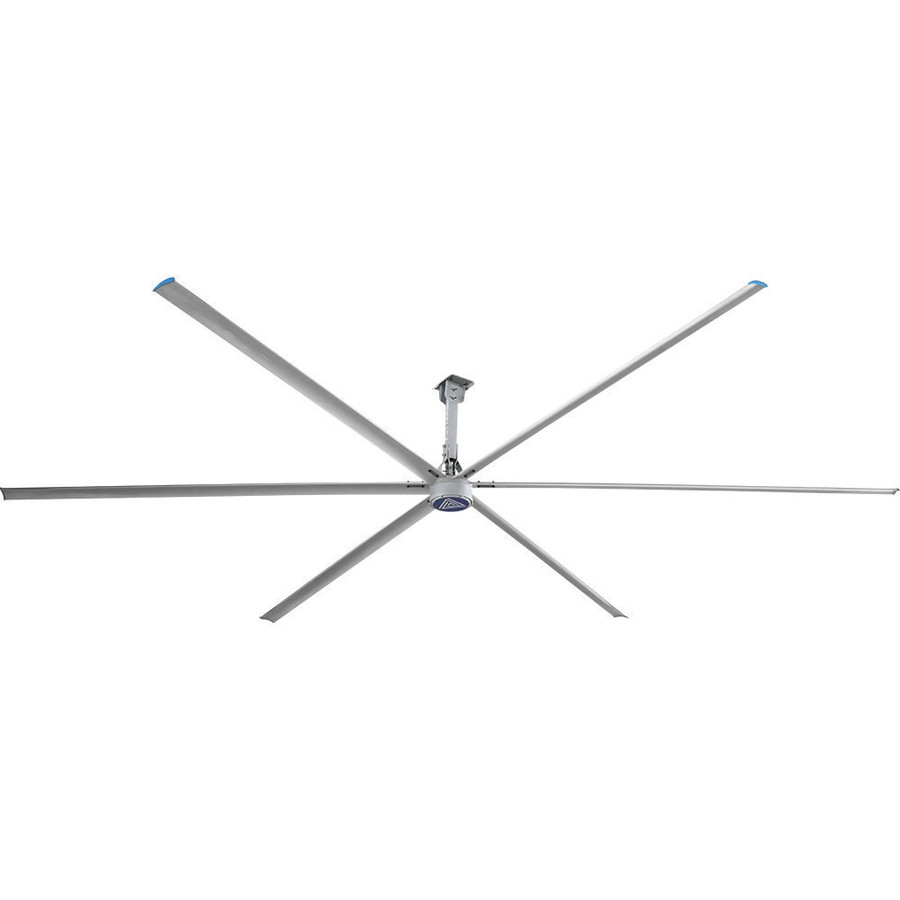

Patterson’s V-Series HVLS ceiling fan is a high-volume, low-speed solution designed to move large amounts of air in sizable spaces. The 8-foot diameter model delivers a quiet, broad airflow that helps condition large areas without floor-mounted equipment or cluttered cords, contributing to reduced trip hazards and improved floor safety. By circulating air from the ceiling downward, it can support comfort in both warm and cool seasons, potentially aiding energy efficiency when paired with existing HVAC systems.
The unit features direct-drive propulsion with no gears, which minimizes maintenance requirements and reduces overall weight relative to gear-driven designs. Blade design includes contoured blades and winglets to minimize airflow losses at the tips and maximize downward air delivery. The fan operates with forward, reverse, and variable speed control to adapt performance to seasonal needs and occupancy patterns. It’s specified for robust industrial environments with multi-tier safety protections and enclosure ratings (IP66 VFD and IP54 motor), making it suitable for indoor or covered outdoor spaces that require dependable operation in challenging settings.
Key practical considerations include its 8 ft diameter with five blades, a motor rating of 0.5 HP and three-phase 208–230 V supply, and a maximum RPM around 120, all contributing to substantial air movement over a wide area while maintaining a relatively low noise footprint. The installation footprint and weight are relevant for mounting structure and support planning, with a hanging weight of approximately 77 lb. This model is appropriate for large facilities seeking to replace multiple lower-volume fans, reduce ground moisture-related hazards, and encourage a more consistent environmental feel across expansive work zones.
Features:
- Direct Drive: zero gears means zero maintenance
- Wingtips reduce airflow loss and direct air downward
- Contoured blades for maximum air movement
- Low weight due to absence of gearbox
- Silent operation (<42 dB)
- Forward, Reverse and Variable Speed
- IP66 VFD and IP54 motor protection for indoor/outdoor covered spaces
- Multi-tier safety system for industrial environments
- Size:
- 8 ft Diameter
- Number of Blades:
- 5
- Industrial Spacing:
- 60 ft (18.3 m)
- Max Effective Area:
- 6850 ft² (636 m²)
- Max RPM:
- 120 RPM
- Hanging Weight:
- 77 lbs (30 kg)
- Motor:
- .5 HP (0.3 kW)
- Voltage:
- 208-230V Three-Phase
- Package Size:
- Each
