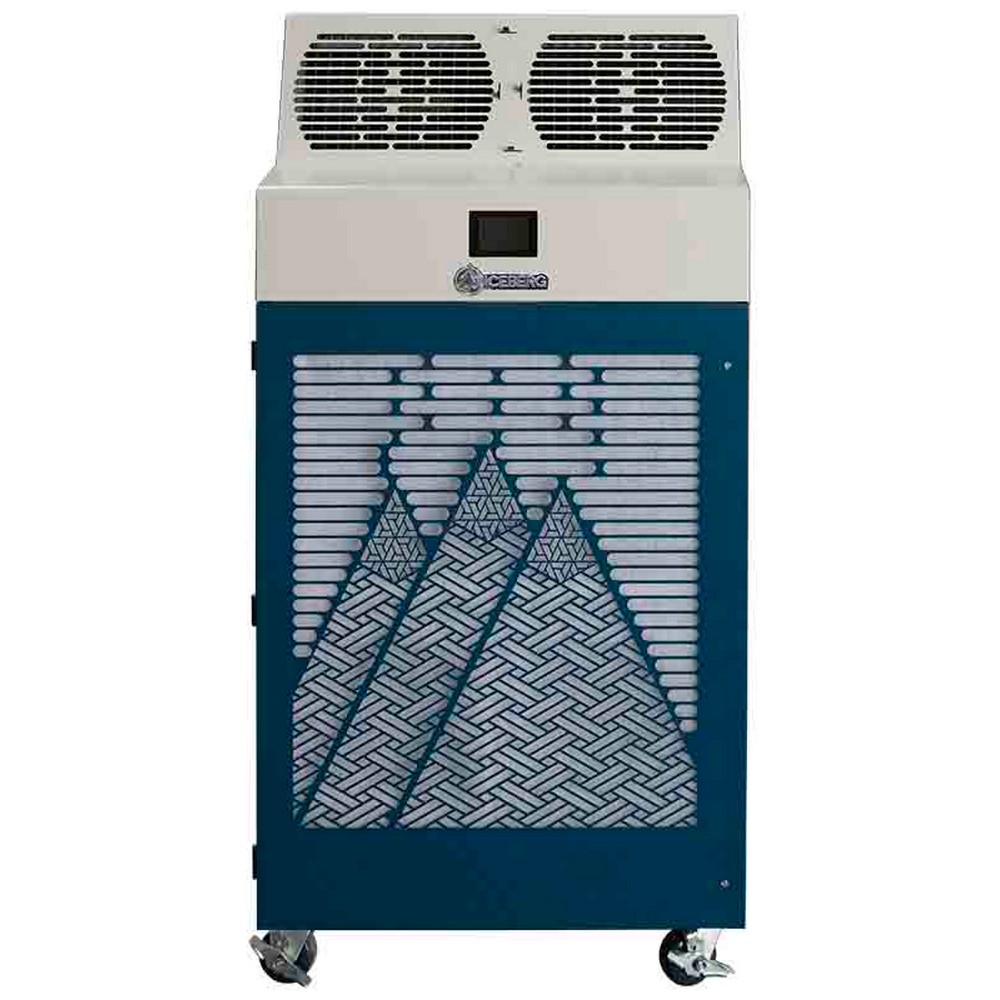

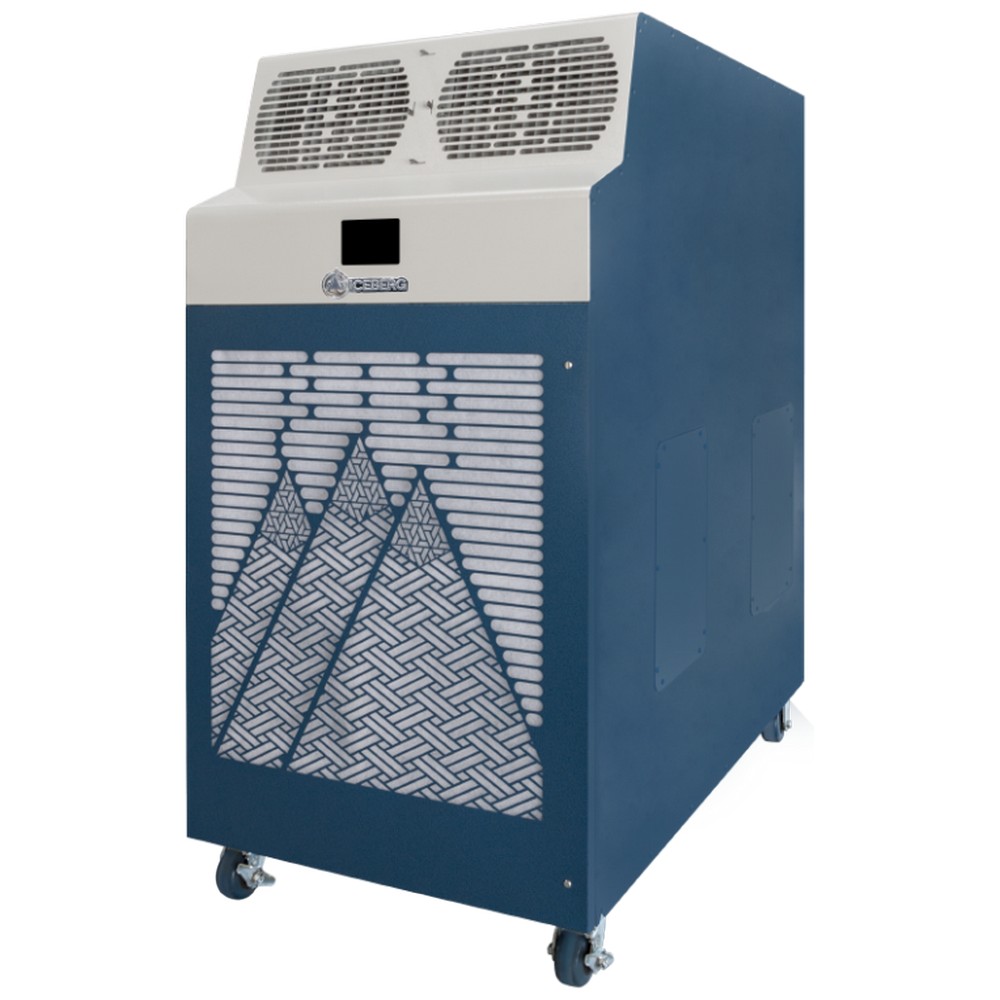

KwiKool KIB12043-3 120,000 BTU 10 Ton 460V 3PH Portable Air Conditioner

SKU:
KWIKIB12043-3
Weight:
1,100.00 LBS
$22,607.06
/ Each

Description

The Model KIB12043-3 (nominal 10-ton or 120,000 BTU) is the only indoor portable offering a unit in this size and capacity. Additionally, The KIB12043-3 is a dual-stage system for redundancy and economy. The Iceberg Series, KwiKool’s Flagship Line of portables is used for both primary and backup air conditioning. With its full-featured design, high sensible cooling, and balanced air system, the KIB12043-3 is the perfect solution for cooling server rooms. The Iceberg Series is quick and easy with its “plug and play” technology and tops the competition in its small size, big performance and tons of features. From its hi-tech microprocessor controls and self-diagnostics to the long list of standard features (most of which are not even available in other brands), the Iceberg Series outperforms, outlasts, and out features other portables and all at a price that is comparable to the no-frills products that are available.


All Iceberg Series units come standard with our exclusive I/O Integral Condenser Dual Ducting that provides isolated and balanced air pressure within the space for maximum cooling efficiency. The condenser utilizes THD, KwiKool’s exclusive Twin Hyperdrive Technology with Ultra-Low Ambient Temperature Capability using a Variable Frequency Drive. The KIB12043-3 has automatic restart after power failure and runs on a 460-volt/40-amp Three-Phase circuit, which must be installed by a qualified electrician. The unit comes with an internal high lift condensate pump and a 5-gallon exterior condensate tank with float activated unit cut off for short term use. Manufactured in the United States of America.



Special Order Item. Note Eligible For Return Or Exchange.



At The Safety Source, we keep our prices low without compromising the quality our customers expect from us. Place your order through our secure website with confidence. If you would like assistance with your order, please call us at 1-866-688-7233 or message us online now. Get the best deal with The Safety Source.

Product Features:

  • MADE IN USA
  • 120,000 BTU/H – 10 Ton capacity air-cooled
  • Compact yet Powerful
  • Two (2) stage refrigerant system
  • Ultra Low ambient controls utilizing VFD technology
  • Wide Operating range of 60ºF-110ºF
  • ETL and CETL listed to UL and CSA standards
  • Includes KwiKool’s Exclusive I/O Integral Condenser where both inlet and outlets are ductable, without costly and bulky add-on kits
  • THD Twin Hyper Drive Technology produces high volume of air without belts and eliminates all of the maintenance associated with belts
  • Multi-function microprocessor control with a large, easy-to-read LCD display
  • Easy-touch control pads make changing system settings a snap
  • Self-Diagnostics that include audible alarm and LCD visual display readout for system fault conditions
  • Input/Output Alarm Contacts for connection to building systems
  • Internal high lift condensate pumps and a 5- gallon reservoir tank for total condensate flexibility
  • Condensate overflow protection
  • Two fan speeds
  • Thermostatic Expansion Valve
  • Heavy duty compressor with automatic restart and short cycle protection
  • Motors and compressors have overload protection
  • High-pressure safety with manual reset
  • Low-pressure safety with automatic reset
  • Automatic freeze protection using hot gas bypass and fan cycling
  • Low ambient controls
  • Heavy-duty locking casters
  • Rifle tube coils for efficient heat transfer
  • Fully insulated, heavy duty galvanized steel cabinet with KwiKool’s exclusive E-Z Clean™ scratch-resistant attractive two-tone HammerCoat™ epoxy protective finish for optimum durability, efficiency, low maintenance and quiet operation
  • Sight glass with moisture indicator
  • Filter dryer for Moisture protection
  • Easy access Service Door
  • Shraeder service ports

Product Specifications:

COOLING CAPACITY 120,000 (10-Ton)
Compressor Type Scroll (2 stage)
Operating Temperatures 60-110 F 50%RH
Refrigerant R 454 B
Fan Type (Centrifugal) Belt Drive
Air Flow (CFM) 1800 / 3800
Supply Air Device Adjustable Vent
Supply Air Chute Kit (optional) 2 - 12" Dia. x 36" Length
I/O Integral Condenser Balanced Air Flow
Fan Type (Centrifugal) Direct Drive
Air Flow (CFM) 5000 Variable
Condenser Duct Specs (optional) 2 - 20" Dia. x 8' Length
Condenser Duct Max. Length 50'
Speed Control Variable Frequency Drive
Power Supply (Volts) 460 Three Phase
Current Consumption (Amps) 25.4
Power Consumption (kW) 18.9
Maximum Circuit Breaker (Amps) 50
Recommended Breaker Size 40
Minimum Circuit Ampacity(Amps) 29.45
Min./Max. Voltage 420-500
Power Cord Gauge/Length 8 AWG/10'
Plug Configuration Field Supplied
Width x Depth x Height (Inches) 33" x 58" x 69"
Weight (Lbs.) 1000
Shipping Weight (Lbs.) 1100
Ceiling Kit Weight (Lbs.) 56
Shipping Weight w/ Ceiling Kit 1156
Compressor Overload Internal
Fan Motor Overload Automatic Internal
Evaporator Freeze Protection Hot Gas Bypass
High Pressure Switch Manual
Low Pressure Switch Automatic
Compressor Short Cycle Yes
Automatic Restart Yes
Thermostat Type Microprocessor/Digital
Condensate Pump Overflow Yes
Condensate Tank Overflow Yes
Package Size Each
SKU:
KWIKIB12043-3
Weight:
1,100.00 LBS
Weight:
1100 lbs
Package Size:
Each
