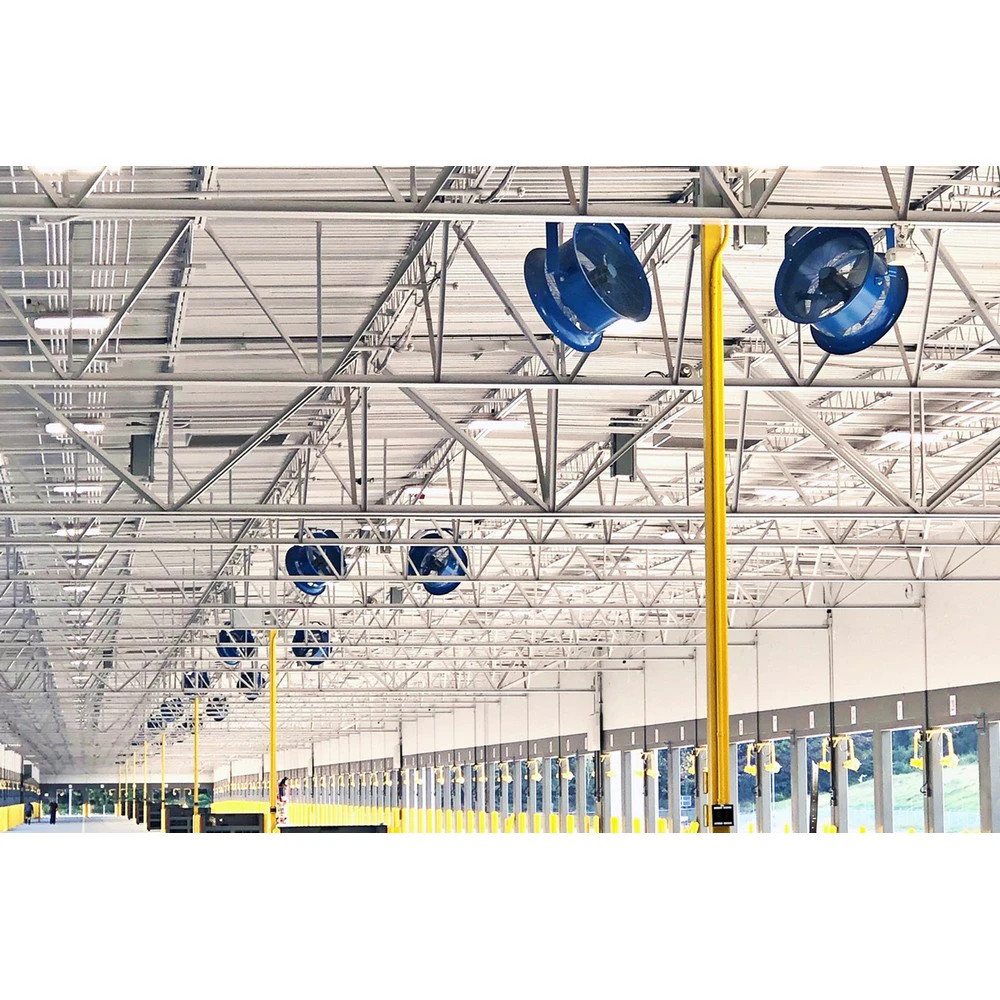

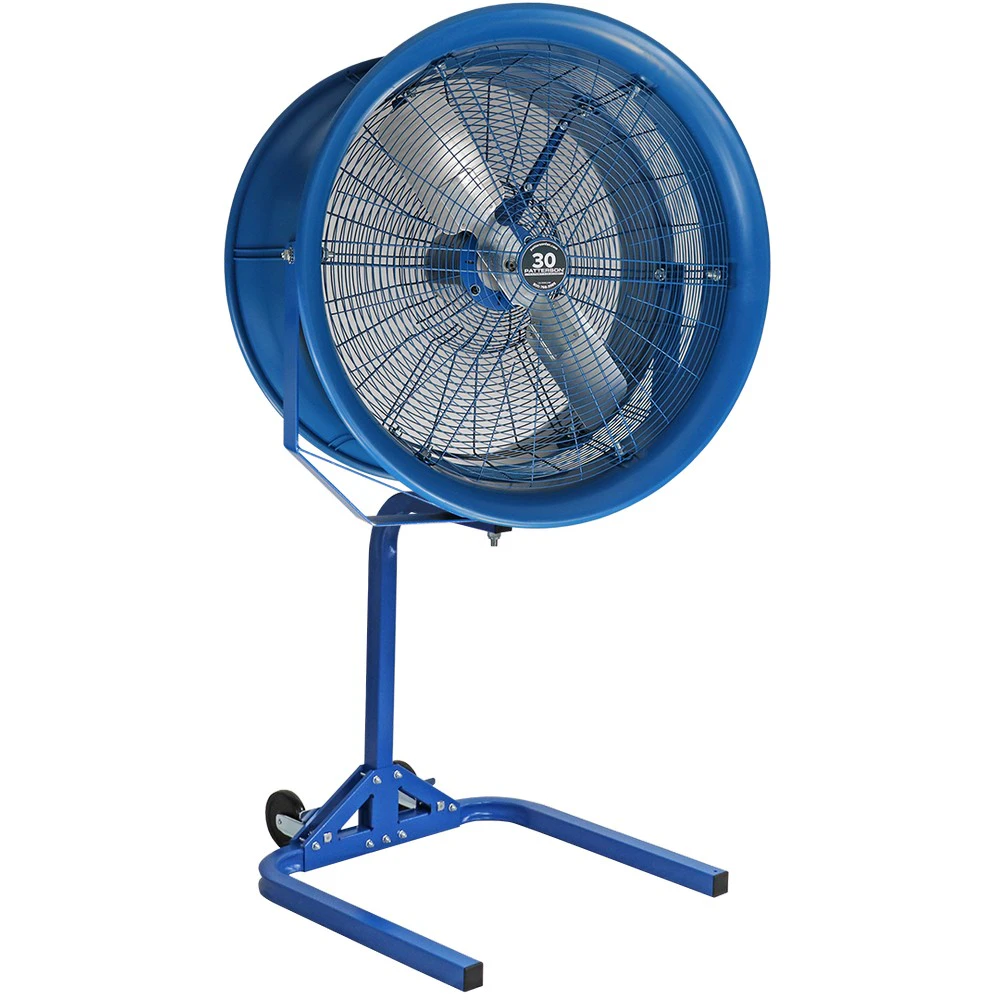

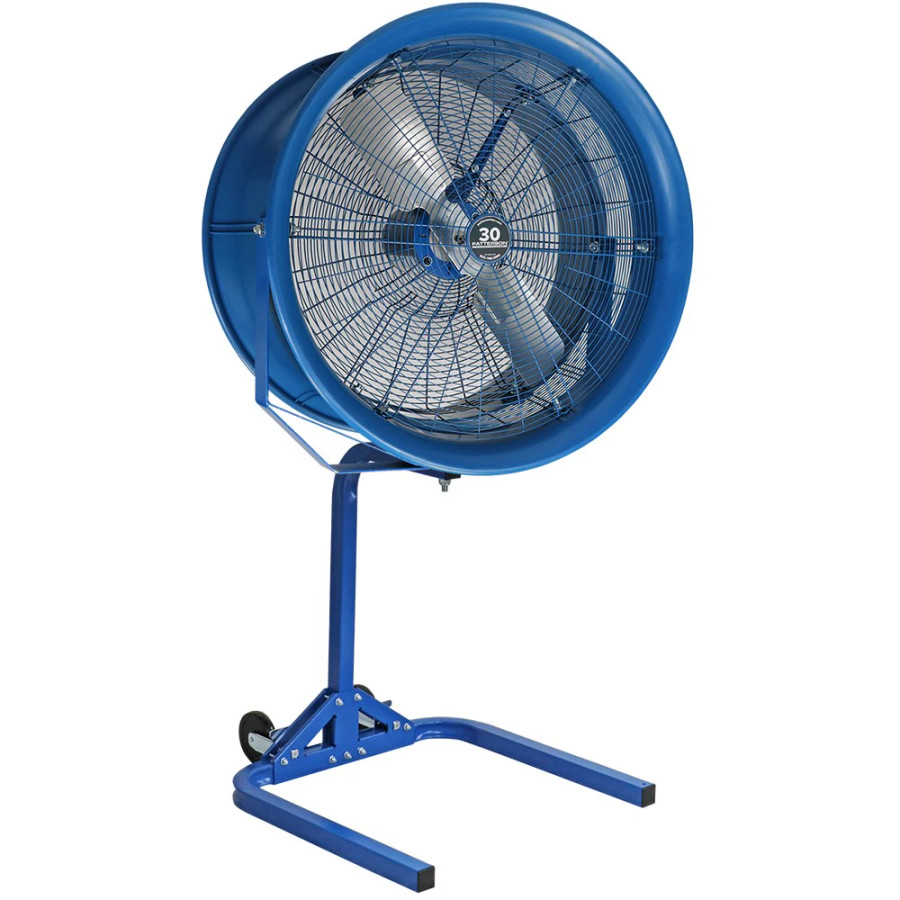

Patterson’s PS30B High Velocity Fan is a heavy-duty outdoor- or industrial-grade air mover designed to improve circulation in demanding factory, warehouse, and staging areas. It features a 30-inch diameter propeller and a two-blade galvalume design, driven by a direct-drive motor with maintenance-free, sealed bearings. The unit’s construction combines a high-impact polypropylene housing with heavy-gauge steel, and it employs a patented Venturi-designed barrel with side air inlets to project and entrain air over long distances, enabling effective ventilation across aisles, work zones, and pick modules. The fan is available in multiple voltages, including 115V through 460V, and supports optional variable-speed motors (14
Features:
- 30" diameter, 2-blade Galvalum propeller
- High-Impact Polypropylene housing with heavy-gauge steel frame
- Venturi-designed barrels for efficient air distribution
- Maintenance-free, direct-drive motor (totally enclosed)
- Multiple voltages available: 115V–460V
- Oscillator kits available; variable-speed motors (14"–22")
- OSHA-compliant steel finger guards
- Propeller:
- 30” Diameter, 2-Blade Galvalum, 15°
- Fan Inlet/Outlet:
- High-Impact Polypropylene
- Finger Guards:
- OSHA-Compliant
- Power Cord (115V Only):
- 12’ Length (Switch Optional)
- RPM:
- 1800 (standard)/ 1200 (optional)
- Decibels:
- 82.2 @ 20’ - 85.5 @ 3’ (1800)
- Coverage:
- 12,000 ft²
- Warranty:
- 2 Years
- CFM:
- 12,000
- HP:
- 1
- Width:
- 37”
- Depth:
- 22”
- Air Throw:
- 200’
- Weight:
- 99 lbs
- Package Size:
- Each
