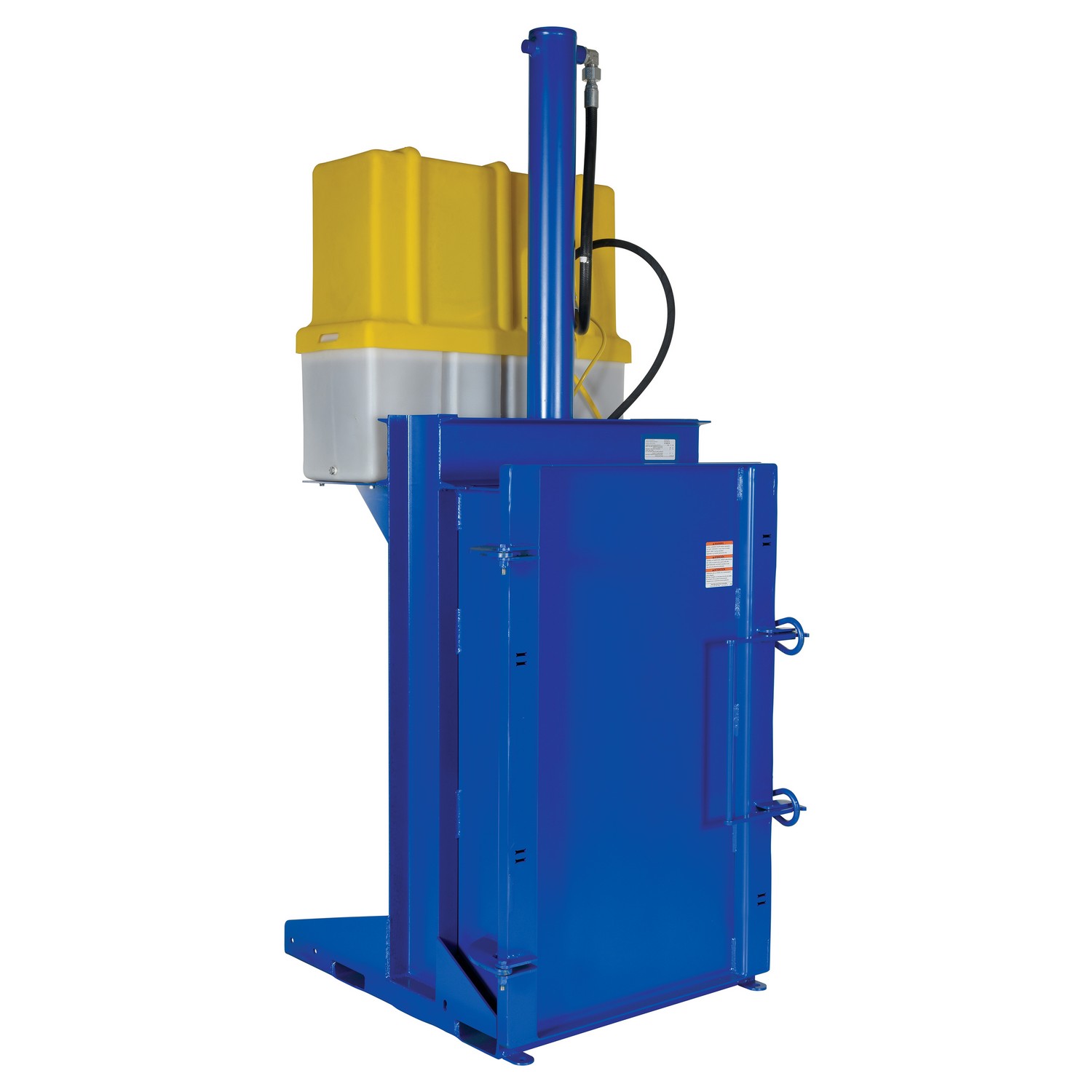

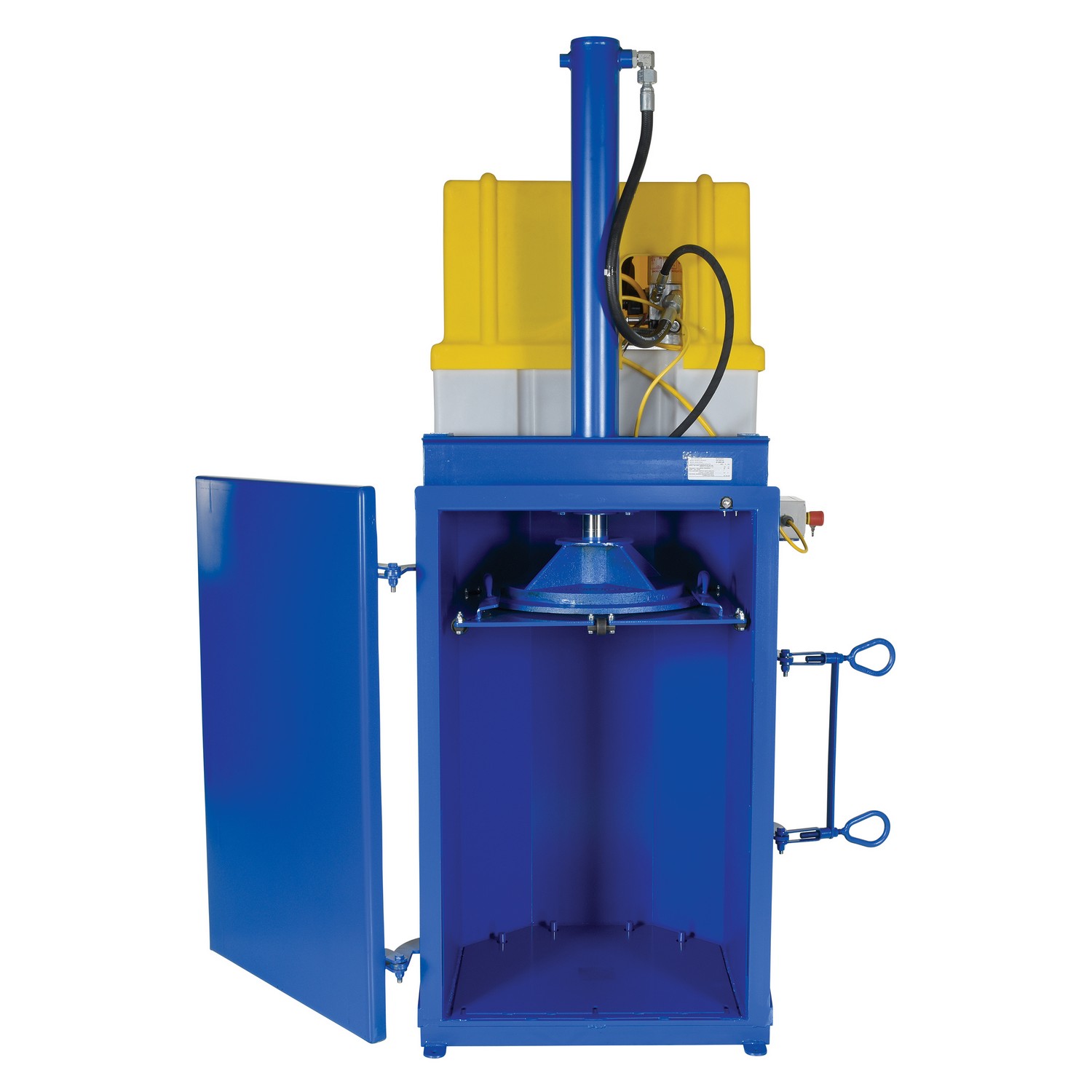

The Vestil HDC-905-IDC/460V is a hydraulic drum crusher/compactor designed to handle 55-gallon steel drums, with a dual-function capability that allows crushing of drums and, when the crushing platen is removed, mechanical compacting of drum contents. It operates on 460V three-phase power and delivers a crushing force of up to 38,000 lbs, flattening a drum to approximately 6 inches in a full cycle (crush and retract) in about 25 seconds. The unit includes safety and control features such as a powered illuminated ON/OFF switch for better visibility and a mushroom-head emergency stop, along with a door interlock system that prevents motor operation unless the access door is closed. Built-in fork pockets aid in transport, and a drip pan helps minimize oil spills during operation. An 18-gallon oil reservoir supports the hydraulic system, and the machine is constructed from steel with a blue finish.
Features:
- 38,000 lbs. crushing force to flatten drums to 6"
- 25-second full cycle time (crush and retract)
- 460V, 3-phase, 60 Hz, 6.5 HP motor
- Powered illuminated ON/OFF switch and mushroom-head emergency stop
- 21" diameter compacting platen, 25" x 25" usable chamber
- 18-gallon oil reservoir and 55-gallon drum compatibility
- Compliance with OSHA and JIC standards
- Color:
- Blue
- Material:
- Steel
- Approximate Crushed Height (in.):
- 6
- Full Cycle Time (Crush and Retract) (seconds):
- 25
- Crushing Force (lb.):
- 38000
- Motor (hp):
- 6.5
- Voltage:
- 460
- Phase:
- 3
- Hertz:
- 60
- Crushing/Compacting Drums per week (qty.):
- 250
- Compacting Platen Diameter (in.):
- 21
- Usable Chamber Length (in.):
- 25
- Usable Chamber Width (in.):
- 25
- Usable Chamber Height (in.):
- 35-3/4
- Crushing Plate Weight (lbs.):
- 75
- Oil Reservoir (Gallons):
- 18
- Max. Crushing Force (lbs.):
- 38000
- Max. Compacting Force (lbs.):
- 18000
- Drip Pan Width (in.):
- 31-1/2
- Drip Pan Length (in.):
- 4-1/2
- Drip Pan Height (in.):
- 1-5/8
- Drip Pan Capacity (gallon):
- 1
- OSHA:
- 1910.212
- ANSI:
- Z245.5
- Standards:
- JIC
- Package Size:
- Each
