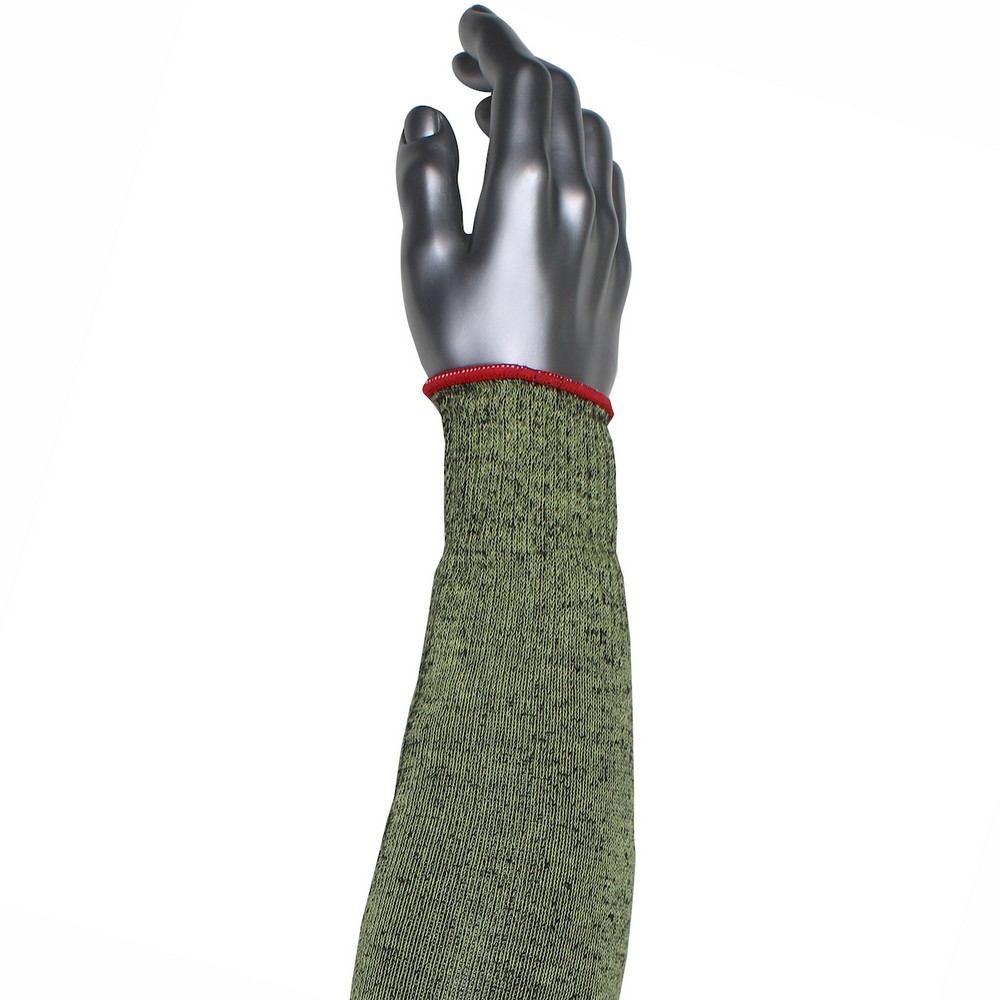

The PIP S10ATAFR/5HA-NW-ES6-18 is a single-ply ATA Hide-Away FR sleeve designed to provide lightweight cut resistance in the forearm area while offering a streamlined fit. The sleeve uses ATA Fiber Technology with Modacrylic, delivering ANSI A5 cut protection and meeting the ASTM F1358-08 Vertical Flame Test with a Level 2 rating, helping address environments where both cut resistance and flame resistance are considerations. The knit construction is machine-made and seamless, contributing to a comfortable, unobtrusive layer that covers from the top of the arm down toward the wrist. A color-coded edge indicates width (red for narrow, yellow for standard, green for wide) to help with quick sizing decisions on the job floor, and a non-slip top arm feature helps keep the sleeve in place during movement, while a knit wrist provides continuous coverage without the tighter binding that can come with elastic closures.
This sleeve is built for practical use in settings that require durable, washable protection. It demonstrates abrasion resistance per the stated ANSI and ASTM tests and is rated for repeated laundering, aligning with common maintenance routines in industrial environments. The fabric is reusable and launderable, with recycling support through the Terracycle program, reflecting a sustainability angle for workplaces pursuing responsible waste management. The product’s specifications note a 10-gauge knit for cooler wear, and it is designed to resist abrasion over repeated cycles, which matters for applications involving frequent arm movement and contact with rough surfaces.
For proper use, refer to the included spec sheet for exact performance metrics and care instructions. The sleeve is offered in multiple widths to accommodate workers with varying arm sizes, and packaging is bulk banded with a case quantity of 72, making it suitable for order frequency in maintenance and production environments. Wash at up to 40°C, tumble dry on low heat, and avoid bleach to help preserve material performance over time.
Features:
- ANSI A5 cut protection with ASTM F1358-08 Level 2 flame resistance
- Three widths: narrow, standard, wide for personalized fit
- 10 gauge knit for cool, comfortable wear
- Color-coded width identification (red = narrow, yellow = standard, green = wide)
- No-Slip top elastic helps sleeves stay in place
- Knit wrist stays in place with superior comfort and protection
- ASTM D3884-09 abrasion resistance (Level 1, 290 cycles)
- Liner Material:
- ATA Fiber Technology, Modacrylic
- Sustainability:
- Reusable / Launderable, Recyclable via Terracycle Program
- ANSI Method:
- TDM
- ANSI Gram:
- 2639
- ANSI Cut:
- 4
- ANSI Cut Level:
- A5
- ANSI Abrasion Level:
- 1
- ANSI Abrasion Cycles:
- 290
- Construction:
- Machine Knit, Seamless Knit
- ASTM F1060:
- 2
- ASTM F1060 Temp:
- 284° F
- ASTM F1358:
- 2
- Ply:
- Single-Ply
- Top Arm Option:
- Non-Slip
- Packaging:
- Bulk Banded
- Taa Comp:
- 1
- High Frequency:
- 0
- Medium Frequency:
- 0
- Low Frequency:
- 0
- Wash Instructions:
- Machine Wash
- Wash Temp:
- Water Temp 40°C
- Bleach:
- Do Not Bleach
- Dry Instructions:
- Tumble Dry
- Dry Temp:
- Low Heat
- Package Size:
- Each
- Case Quantity:
- 72
