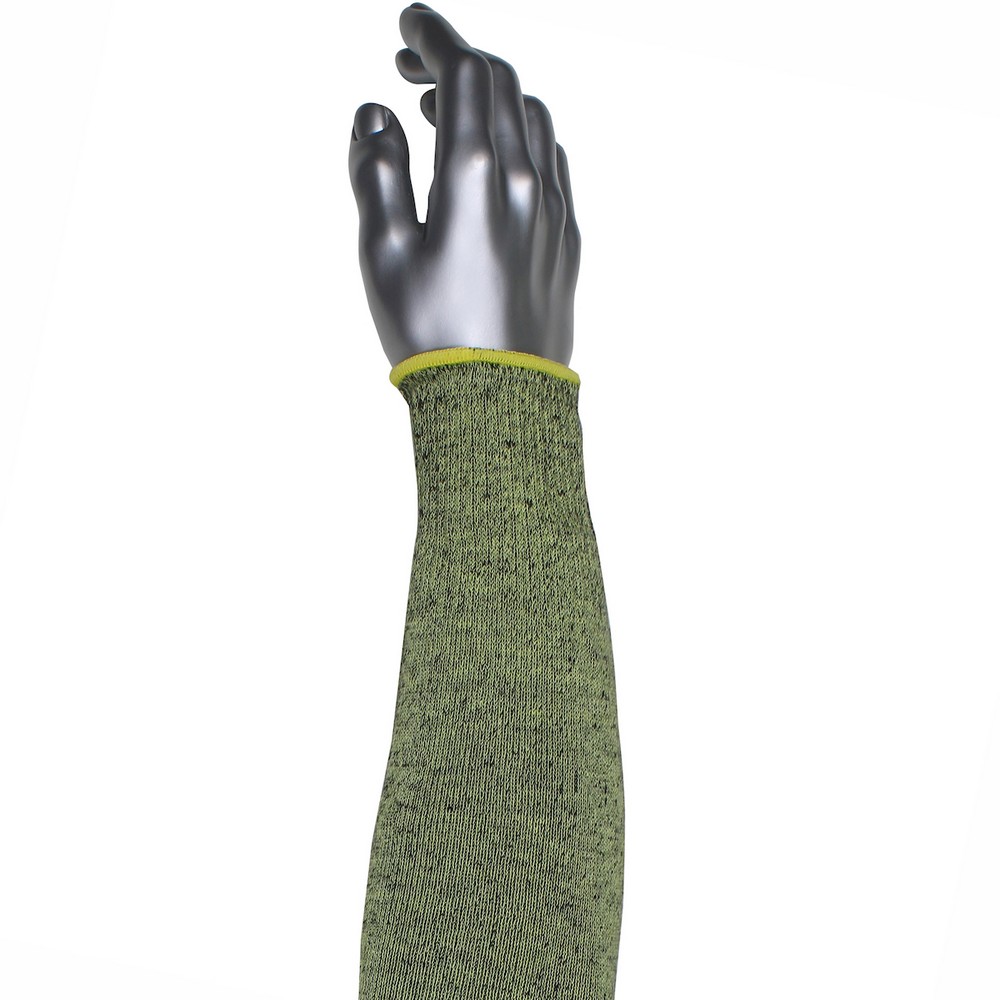

The PIP S10ATAFR/5HA-ES6-22 is a single-ply ATA Hide-Away FR sleeve designed to provide cut protection with lightweight comfort for the forearm. Its ATA Fiber Technology uses a modacrylic blend to deliver ANSI A5 cut resistance, while the 10-gauge knit construction keeps the sleeve cool during extended wear. The sleeve is available in three widths—narrow, standard, and wide—to accommodate a range of arm sizes and preferences, with color-coded overedge (red for narrow, yellow for standard, green for wide) to simplify sorting and inventory management. A non-slip top edge and a knit wrist help keep the sleeve in place and provide coverage from top to bottom without the constraint of a tighter elastic at the wrist. The material is machine knit and seamless, contributing to a comfortable, unbroken layer of protection.
From a practical standpoint, the sleeve meets ASTM F1358-08 and demonstrates vertical flame resistance in the specified testing regime, contributing to performance in environments where both cutting and flame-related risks may be present. The product is reusable and launderable, with care instructions indicating machine wash and a 40°C wash temperature, tumble dry on low heat. It is designed for bulk banded packaging and is labeled with its top-arm option as non-slip for stable wear. The ANSI-related data shows a cut level of A5 and abrasion resistance with a single-ply construction, making it suitable for tasks requiring an unobtrusive sleeve that still contributes protective coverage.
For compatibility and maintenance, the sleeve’s liner material is listed as ATA Fiber Technology, Modacrylic, and it is intended for reuse across multiple shifts or jobs, with recycling options available via Terracycle. Packaging details indicate individual packaging with a case quantity of 72, making it straightforward to stock and distribute in a facility setting. When selecting sizes, consider arm circumference and the need for a secure fit to minimize sleeve movement during use.
Features:
- ANSI A5 cut protection via Proprietary ATA Technology
- ASTM F1358-08 Vertical Flame Test passes Level 2
- Three widths available: narrow, standard, wide for personalized fit
- 10 gauge knit for cool, comfortable wear
- Color-coded overedge indicates width (red = narrow, yellow = standard, green = wide)
- No-Slip elastic at the top helps sleeves stay in place
- Knit wrist stays in place with full-length cut protection
- ASTM D3884-09 Level 1 abrasion resistance
- Liner Material:
- ATA Fiber Technology, Modacrylic
- Sustainability:
- Reusable / Launderable, Recyclable via Terracycle Program
- ANSI Method:
- TDM
- ANSI Gram:
- 2639
- ANSI Cut:
- 4
- ANSI Cut Level:
- A5
- ANSI Abrasion Level:
- 1
- ANSI Abrasion Cycles:
- 290
- Construction:
- Machine Knit, Seamless Knit
- ASTM F1060:
- 2
- ASTM F1060 Temp:
- 284° F
- ASTM F1358:
- 2
- Ply:
- Single-Ply
- Top Arm Option:
- Non-Slip
- Packaging:
- Bulk Banded
- Taa Comp:
- 1
- High Frequency:
- 0
- Medium Frequency:
- 0
- Low Frequency:
- 0
- Wash Instructions:
- Machine Wash
- Wash Temp:
- Water Temp 40°C
- Bleach:
- Do Not Bleach
- Dry Instructions:
- Tumble Dry
- Dry Temp:
- Low Heat
- Package Size:
- Each
- Case Quantity:
- 72
