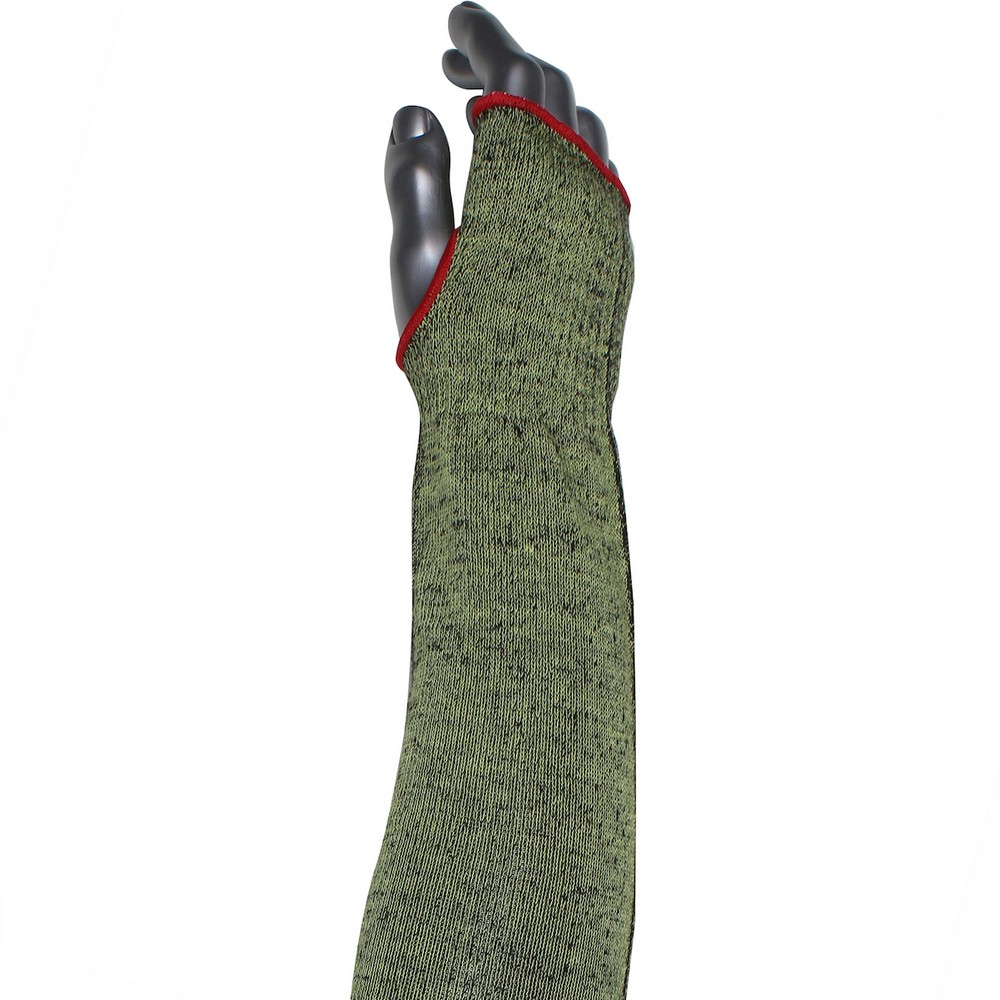

The PIP S10ATAFR/5HA-NW-ES6-22T is a single-ply ATA Hide-Away FR sleeve designed to provide lightweight cut protection with a focus on comfortable wrist-to-forearm coverage. It features modacrylic-blended fibers that enable ANSI A5 cut resistance while maintaining a cool, breathable knit. The sleeve is offered in three widths—narrow, standard, and wide—to accommodate varying arm sizes and ensure a secure, non-restrictive fit. A color-coded overedge (red for narrow, yellow for standard, green for wide) helps with quick size identification, and the top includes a non-slip arrangement to help keep the sleeve in place during movement. The knit wrist is designed to stay in place without excessive constriction, assisting continuous protection from top to bottom.
Constructed with machine-knit, seamless knit technology, the sleeve uses ATA Fiber Technology and Hide-Away modulation to achieve ANSI A5 protection and a vertical flame test result of Level 2 per ASTM F1358-08. The assembly is a single-ply design rated for high-temperature exposure up to 284°F (ASTM F1060), and it emphasizes duty cycles where durability and flexibility are important. The liner material combines ATA Fiber Technology with Hide-Away and Modacrylic, resulting in a reusable and launderable product that is recyclable via Terracycle.
These sleeves are well-suited for tasks requiring forearm and upper-arm skin protection where cut resistance and flame resistance are of concern, such as handling materials that pose minor cut and heat risks. They are compatible with standard PPE practices and can be machine washed at up to 40°C with low-heat tumble drying. Packaging is bulk banded, with a typical case quantity of 72 pieces, and each sleeve is sold individually. The product is identified by the manufacturer part number S10ATAFR/5HA-NW-ES6-22T and is categorized under PPE.
Features:
- ANSI A5 cut protection via Proprietary ATA Technology
- Three widths: narrow, standard, wide for personalized fit
- 10 gauge knit for cool, comfortable wear
- Color-coded overedge indicates width (red=narrow, yellow=standard, green=wide)
- No-Slip top elastic helps keep sleeve in place
- Knit wrist stays in place with cut protection top-to-bottom
- Reusable / Launderable, Terracycle recycling option
- Liner Material:
- ATA Fiber Technology, Hide-Away, Modacrylic
- Sustainability:
- Reusable / Launderable, Recyclable via Terracycle Program
- ANSI Method:
- TDM
- ANSI Gram:
- 2639
- ANSI Cut Level:
- A5
- Construction:
- Machine Knit, Seamless Knit
- ASTM F1060:
- 2
- ASTM F1060 Temp:
- 284° F
- ASTM F1358:
- 2
- Ply:
- Single-Ply
- Top Arm Option:
- Non-Slip
- Finger Thumb Option:
- --Thumb Hole--
- Packaging:
- Bulk Banded
- Taa Comp:
- 1
- High Frequency:
- 0
- Medium Frequency:
- 0
- Low Frequency:
- 0
- Wash Instructions:
- Machine Wash
- Wash Temp:
- Water Temp 40°C
- Bleach:
- Do Not Bleach
- Dry Instructions:
- Tumble Dry
- Dry Temp:
- Low Heat
- Package Size:
- Each
- Case Quantity:
- 72
