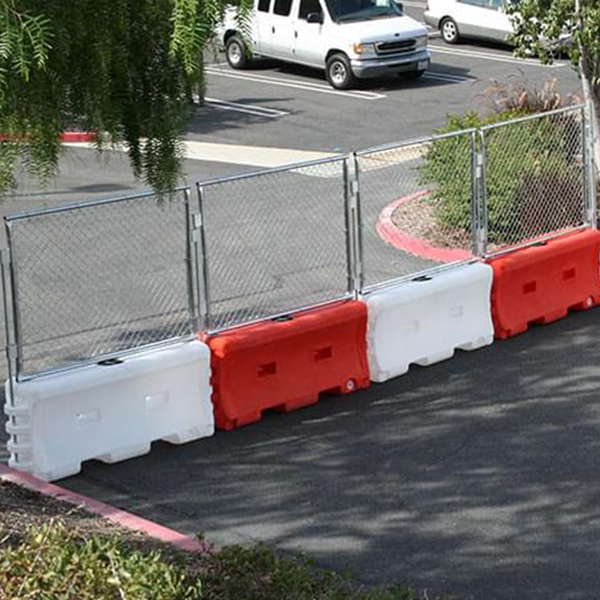

The VizCon 45032-WWF TrafFix 6' x 4' Water-Wall Fence Panel is a galvanized steel mesh barrier designed to retrofit onto the top of TrafFix Water-Wall barriers, creating an integrated security extension for work zones. Each fence section is fabricated from 11-gauge galvanized steel mesh attached to vertical posts, with dimensions of 6 feet in length and 4 feet in height. The assembly connects to the Water-Wall via T-pins that extend down through the fence into the wall knuckles, and each T-pin includes an upper-hole for a security bolt to further deter tampering. When combined with the Water-Wall, the system contributes to a stable enclosure that remains functional even on uneven ground, thanks to interlinking sections and the ability for the Water-Wall and fence to rotate up to 30 degrees for layout flexibility.
Key construction details support both visibility and security: the 11-gauge steel mesh provides a sturdy barrier while allowing visibility into the work area, and the fence sections are designed to interlock with the TrafFix Water-Wall for enhanced overall stability. A single 6-foot gate or a 12-foot double gate option is available to provide controlled access for workers and vehicles. The Water-Wall itself can be filled with water to reach approximately 1,110 pounds for maximum stability, and the overall height of the combined installation is a minimum of 84 inches when installed. This system is suitable for temporary or semi-permanent job sites where a secure perimeter and adjustable layout are beneficial.
Practical considerations include the no-need-to-remove the fence to fill the Water-Wall, with fill caps conveniently accessible while the fence remains in place. This product is packaged as an individual fence panel, ready to install as part of a TrafFix Water-Wall security setup, and is compatible with 6' or 12' gate configurations to suit site ingress and egress requirements.
Features:
- Retrofits TrafFix Water-Wall to create an imposing barrier
- 11 gauge galvanized steel mesh for security and visibility
- Interlinks with TrafFix Water-Wall for stability and ground-height adjustments
- Can rotate up to 30 degrees for flexible layout
- Upper-end T-Pin security bolt hole increases protection
- Fill caps accessible without removing the fence
- Supports 6' or 12' double gate for access
- Height:
- 4'3
- Length:
- 6'
- Gauge:
- 11
- Material:
- Galvanized Steel
- Package Size:
- Each
