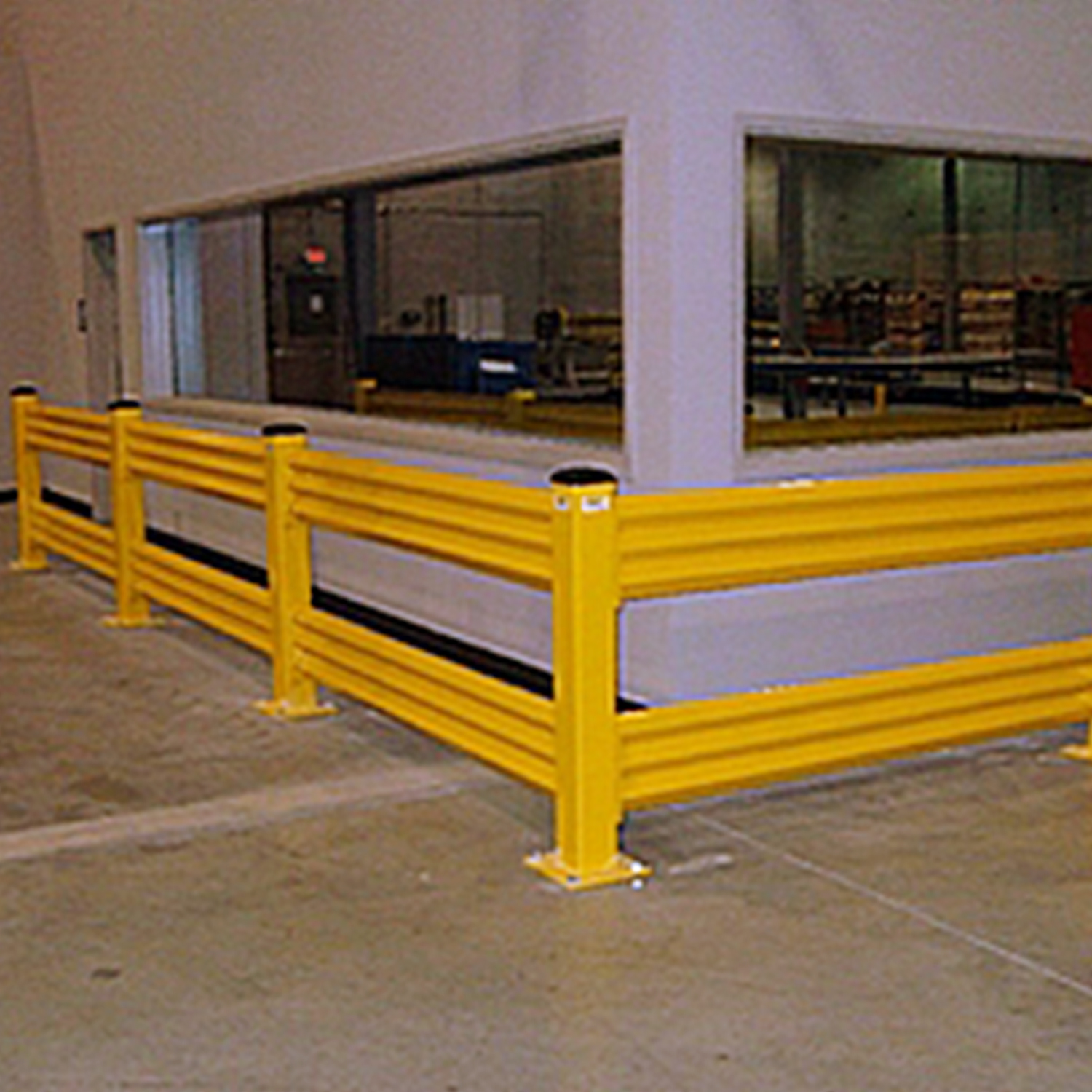

The Savety Yellow 18" End Post Guardrail is a structural component designed to extend the life and integrity of Savety Yellow guard rails in facility settings. This end post serves as the terminating element for the railing run, providing a stable anchor point that helps define the boundary and support the guard system at its end. Constructed from durable steel, the 18-inch posts contribute to a consistent, reliable barrier along walkways, docks, or perimeters where impact resistance and steel integrity are important.
The post features a 4-inch dimension and a robust base with a 10" x 10" x 1/2" plate, rated to withstand 10,000 pounds at 5 mph impact, which supports moderate impact scenarios commonly encountered in industrial environments. Sleeves are welded directly to the posts, eliminating the need for separate brackets and reducing installation complexity. This approach can significantly shorten installation time while maintaining rigidity and alignment with the rails. Posts are available in other heights (18", 26", 42"), and rails come in lengths from 2' to 10' in one-foot increments, measured center-to-center between posts.
For installation options, 5/8" x 4.75" anchors are available on request to further secure the end post when mounting conditions call for additional anchoring. The system is designed so that rails and posts work together within standard Savety Yellow guard rail configurations, supporting consistent installation practices across projects. Consider lead times when quoting, as item availability may affect shipping schedules. This description reflects the end post variant identified by the manufacturer part number SYP4RPE-18 and is intended to guide correct selection within a Savety Yellow guard rail system.
Features:
- 10 gauge high-tensile steel rails
- 4" posts with a 10" x 10" x 1/2" base plate
- 10,000 lb at 5 mph impact rating
- Installs in half the time; no hardware needed

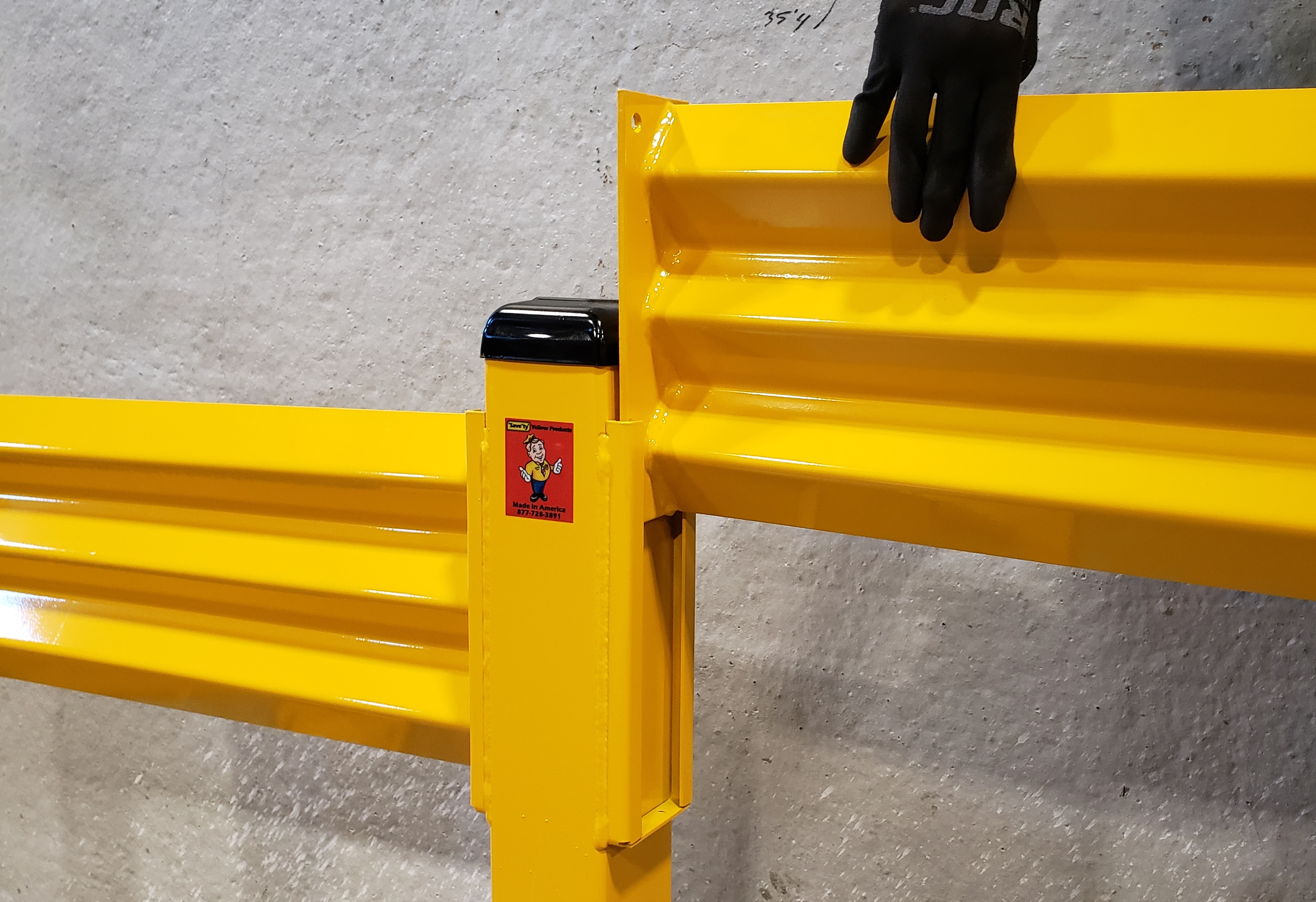

- Sleeves welded directly to posts; no brackets
- Post heights: 18", 26", 42"
- Rails from 2' to 10' (one-foot increments)
- Center-to-center rail measurement
- Height:
- 18
- Material:
- Steel
- Color:
- Yellow
- Package Size:
- Each
