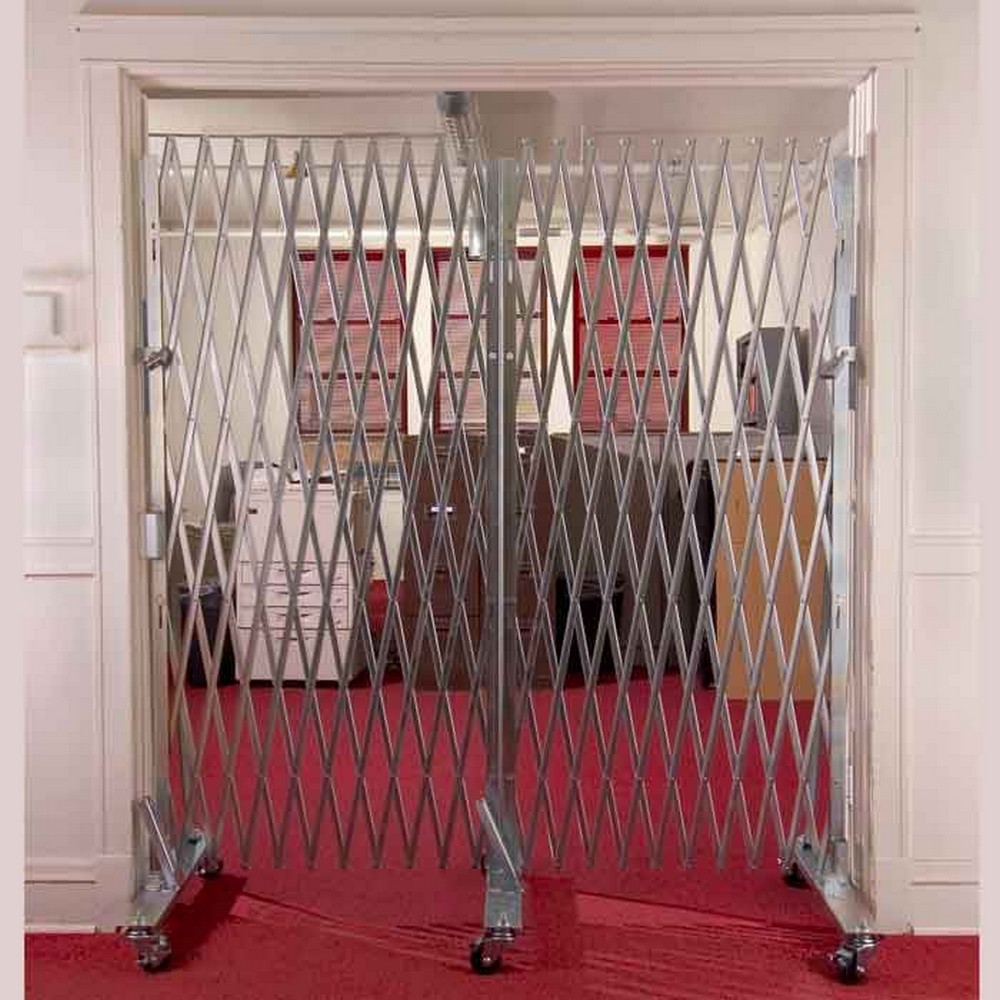

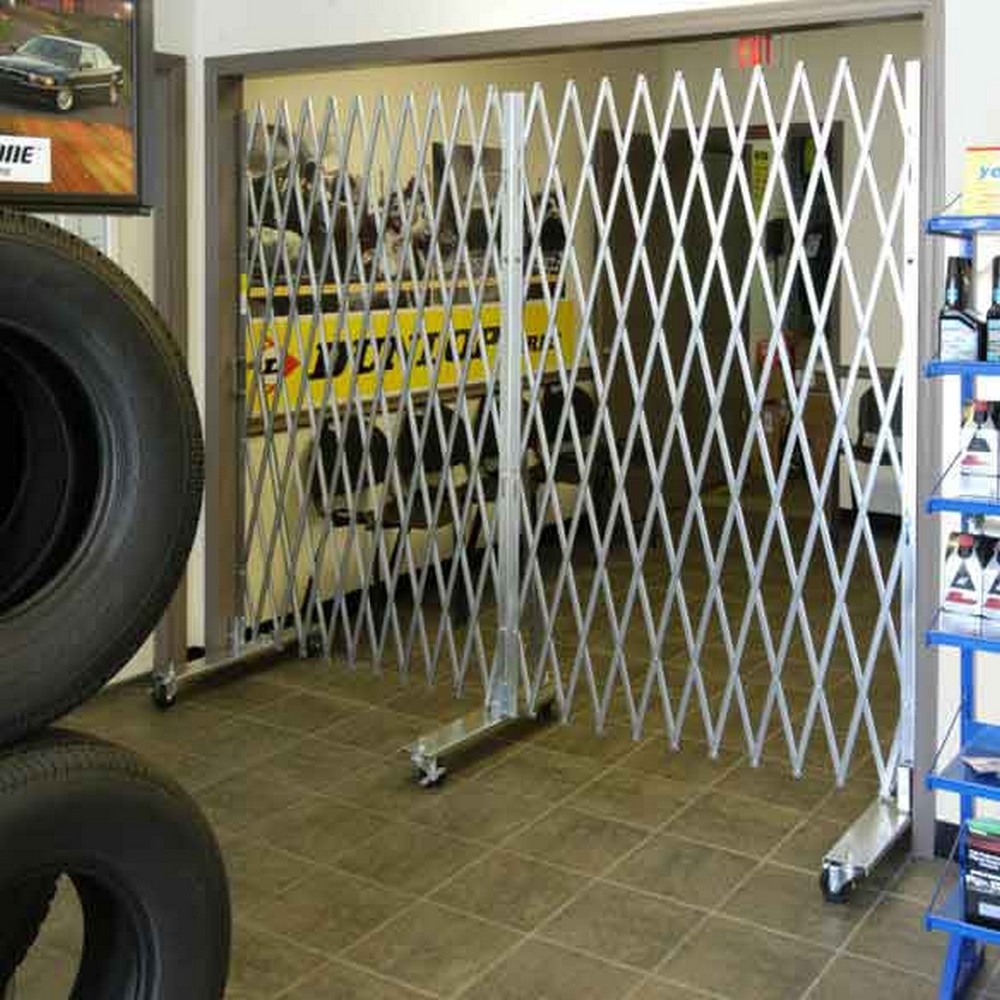

The Illinois Engineered Products XL665 Portable Folding Gate is a heavy-duty, collapsible barrier designed for quick, temporary access control across a variety of spaces. It functions as a versatile security solution that can seal off hallways, elevator banks, work areas, or storefronts while still allowing air and light to circulate. When not in use, the gate folds compactly and rolls away for easy storage, making it suitable for temporary deployments in offices, factories, warehouses, schools, and retail environments.
Constructed as a heavy-duty gate with an expanding design, the XL665 features a starter unit and adders that can be connected to create a barrier exactly the size you need. The landscape of components includes galvanized lattice and zinc-plated framing with a robust axle and casters, enabling straightforward setup and reliable performance. The unit ships unassembled and includes a 3-inch caster system for mobility, with a padlock hasp for securing the gate when deployed. The design supports variable widths up to 6 feet and a collapsed height of 78 inches, with a total height of 6 feet 6 inches when extended, and a weight of approximately 64 pounds per unit.
This setup is well-suited for environments that require barrier flexibility and temporary access control. The system offers options for unlimited adder gates to extend the barrier, and extra heavy-duty configurations are available with wall-mount or floor-mount attachment options for more permanent installations. The combination of portable mobility, expandable length, and secure locking features makes it a practical choice for managing access without sacrificing airflow or visibility.
Features:
- Instant security coverage for openings when needed
- Expandable to required width with starter plus unlimited 6-foot adders
- Folds and rolls away for compact storage when not in use
- Heavy-duty design with 3" caster mobility and padlock hasp for securing
- Collapsed height: 78"; suitable for quick deployment and reconfiguration
- Attachment options include wall mount or floor mount on extra heavy-duty models
- Width:
- Up to 6'
- Height:
- 6' 6
- Depth:
- 11 Stacked
- Fits Widths:
- 6'
- Expanded Height:
- 6'
- Collapsed Height:
- 6' 6
- Type:
- Heavy duty, adder
- Attachment:
- Wall
- Lattice:
- 3/8 x 3/4 14 gauge galvanized with 3/16 x 1/2 zinc plated steel rivets
- Frame:
- 1-1/2 x 1-1/2 12 gauge zinc plated angle iron
- Axle:
- 28 wide w/ 2 casters 3 dia w/ 12 gauge CRS brackets in channel construction and zinc plated
- Support Bars:
- 3/4 galvanized round tubing
- Transport Strap:
- 11 gauge U-channel welded to axle
- Locking Bar Wall Mount:
- 12 gauge, 3/16 zinc plated angle iron
- Assembly:
- Ships unassembled
- Casters:
- 3 Rubber Locking
- Weight:
- 64.0 lbs. ea.
- Package Size:
- Each
