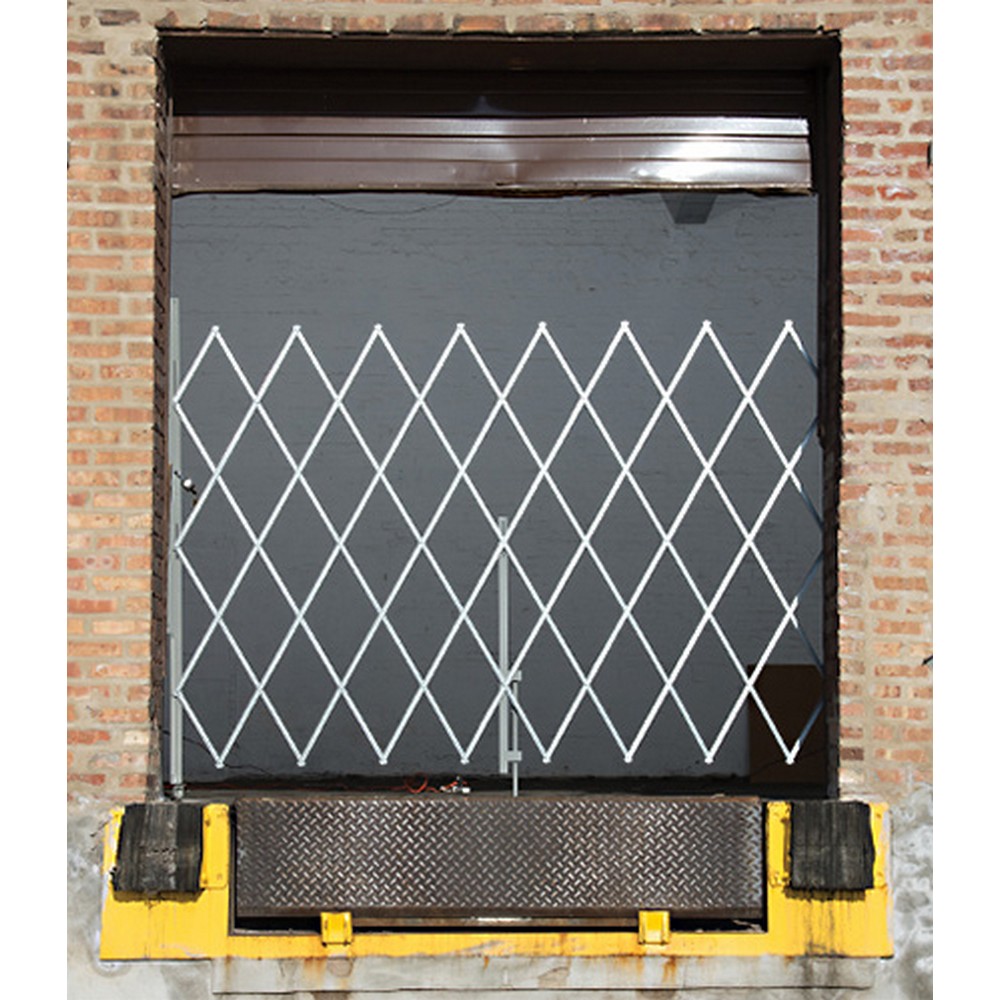

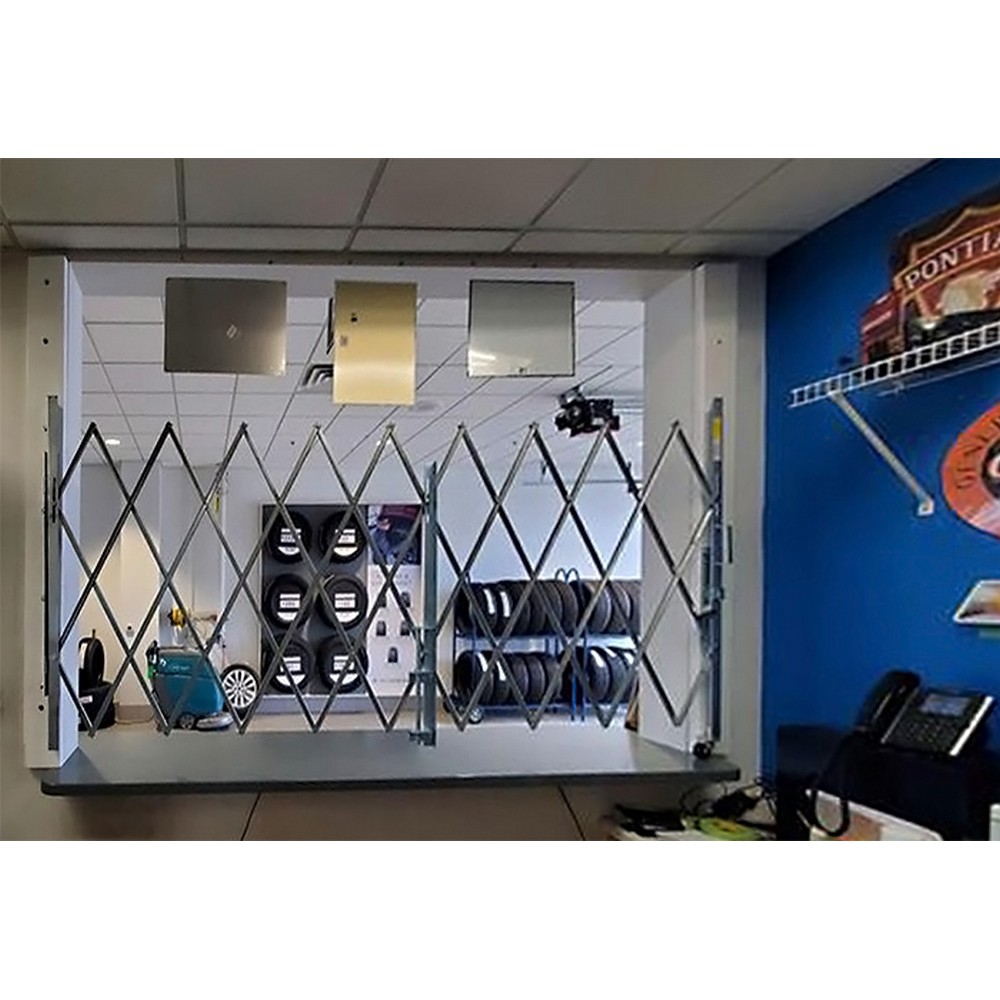

The Illinois Engineered Products XLECO1265 is a portable single starter folding gate designed to secure access points without hindering visibility or airflow. It is built to be lightweight by using 100% recycled materials and reduced steel, which helps lower weight while maintaining determent effects comparable to heavier gates. The gate features galvanized construction and solid hinge pins, with 180-degree swing capability and a tight stack for storage beside openings, enabling quick deployment or retreat as needs change at loading docks, service doors, hallways, or entrances.
Construction details include lattice formed by 15 gauge recycled steel U-channel webbing riveted back-to-back with aircraft quality aluminum rivets, and a frame built from recycled and galvanized angle iron. The system folds back to a compact stack and can be mounted using supplied brackets. A steel drop-pin security mechanism on both sides and a padlock-hasp lock provide added access control while preserving visibility. The gate is supplied unassembled and includes components necessary for installation. The stated dimensions show an opening width up to 12 feet, with an open height of 6 feet and a closed height of 6 feet 6 inches, and a depth of 10 inches when stacked, supporting flexible use in varied doorway and doorway-adjacent configurations.
Features:
- Uses less steel in construction for a lighter, more economical gate
- Made with 100% recycled materials to reduce waste
- Open grid design allows greater air circulation
- Sturdy galvanized steel construction with solid hinge pins
- Swings 180 degrees on hinges
- Folds back to a tight stack at the side of the opening
- Frames and lattice: recycled and galvanized components with aircraft aluminum rivets
- Width:
- Up to 12'
- Height:
- 6' 6
- Depth:
- 10 Stacked
- Fits Widths:
- up to 12'
- Height (Open):
- 6'
- Height (Closed):
- 6' 6
- Type:
- Portable Economy Single Starter
- Lattice:
- 15 gauge recycled steel U-channel webbing (galvanized) riveted back-to-back with aircraft quality aluminum rivets
- Frame:
- 1-1/2 x 1-1/2 vertical recycled and galvanized angle iron with solid steel casters
- Finish:
- Galvanized (powder coating unavailable)
- Assembly:
- Ships unassembled
- Warranty:
- 1-year manufacturer warranty
- Weight:
- 106.0 lbs. ea.
- Package Size:
- Each
