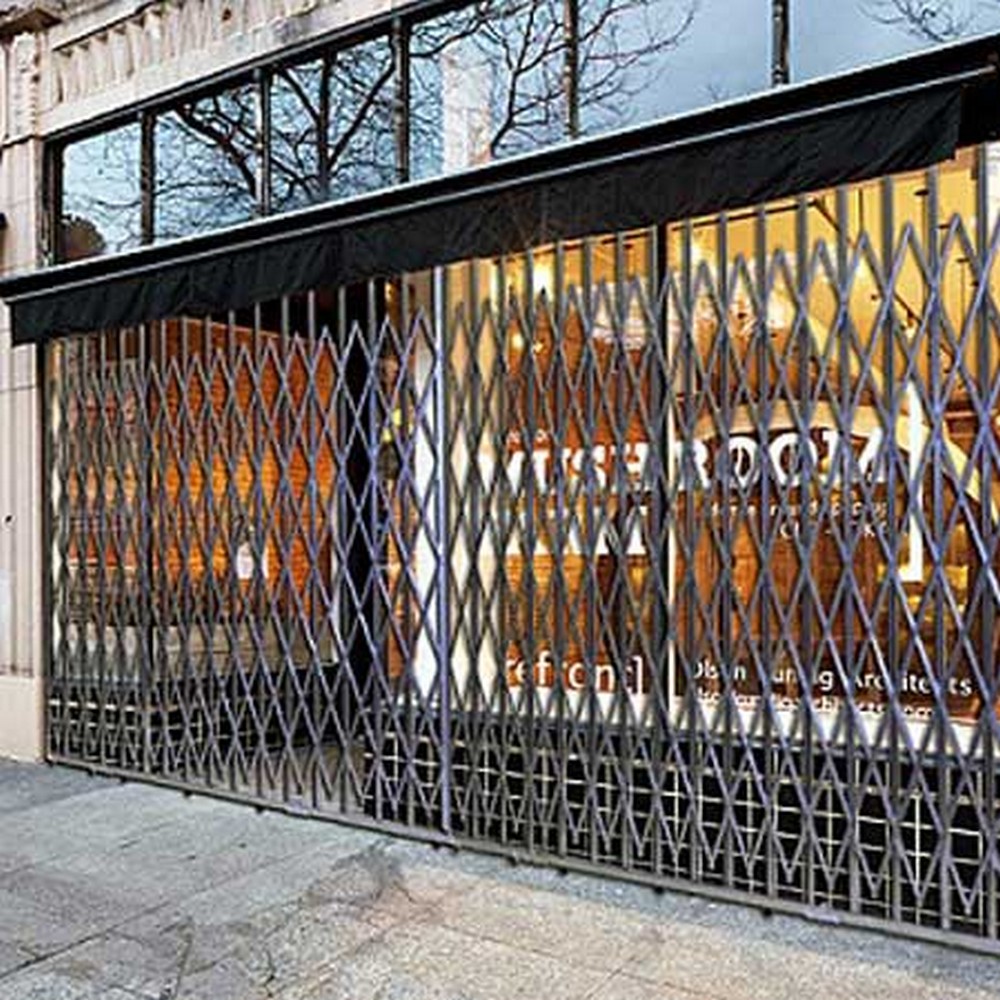

The Illinois Engineered Products HYDS1080 storefront security gate is a full-width, modular barrier designed to secure store fronts, warehouse entries, or defined interior areas. This single-gate system spans 10 feet in width and stands 8 feet tall, providing continuous coverage that can be deployed quickly and retracted smoothly as needed. The design combines vertical bars riding in tracks with a scissor lattice, delivering a balanced blend of visibility and security while maintaining a straightforward installation process. The assembly ships unassembled and is compatible with a range of track configurations and finishes, including galvanized steel with optional powder coat colors to match site aesthetics.

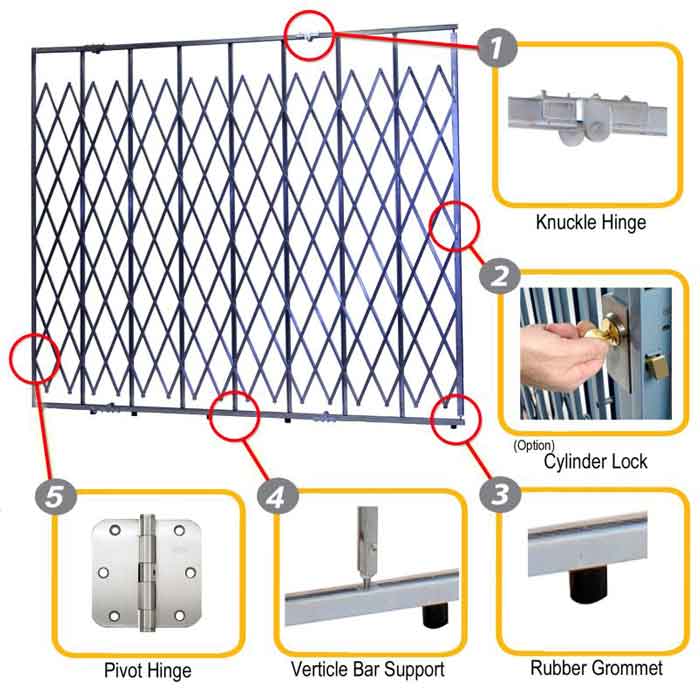

Key construction features include 1-1/4" x 5/8" 14-gauge C-channel steel framing paired with 3/8" x 3/4" 14-gauge U-channel lattice and zinc-plated rivets, which contribute to the sturdy, fixed top and adjustable bottom lattice arrangement. The system includes a padlock hasp as standard, with an integrated cylinder lock option available for additional access control. The gate is designed to withstand indoor or outdoor conditions, including exposure to heat, rain, snow, and common industrial cleaners, making it suitable for a variety of facilities where perimeter or area separation is needed.
For practical use, this one-gate unit is sold as a single, non-returnable package and weighs approximately 200 lbs, indicating a robust, semi-permanent installation option. It’s intended for settings where delineated access control is required without permanent wall mounting, and it should be paired with compatible top and bottom track installations to ensure reliable operation and secure anchoring. Maintenance considerations include inspecting the track and rivets for wear and ensuring the rubber feet remain intact to preserve stability over time.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Indoor/outdoor durability for heat, rain, snow, and harsh cleaners
- Galvanized steel with optional powder coat finish
- Top and bottom track styles available; other sizes offered
- Padlock hasp standard; optional integrated cylinder lock
- Ships unassembled; comes with 1-year warranty
- Fixed top frame with folding bottom design for secure access
- Width:
- 10'
- Height:
- 8'
- Max Width:
- 10'
- Folded Lattice Height:
- 8'
- Top Frame Style:
- Fixed
- Expanded Lattice Height:
- 7.5'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 200.0 lbs. ea.
- Package Size:
- Each
