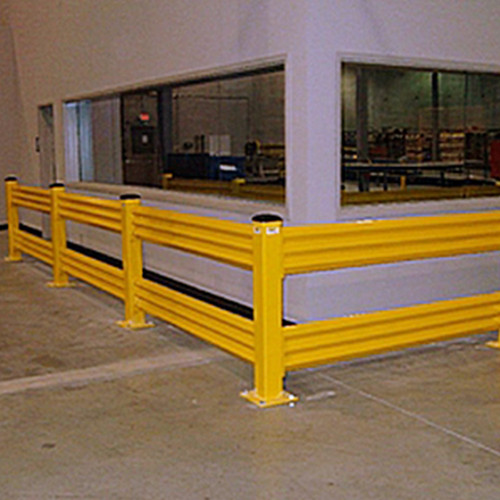

Savety Yellow 10' Stand Guard ribbed barrier guardrail system offers a weld-out, lift-out design that prioritizes quick installation and efficient maintenance. This 42-inch tall guard rail is constructed from 10-ga high-tensile steel, finished in Savety Yellow for high visibility in industrial settings. The 4-inch posts feature a robust 10x10x1/2-inch base plate rated at 10,000 lbs impact at 5 mph, providing a quantified level of structural performance for typical jobsite barriers. Sleeves are welded directly to the posts, eliminating the need for separate brackets and reducing assembly time. Rails are available in a range from 2 to 10 feet, measured center-to-center of the posts, and the entire system is designed to install without additional hardware.
Features:
- 10 gauge high-tensile steel construction
- 4" posts with 10" x 10" x 1/2" base plate, 10,000 lb @ 5 mph impact rating
- All-welded design with sleeves welded to posts (no brackets)
- Posts available in 18", 26", and 42" heights
- Rails available from 2' to 10' in 1' increments
- Half-time installation with no hardware required
- Optional 5/8" x 4.75" anchors upon request
- Height:
- 42
- Material:
- Steel
- Color:
- Yellow
- Package Size:
- Each
