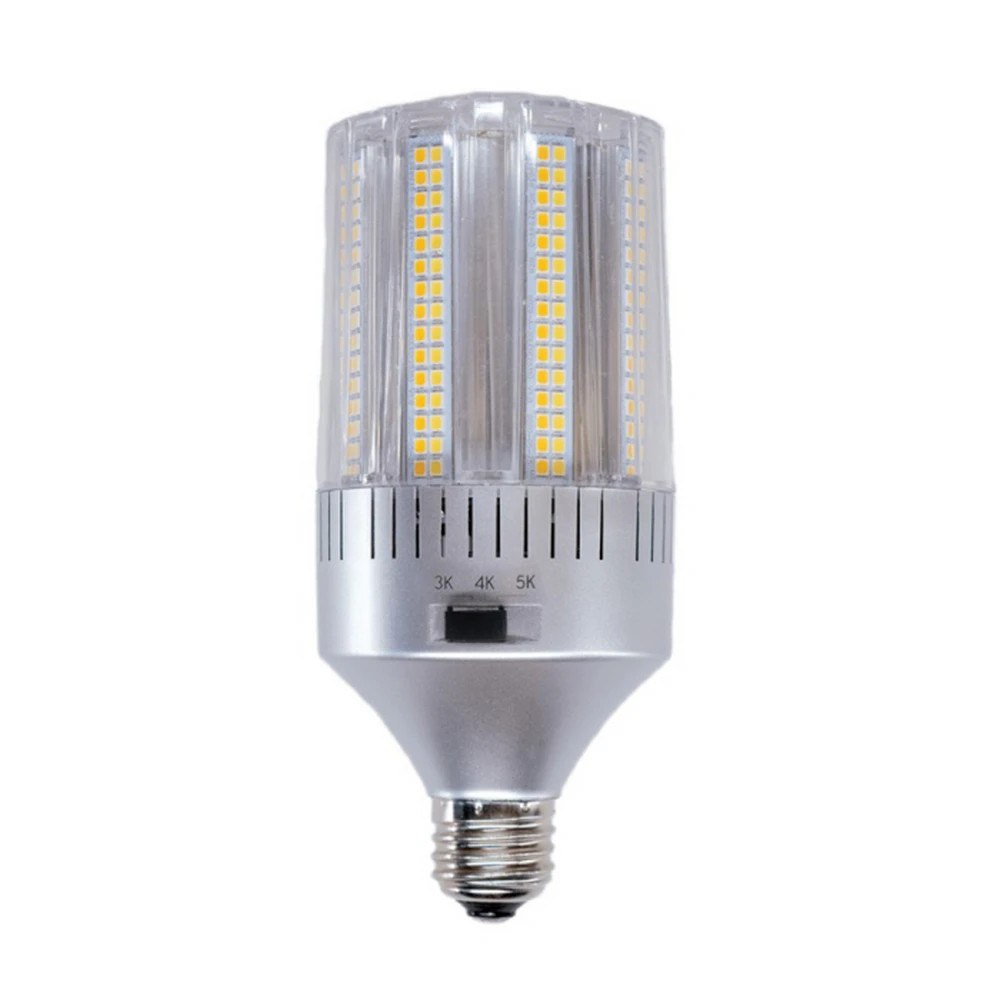

Light Efficient Design LED-8029E345-A-FW SuperFlex LED Post Top Retrofit Lamp - E26 - 12 18 24W - CCT Selectable - 120-277V

The Light Efficient Design LED-8029E345-A-FW is a post-top and bollard retrofit lamp engineered to upgrade HID fixtures to LED with flexible color temperature and wattage options. Designed for E26 medium-base fixtures, this lamp supports wattage selections of 12W, 18W, or 24W and corresponding lumen outputs of 1,550; 2,520; and 3,360, giving installers the ability to balance brightness with energy use. The unit provides three selectable color temperatures (3000K, 4000K, 5000K) to suit different applications and ambiences, and it is dimmable with compatible wired controls, enabling stepped dimming without changing the fixture itself. Its construction supports multi-directional mounting, so installation can be base-up, base-down, or sideways without compromising performance.

Key design elements include an enclosed-fixture rating and damp-location suitability, which help ensure reliable operation in harsher or moisture-prone environments. The lamp is rated for a long service life (50,000 hours) and is built to operate over a wide temperature range (-40°F to 122°F), making it suitable for outdoor or unconditioned settings where HID replacements are common. It includes protective features such as dual-stage MOV and surge protection (up to 6 kV), and its pretested, potted driver is burn-in-tested prior to shipment to promote reliability in the field. This lamp is designed to deliver comparable brightness to a 150W HID equivalent while maintaining efficiency in modern post-top and bollard fixtures.

Typical applications include retrofit projects for bollards and post-top lighting in parking areas, walkways, and entrances where durable, low-maintenance LED illumination is preferred. The device is compatible with 120–277V mains, enabling easy integration into many existing electrical systems. When selecting this lamp, consider the desired color temperature and wattage level for the specific installation, the fixture’s enclosure rating, and the available mounting orientation to ensure optimal performance and longevity.

Features:

• 120-277V ballast bypass operation
• CCT-selectable: 3000K / 4000K / 5000K
• Wattage-selectable: 12W (1,550 lm), 18W (2,520 lm), 24W (3,360 lm)
• E26 medium base, corn cob shape
• Dimmable with compatible wired controls
• Enclosed fixture rated, damp location rated
• Multi-directional installation orientation
• Dual stage MOV and 6kV surge protection
