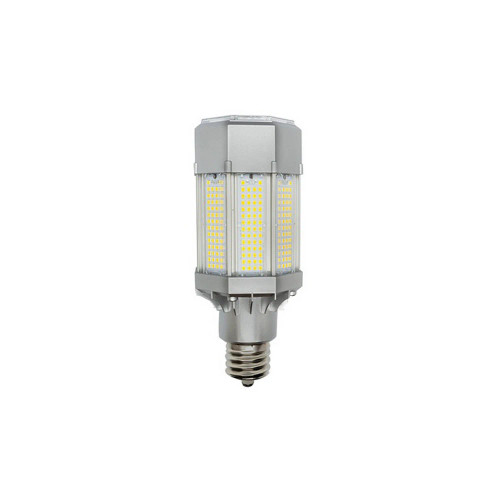

The Light Efficient Design LED-8024M345-G7-FW is a multi-w watt, post-top retrofit lamp designed to replace HID sources with a 120-277V Mogul EX39 base. Built for ballast-bypass (Type B) operation, this lamp delivers high efficiency with selectable wattage and color temperature, enabling flexible light output to match installation needs. It features active cooling with a built-in fan and dynamic temperature control to help sustain lumen output and extend service life in enclosed and damp fixtures. The design supports installation in multiple orientations (base up, down, or sideways) without compromising performance, making it adaptable for various post-top or canopy applications.
Constructed for rugged environments, the lamp is rated for damp locations and enclosed fixtures, and it is pretested prior to shipping to minimize field surprises. With a 50,000-hour rated life and integrated surge and MOV protection (dual-stage), it aims to provide dependable operation in installations exposed to voltage transients. The unit is compatible with Light Efficient Design’s DLC standards and offers selectable operation: 35, 45, or 60 watts, along with selectable color temperatures of 3000K, 4000K, or 5000K. It also lists the ability to replace fixtures through HID equivalence, targeting up to 320W HID replacement in a compact 7.8-inch by 3.4-inch package.
When selecting this retrofit, consider the environmental conditions and fixture compatibility: ensure the EX39 Mogul base is appropriate for the existing ballast-bypass wiring, confirm that the fixture enclosure can accommodate the 7.8-inch length, and verify that the ambient temperature range (-40 F to 122 F) is suitable for your installation. The product’s multi-wattage and CCT options offer versatility for retrofit projects seeking to optimize energy use and color quality while maintaining reliability in challenging locations.
Features:
- 120-277V operation with Mogul EX39 base
- Wattage selectable: 35W, 45W, or 60W
- CCT-selectable: 3000K, 4000K, 5000K
- Replaces up to 320W HID lamps
- Damp location rated and enclosed fixture rated
- Advanced active cooling with built-in fan
- Dual stage MOV protection with 6kA surge protection
- Brand:
- Light Efficient Design
- DLC Product ID:
- PXWAVCTJ
- Manufacturer Part Number:
- LED-8024M345-G7-FW
- UPC:
- 844006060725
- Lumens:
- 8,870 Lumens
- Lumens Per Watt:
- 147.83
- Wattage:
- 60 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- 3000K, 4000K, 5000K
- Installation Orientation:
- Universal
- Lamp / Base Type:
- EX39 Mogul
- Lamp Shape:
- Corn Cob
- Rated Hours:
- 50,000 Hours
- Equivalent:
- 320W HID
- Min Operating Temp:
- -40 Degrees F
- CRI:
- 80+
- Special Features:
- CCT Selectable, Enclosed Fixture Rated, Wattage Selectable
- Length:
- 7.8
- Diameter:
- 3.4
- Package Size:
- Each
