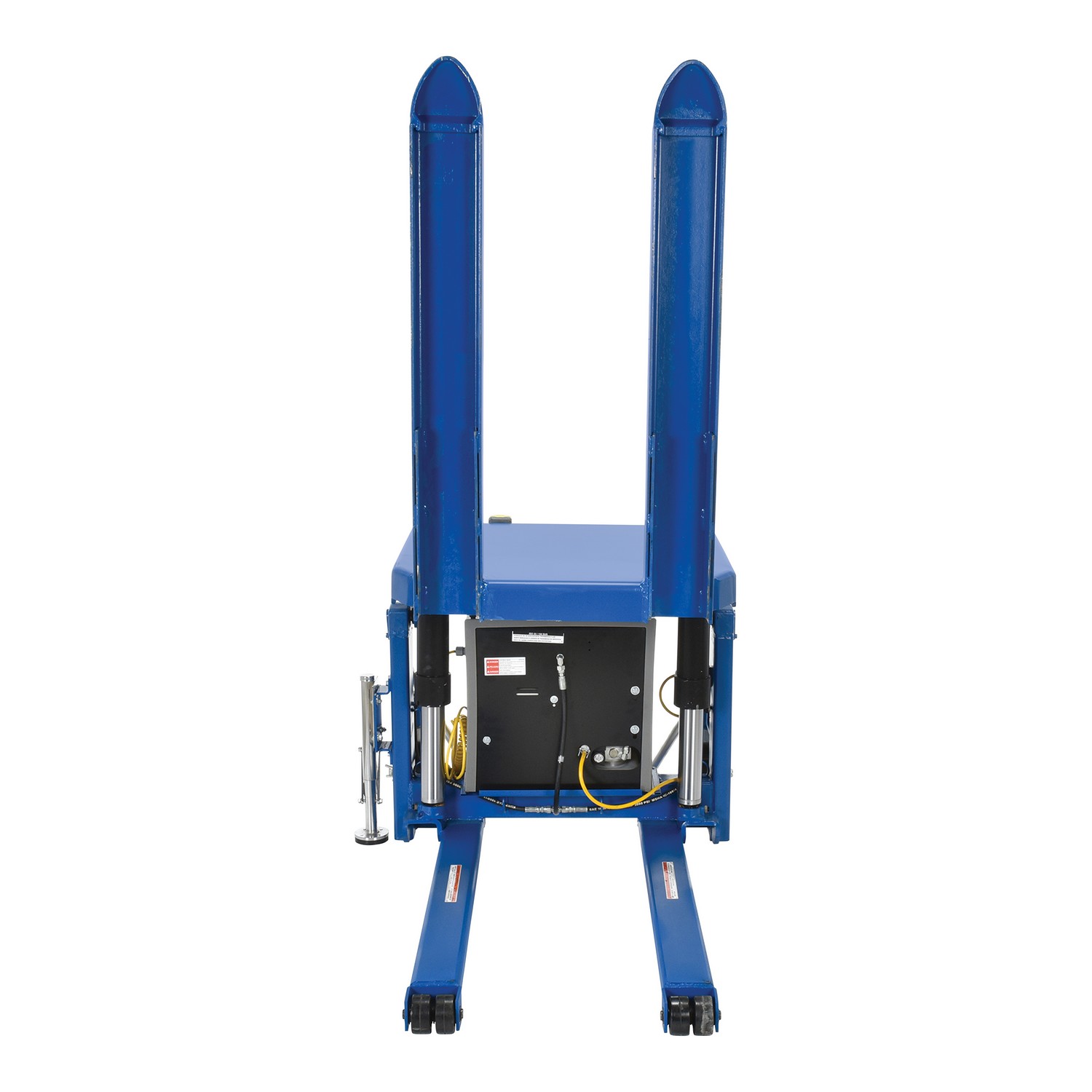

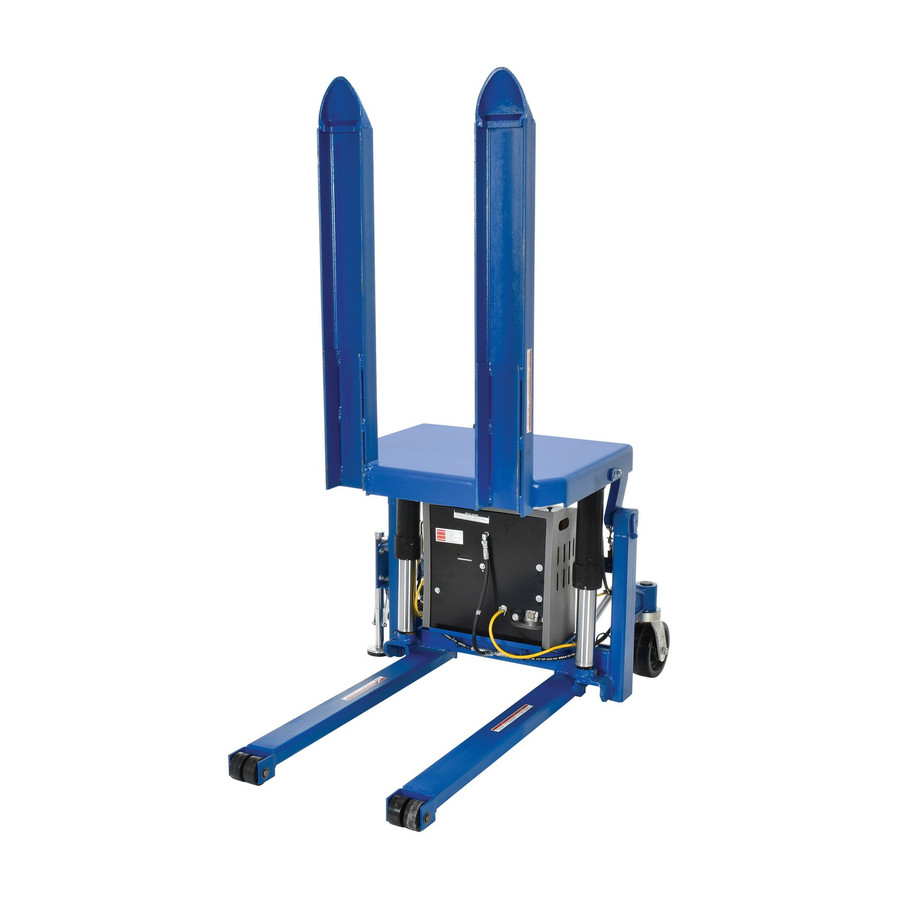

The Vestil TM-40-AC Tilt Master is a powered material handling tilter designed to lift, tilt, and position filled tote boxes or baskets with minimal reliance on a forklift or lift table. With a 4000 lb uniform capacity, this electric AC-powered unit helps move completed loads between workstations, functioning as a transporter to improve workflow and reduce manual handling time. The ergonomic design includes a folding push handle that tucks away when not in use, enabling closer access to loads and easier maneuverability in tight spaces.
Construction recognizes practical needs in busy environments: a compact profile that allows load positioning close to the pallet or skid, four-wheel mobility with two rigid and two swivel casters for smooth navigation, and a 90° tilt capability for versatile access. The balanced platform and geometry are specified for use with open-bottom pallets or skids, and the tilt mechanism centers around a 20-inch load center with a 26-inch fork width and 38-1/8 inch fork length, enabling compatibility with common totes and containers. The unit features a 7-1/4 inch operator reach and a 3-5/8 inch lowered height, helping operators position loads at a comfortable height for transfer and placement.
Practical considerations include the 115V, single-phase power requirement and 8-inch phenolic wheels with a 3-inch wheel width, designed to support steady movement and durability on typical warehouse floors. The package is listed as per-unit, and the model is identified by manufacturer part number VESTM-40-AC. When integrating this tilt master into a receiving, staging, or order-packing workflow, ensure load dimensions and pallet configurations align with its fixed fork dimensions and 90-degree tilt capability to maximize ergonomic benefits and placement accuracy.
Features:
- Functions as a transporter between workstations without a fork truck
- Two rigid and two swivel casters for smooth mobility
- 90° tilt angle for better ergonomic access
- Ergonomic push handle folds down for better access when not in use
- 4000 lb uniform capacity for heavy-duty handling
- Fixed 26 in fork adjustment (OD) and 38-1/8 in fork length
- Power: 115V / 1 PH
- Color:
- Blue
- Material:
- Steel
- Uniform Capacity (lb.):
- 4000
- Fork Adjustment (in.):
- Fixed at 26 (OD)
- Operator Reach (in.):
- 7-1/4
- Fork Width (in.):
- 6
- Fork Length (in.):
- 38-1/8
- Rotated Height (in.):
- 33
- Lowered Height (in.):
- 3-5/8
- Maximum Tilt Degree:
- 90
- Power:
- 115V / 1 PH
- Wheel Diameter (in.):
- 8
- Wheel Width (in.):
- 3
- Wheel Type:
- Phenolic
- Folding Handle Length (in.):
- 20
- Load Center (in.):
- 20
- Package Size:
- Each
