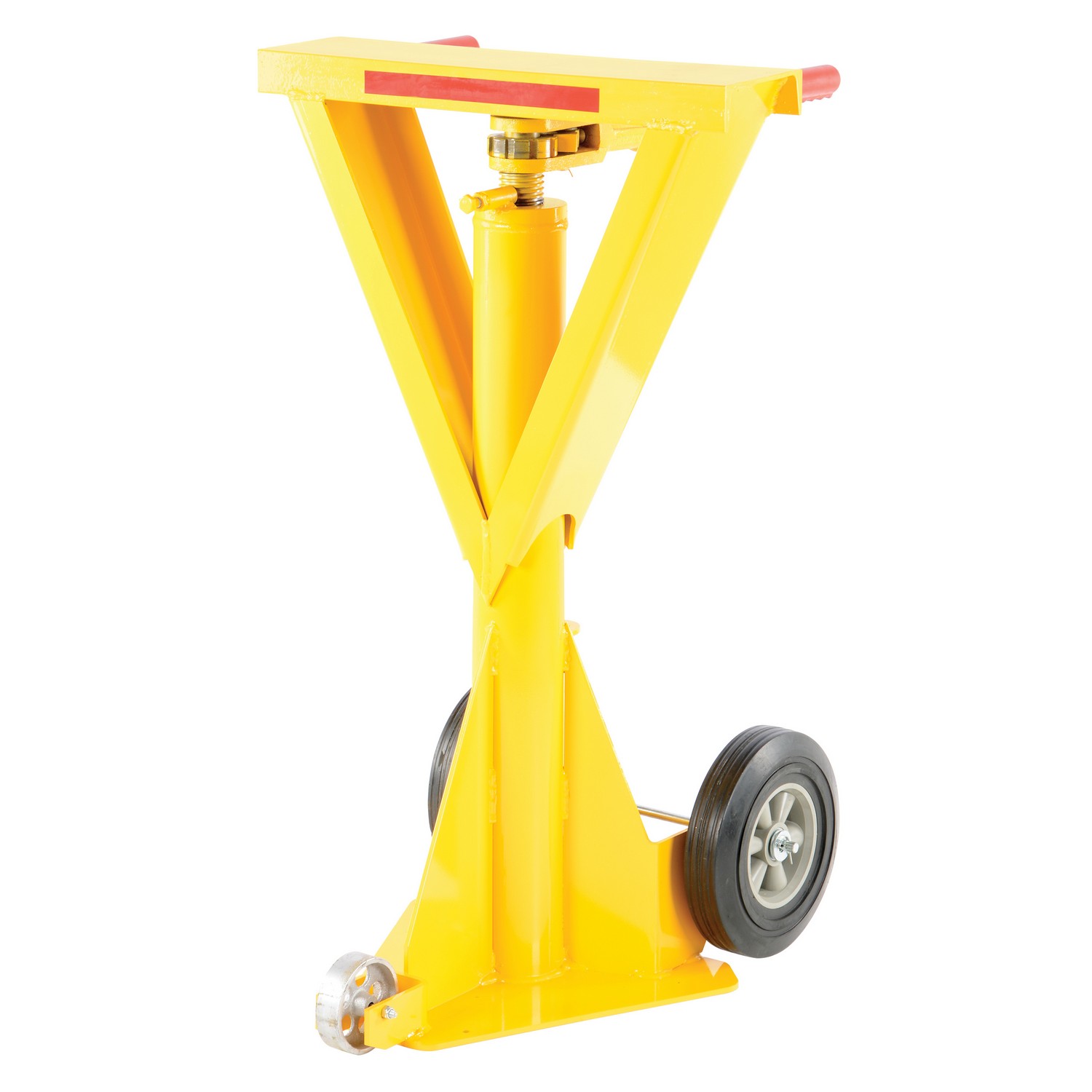

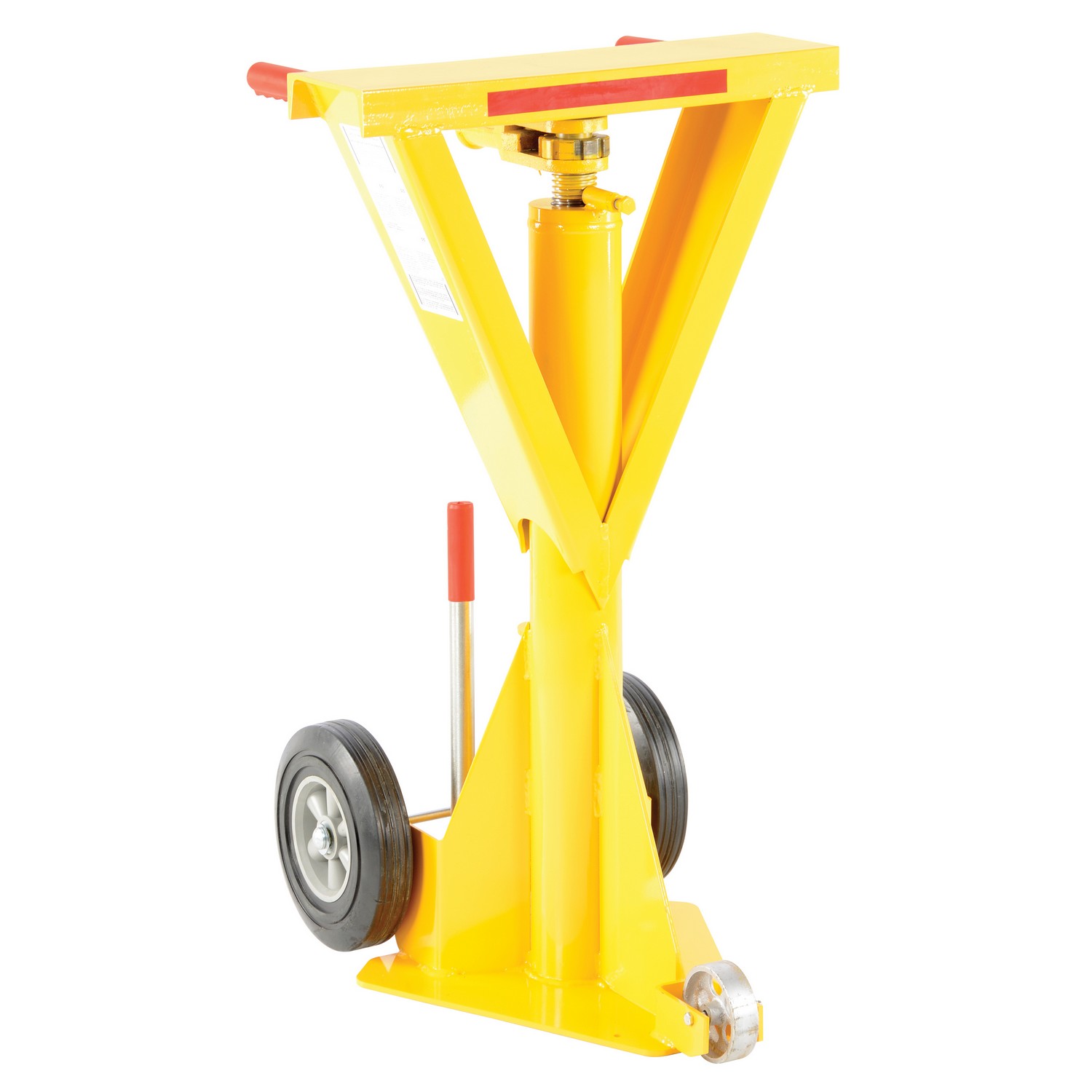

The Vestil LO-J-BEAM Trail Stabilizing Ratchet Beam Jack Stand is a heavy-duty trailer support designed to prevent up-ending semi-trailers during loading and unloading when a tractor is not connected. It also serves to level trailers on uneven or sloped surfaces and helps prevent landing gear from sinking into soft ground. Constructed from high-strength steel, the jack stand features a yellow powder-coated finish with a reflective collar to improve visibility in low light conditions. A flush-type zerk fitting facilitates lubrication of the ACME screw, supporting smoother operation and longer service life. The unit operates via a ratchet mechanism that raises and lowers the lifting beam, enabling controlled adjustment to the desired height.
Key features support rugged, industrial use and safety-conscious operation. The design includes a 100,000 lb uniform static capacity with a 40,000 lb uniform lifting capacity, indicating it is built to handle substantial weight while maintaining stability during routine trailer handling tasks. The built-in wheels are configured with two 10 x 2 hard rubber rear wheels and a front wheel set of 4 x 1-1/4 steel wheels, contributing to manageable positioning on varied surfaces. A 6-inch wide lifting beam and a 23-3/4 inch length provide the geometry needed to support trailers without excessive intrusion into surrounding space. The unit ships as a single stand, and is intended for use in conjunction with wheel chocks to meet OSHA-related safety practices.
Practically, this jack stand excels for temporary trailer stabilization during loading and unloading, as well as for parking on slopes or soft surfaces. Operators should ensure compatibility with the trailer’s landing gear and maintain appropriate wheel chocking and surface conditions to maximize stability. While the product data specifies the capacity and dimensions, verify fit for the specific trailer model and operation to ensure safe use in your facility.
Features:
- High-strength steel construction for rugged use
- Reflective collar improves night visibility
- Unique design levels trailers on sloped ground
- Meets OSHA regulations when used with wheel chocks
- Ratchet operation for controlled height adjustments
- Capacity: 40,000 lb lifting, 100,000 lb static
- Wheels: (2) 10 x 2 hard rubber, front (1) 4 x 1.25 steel
- Color:
- Yellow
- Material:
- Steel
- Uniform Static Capacity (lb.):
- 100,000
- Uniform Lifting Capacity (lb.):
- 40,000
- Lowered Height (in.):
- 40
- Raised Height (in.):
- 51
- Wheel Quantity/Diameter/Width (in.):
- (2) 10 x 2
- Wheel Type:
- Hard Rubber
- Front Wheel Quantity/Diameter/Width (in.):
- (1) 4 x 1-1/4
- Front Wheel Type:
- Steel
- Operation:
- Ratchet
- Lifting Beam Width (in.):
- 6
- Lifting Beam Length (in):
- 23-3/4
- Package Size:
- Each
