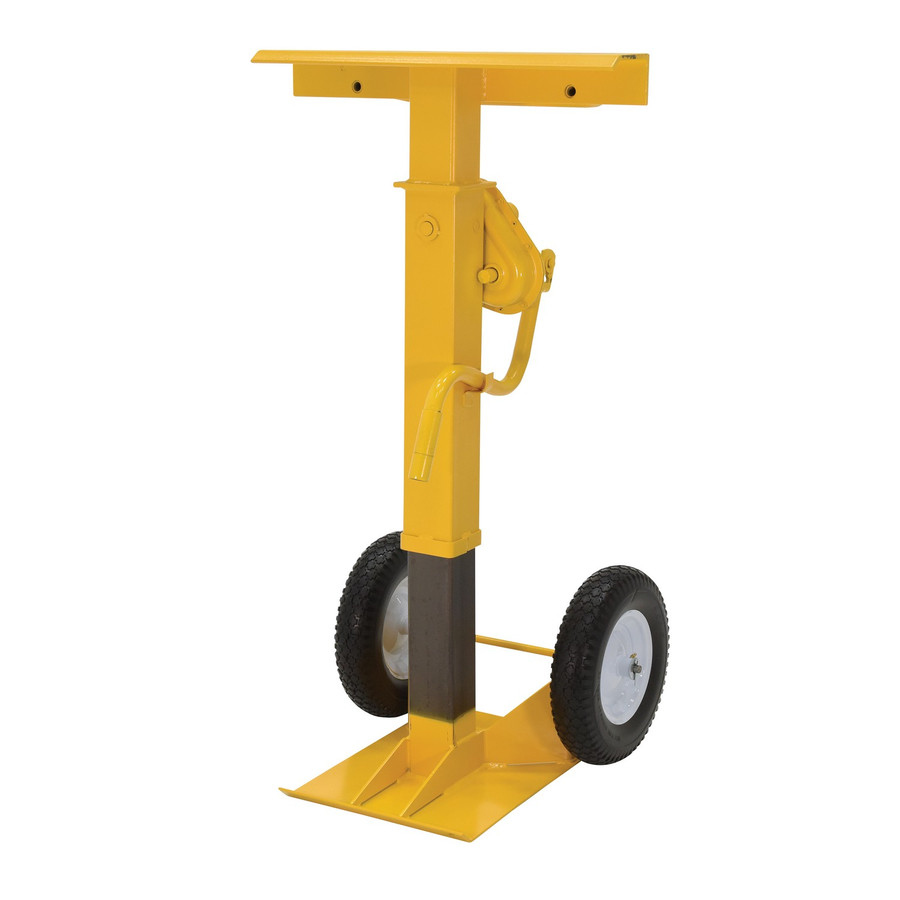

The Vestil VESCJ-BEAM-SN Stabilizing Jack Stand is a trailer support accessory designed to prevent up-ending during loading, unloading, and when trailers are parked on uneven or soft surfaces. It is built to work with wheel chocks to help stabilize semi-trailers that are temporarily disconnected from tractors, and it features a compact beam design that supports the trailer structure along its length for added stability.
Constructed from high-strength steel with a powder-coated safety yellow finish, this jack stand includes a reflective collar to enhance visibility in low-light conditions. The unit uses a hand-crank operation and solid foam wheels for mobility on level ground, enabling placement and adjustment as needed. A flush zerk fitting provides lubrication access to the ACME screw, supporting smooth operation over time. The design is specified for substantial load handling, with a uniform static capacity of 100,000 lb and a uniform lifting capacity of 50,000 lb, indicating its role as a stabilizing device rather than a primary lifting tool.
Typical use scenarios include stabilizing trailers on sloped terrain, preventing landing gear sinking into soft substrates, and maintaining alignment during loading or unloading operations. The product is sized to integrate with standard trailer configurations: a 4-3/8 inch beam length, a 29-3/4 inch beam width, and a 3/8 inch beam thickness, with a lowered height of 41 inches and a raised height of 55 inches. The package is listed as each, and wheel dimensions are 16 inches with solid foam tires for easier maneuvering on firm surfaces. For best results, operators should ensure proper setup in accordance with site conditions and use wheel chocks as appropriate to meet applicable safety requirements.
Features:
- High strength steel construction for long-lasting rugged use
- Reflective collar increases nighttime visibility
- Unique design stabilizes trailers on sloped ground
- Meets OSHA regulations when used with wheel chocks
- Color:
- Yellow
- Material:
- Steel
- Uniform Static Capacity (lb.):
- 100,000
- Uniform Lifting Capacity (lb.):
- 50,000
- Lowered Height (in.):
- 41
- Raised Height (in.):
- 55
- Beam Length (in.):
- 4-3/8
- Beam Width (in.):
- 29-3/4
- Beam Thickness (in.):
- 3/8
- Wheel Size (in.):
- 16
- Wheel Type:
- Solid Foam
- Operation:
- Hand Crank
- Package Size:
- Each
