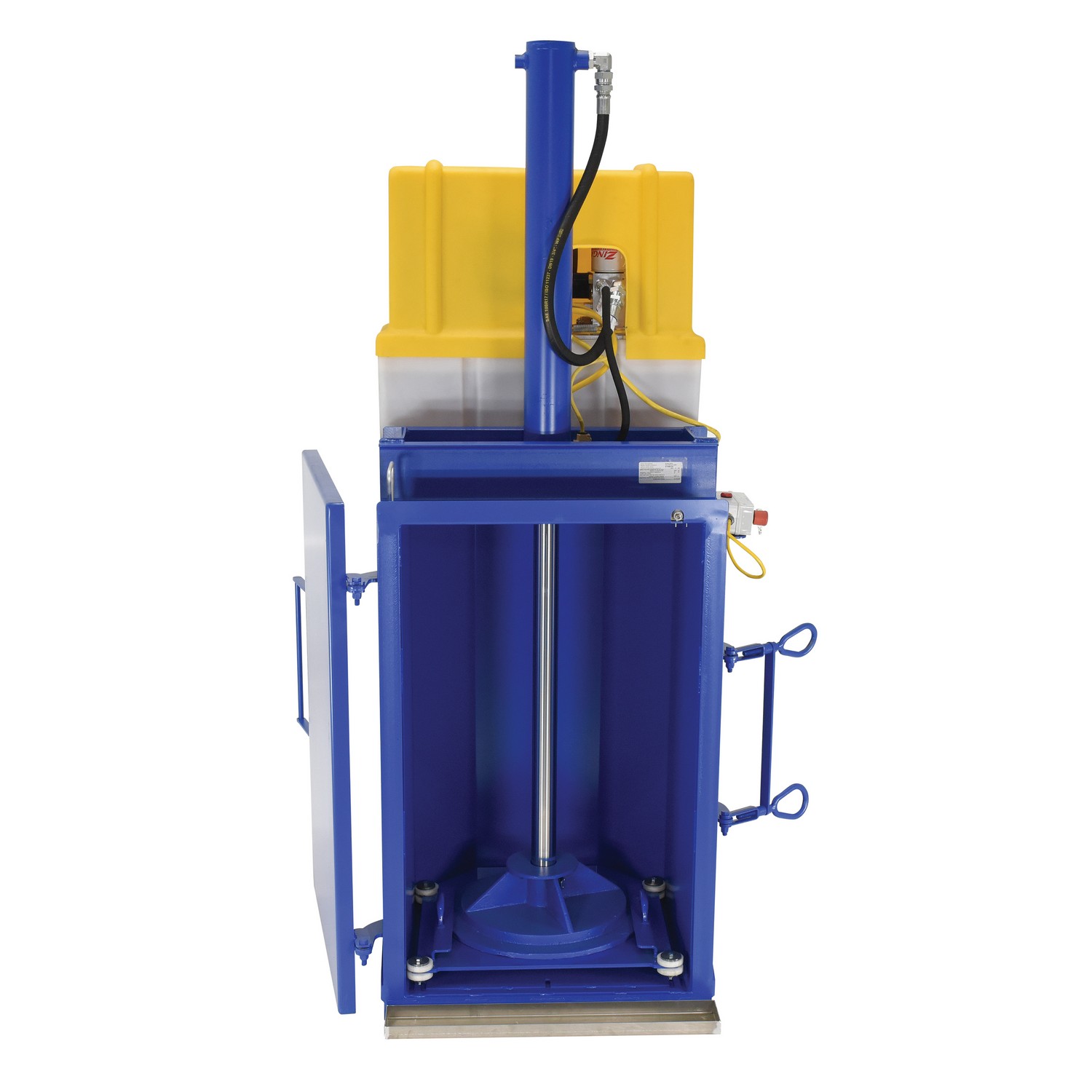

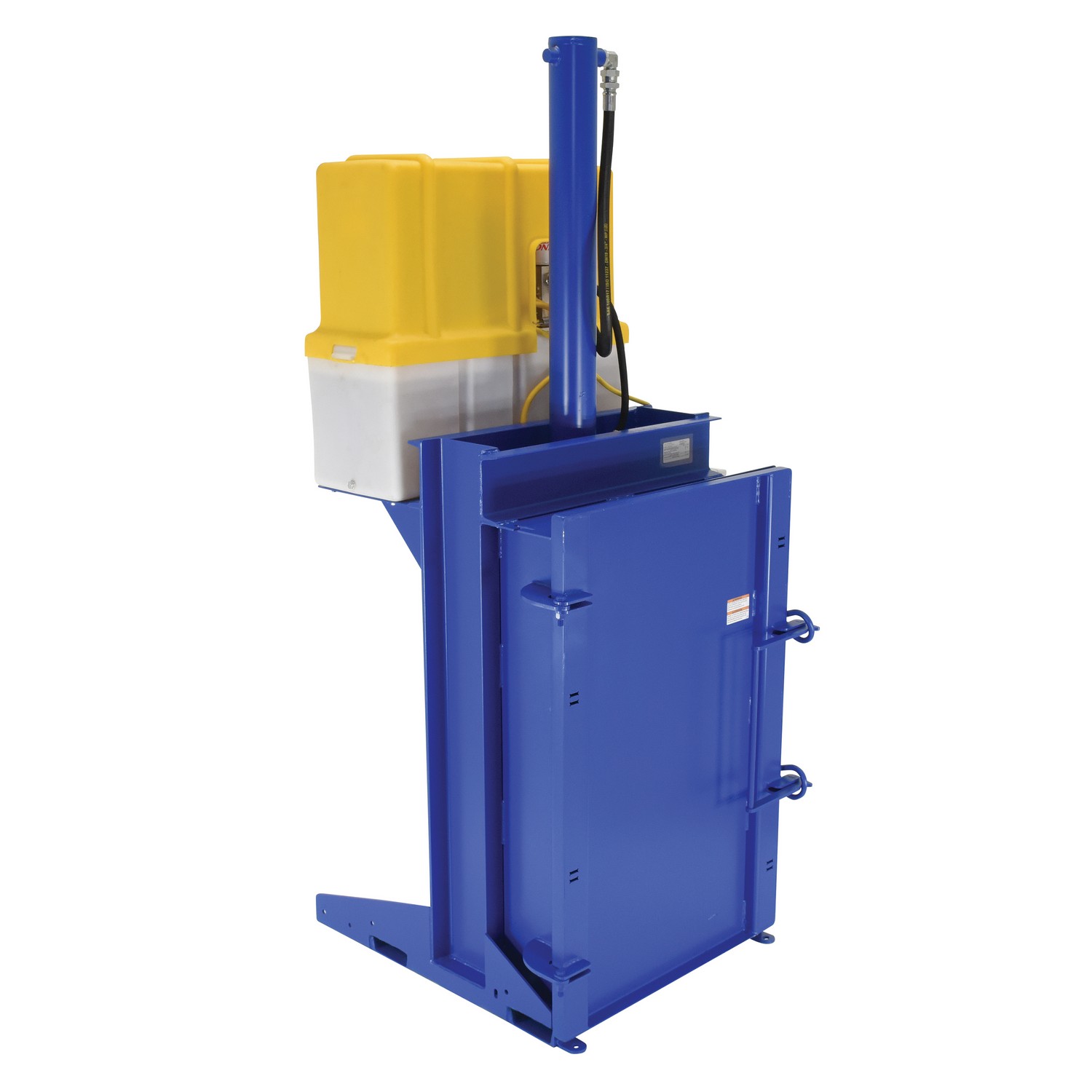

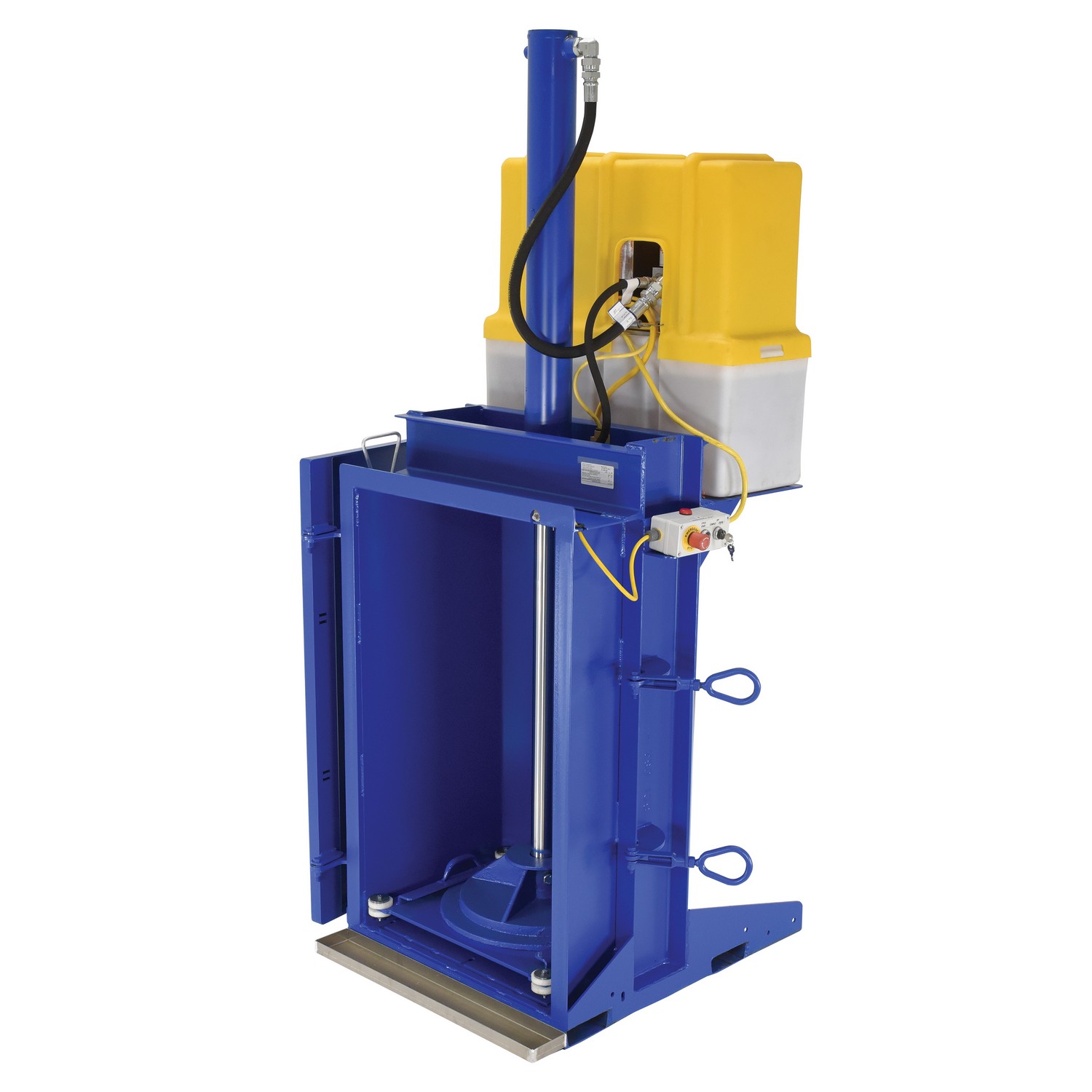

The Vestil HDC-905-IDC/208V is a combined hydraulic drum crusher and compactor designed to handle 55-gallon steel drums with a single, built‑in machine. When in crushing mode, the unit exerts up to 38,000 pounds of force to flatten drums to roughly 6 inches in height, completing the cycle in about 25 seconds. The attached compactor platen provides a separate function: by removing the platen, users can compact the drum contents, with this capability limited to 55-gallon drums. This dual‑function arrangement reduces handling steps and creates a more efficient workflow for drum processing. Safety features include a pressure relief valve to prevent overload and a door interlock that prevents the motor from running unless the door is closed. The machine is built on a steel frame and includes a drip pan to capture potential spills, with fork pockets for easier relocation within a facility.
Features:
- 38,000 lbs. crushing force to flatten 55-gallon drums to 6"
- 25-second full cycle time (crush and retract)
- 3-phase, 208V power with 6.5 HP motor
- Illuminated ON/OFF switch and mushroom-head emergency stop
- All-steel construction with blue finish
- Usable chamber: 25" x 25" cross-section, 35-3/4" tall
- Drip pan and oil reservoir for fluid management
- Color:
- Blue
- Material:
- Steel
- Approximate Crushed Height (in.):
- 6
- Full Cycle Time (Crush and Retract) (seconds):
- 25
- Crushing Force (lb.):
- 38000
- Motor (hp):
- 6.5
- Voltage:
- 208
- Phase:
- 3
- Hertz:
- 60
- Crushing/Compacting Drums per week (qty.):
- 250
- Compacting Platen Diameter (in.):
- 21
- Usable Chamber Length (in.):
- 25
- Usable Chamber Width (in.):
- 25
- Usable Chamber Height (in.):
- 35-3/4
- Crushing Plate Weight (lbs.):
- 75
- Oil Reservoir (Gallons):
- 18
- Max. Crushing Force (lbs.):
- 38000
- Max. Compacting Force (lbs.):
- 18000
- Drip Pan Width (in.):
- 31-1/2
- Drip Pan Length (in.):
- 4-1/2
- Drip Pan Height (in.):
- 1-5/8
- Drip Pan Capacity (gallon):
- 1
- OSHA:
- 1910.212
- ANSI:
- Z245.5
- Standards:
- JIC
- Package Size:
- Each
