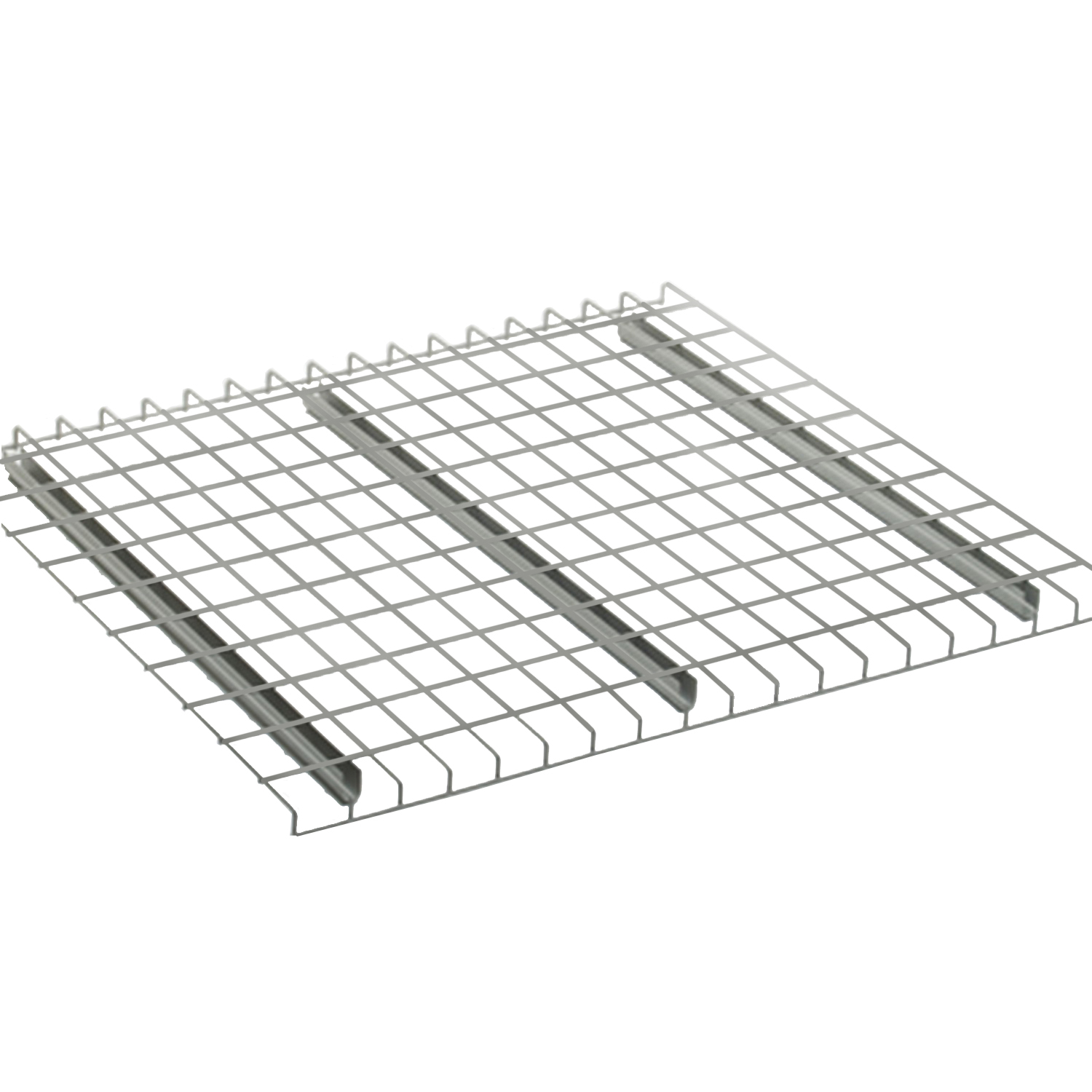

The ND4446S3SA254046S00P is a 44" x 46" wire mesh decking solution designed for pallet rack applications in warehouses. It provides a sturdy, defect-minimized surface for loading full pallets or stacking cartons, with a mesh deck that helps reduce dust accumulation and allows light to pass between levels. This product is positioned as a safer, more versatile alternative to traditional wood decking, built to integrate quickly into existing pallet rack systems without tools, simply dropping into place on the rack beams. The listing notes a 2,500 lb capacity based on uniform distributed load (UDL), reflecting its suitability for standard pallet loads when properly supported by compatible rack infrastructure.

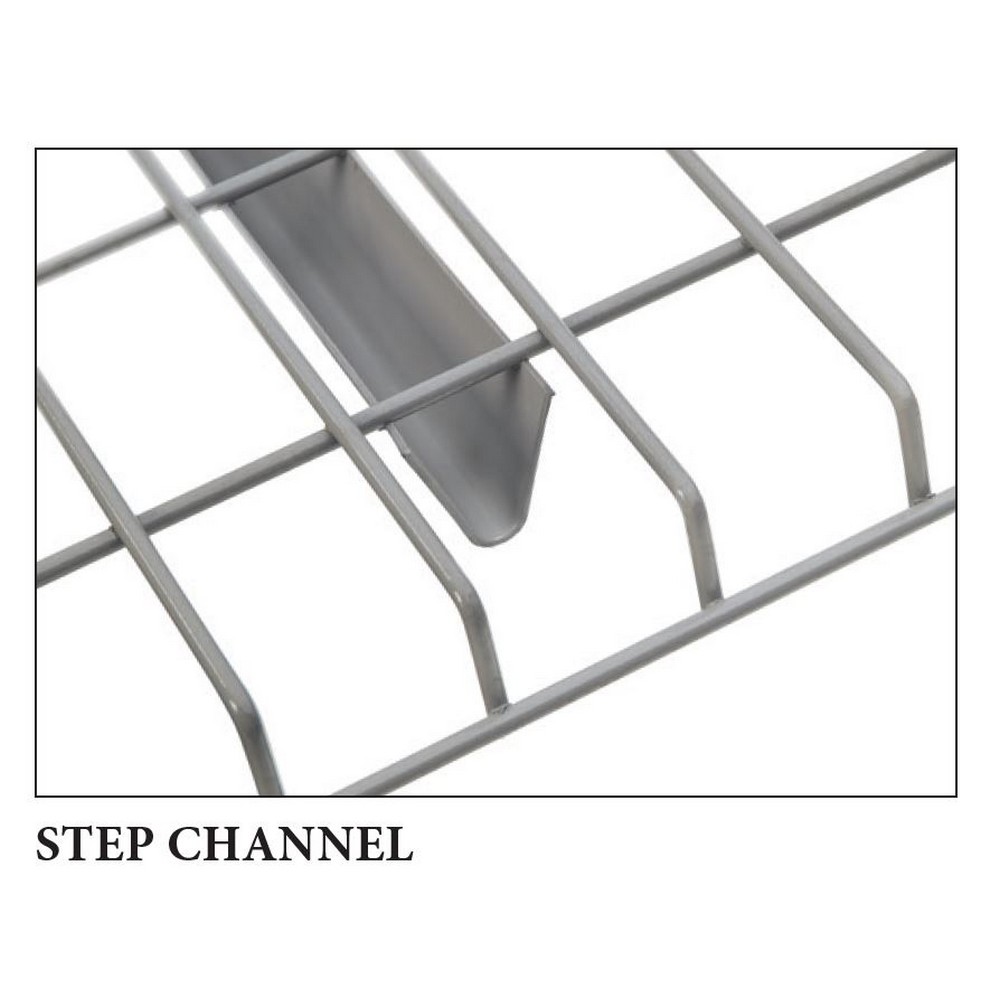

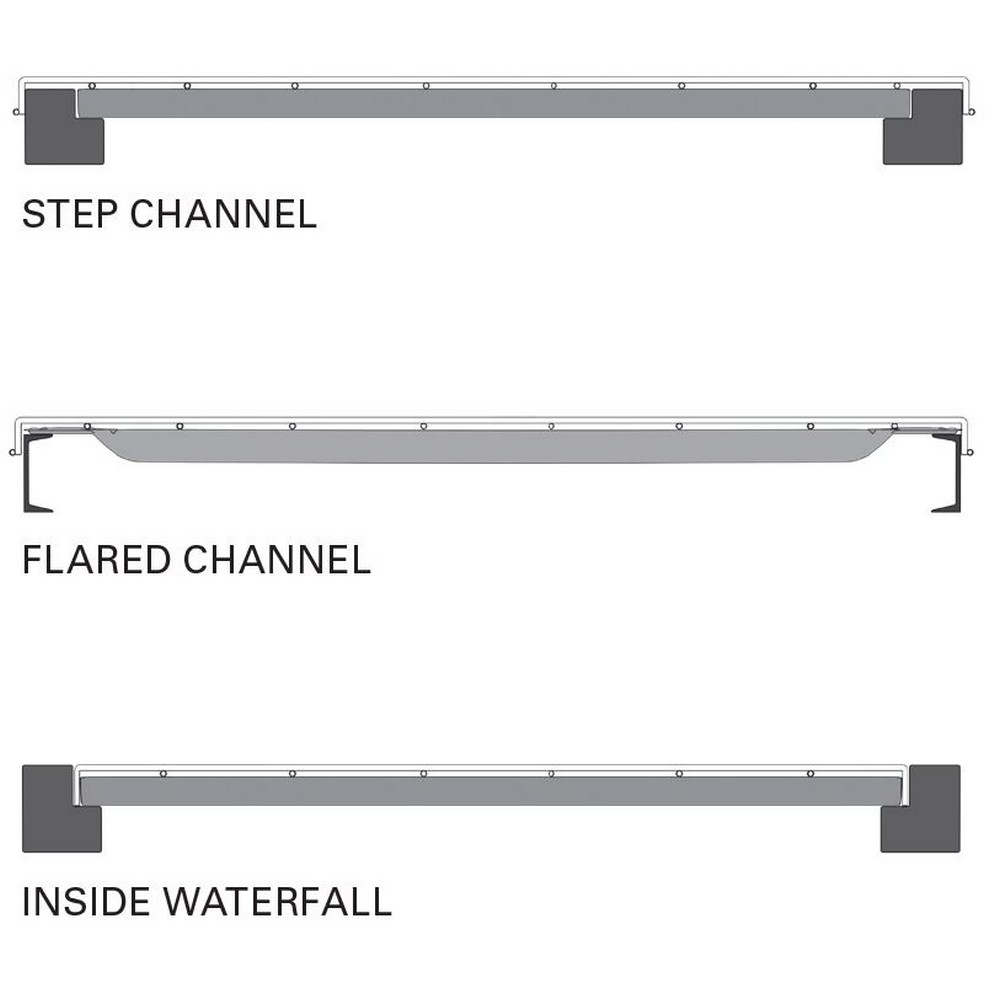

Constructed with a standard 2-1/2" x 4" x 6-gauge wire mesh pattern and supported by 14- or 16-gauge channels, the deck features a front and rear 1-1/2" waterfall edge for secure containment. A durable powder coat finish enhances surface durability, with an electrogalvanized option available to suit different environmental conditions. The design aligns with ANSI MH26.2, signaling compliance with common material-handling standards for wire decking. Custom sizes and designs are offered to fit specific pallet rack configurations, and optional snap-in, hanging, and flue dividers can further tailor the deck to varying storage needs.
Practically, this decking is suitable for warehouses seeking improved load safety and visibility between levels, with a focus on ease of installation and maintenance. When selecting a deck, verify that the pallet rack beams and overall system are compatible with these dimensions and the specified load capacity, and consider whether optional accessories like dividers are needed for your storage mix. Lead times are noted as 2–4 weeks, which may affect project timelines and quoting for large installations.
Features:

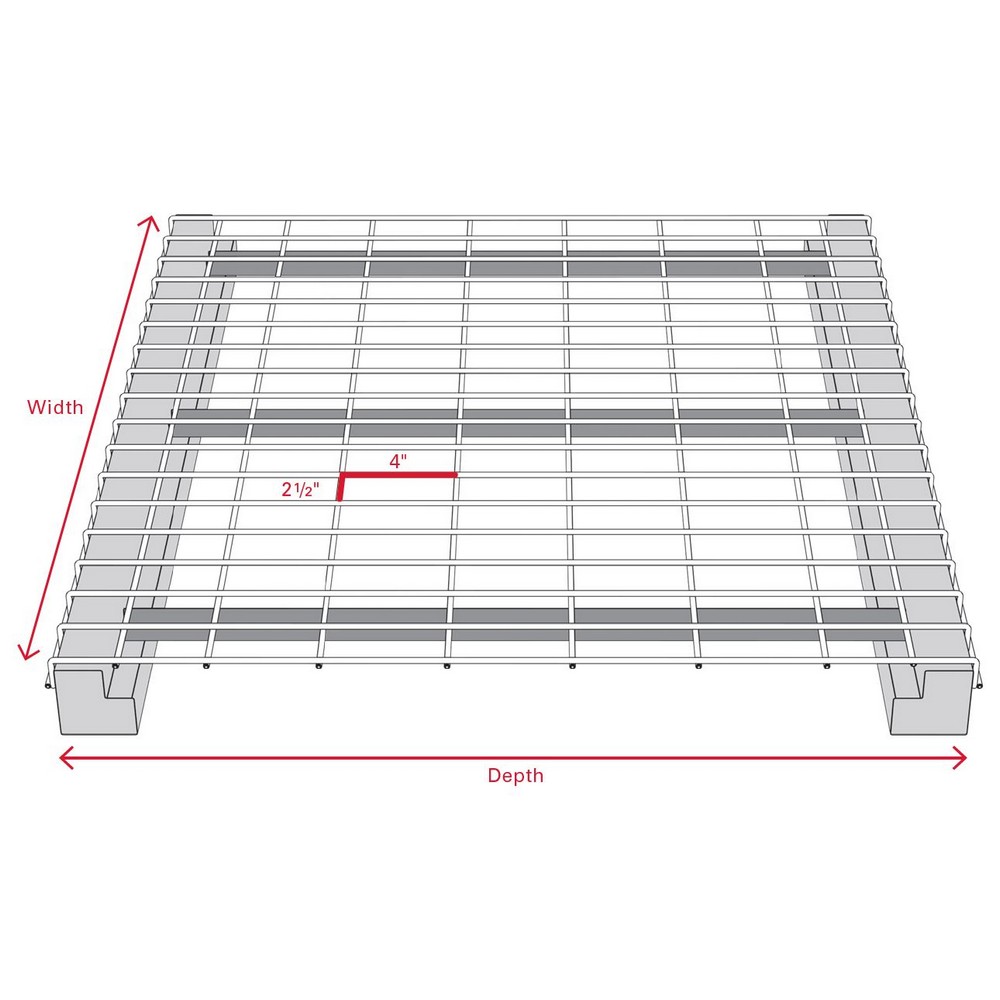

- Standard 2 1/2" x 4" x 6 ga. wire mesh pattern
- 1 1/2" front and rear waterfall
- 2,500 lb capacity (UDL)
- Durable powder coat finish; electrogalvanized option
- Manufactured to ANSI MH26.2
- Custom designs and sizes available
- Optional snap-in, hanging, and flue dividers
- Capacity:
- 2,500 LBS
- Package Size:
- Each
