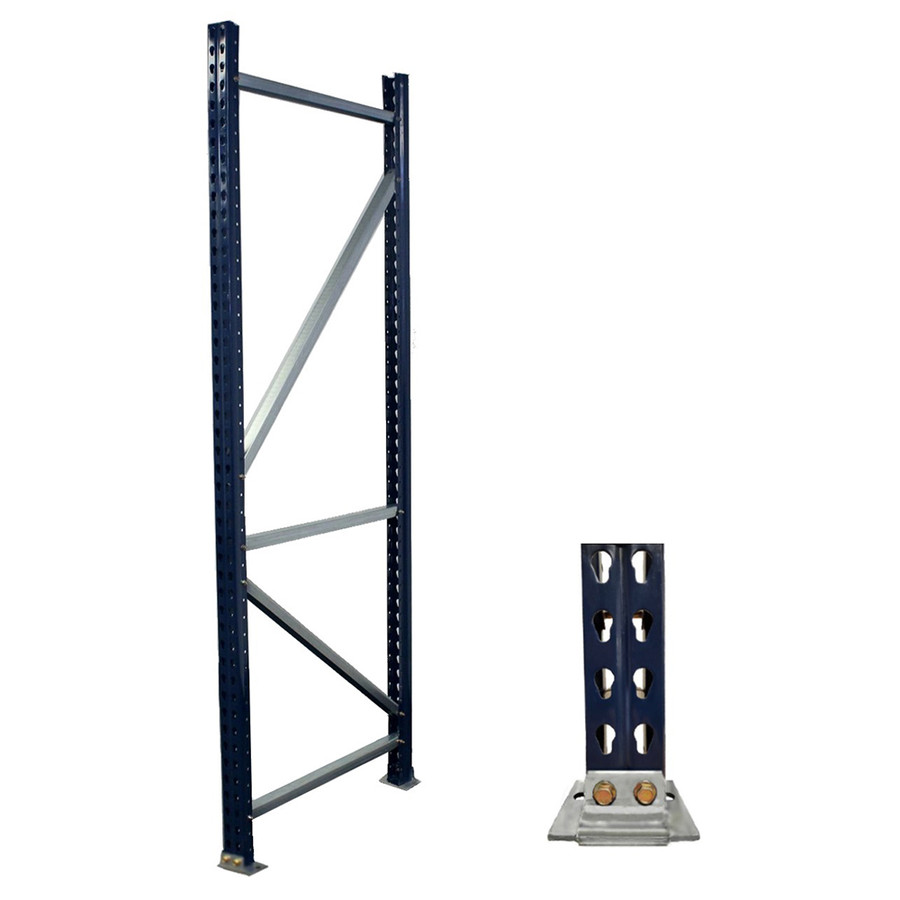

The Interlake Mecalux I2314G14436N000 teardrop upright frame is a heavy-duty component designed to support wide-span pallet rack systems. When paired with compatible beams and other racking components, it forms a direct-access shelving solution that helps you organize and manage palletized inventory in demanding industrial environments. The frame is engineered to work with bolted pallet rack configurations, enabling straightforward assembly and later modification as stock requirements change.
Constructed from high-strength steel with blue finishes applied through cataphoresis and baked enamel processes, the upright frame is designed to resist corrosion and abrasion in tough warehouse settings. The teardrop profile supports adjustable shelf levels in 2-inch increments, allowing precise positioning of shelves to accommodate varying product sizes. Standard pre-punched footplates simplify anchoring to the floor, and Grade 5 bolt connections with zinc plating, along with serrated flange nuts, help prevent loosening during routine use. The bolted design also enables targeted repairs—if a component is damaged, only the affected element needs replacement, reducing downtime.
Practical considerations include non-seismic use limitations and the need to verify availability and delivery timelines since this item is not stocked in the primary warehouse. This frame is part of a broader Interlake Mecalux bolted pallet rack system, and compatibility with specific beams, struts, and accessories should be confirmed prior to purchase. The frame’s 36-inch depth and 144-inch height, with a 20,807-pound rated capacity at 48-inch beam spacing, indicate its suitability for high-density, palletized storage while preserving direct access for efficient stock management.
Features:
- Teardrop frame design enables 2" shelf adjustments
- Pre-assembled bolted upright frame for rapid installation
- Blue cataphoresis finish provides corrosion resistance
- Side perforations accommodate struts and accessories
- Grade 5 zinc-plated bolts and serrated flange nuts reduce maintenance
- Standard pre-punched footplates for easy anchoring
- RMI certified; non-seismic area suitability
- Depth:
- 36"
- Height:
- 144"
- Column Size:
- 3.00" x 2.71"
- Weight Capacity:
- 20,807 @ 48" beam spacing
- Color:
- Blue
- Package Size:
- Each
