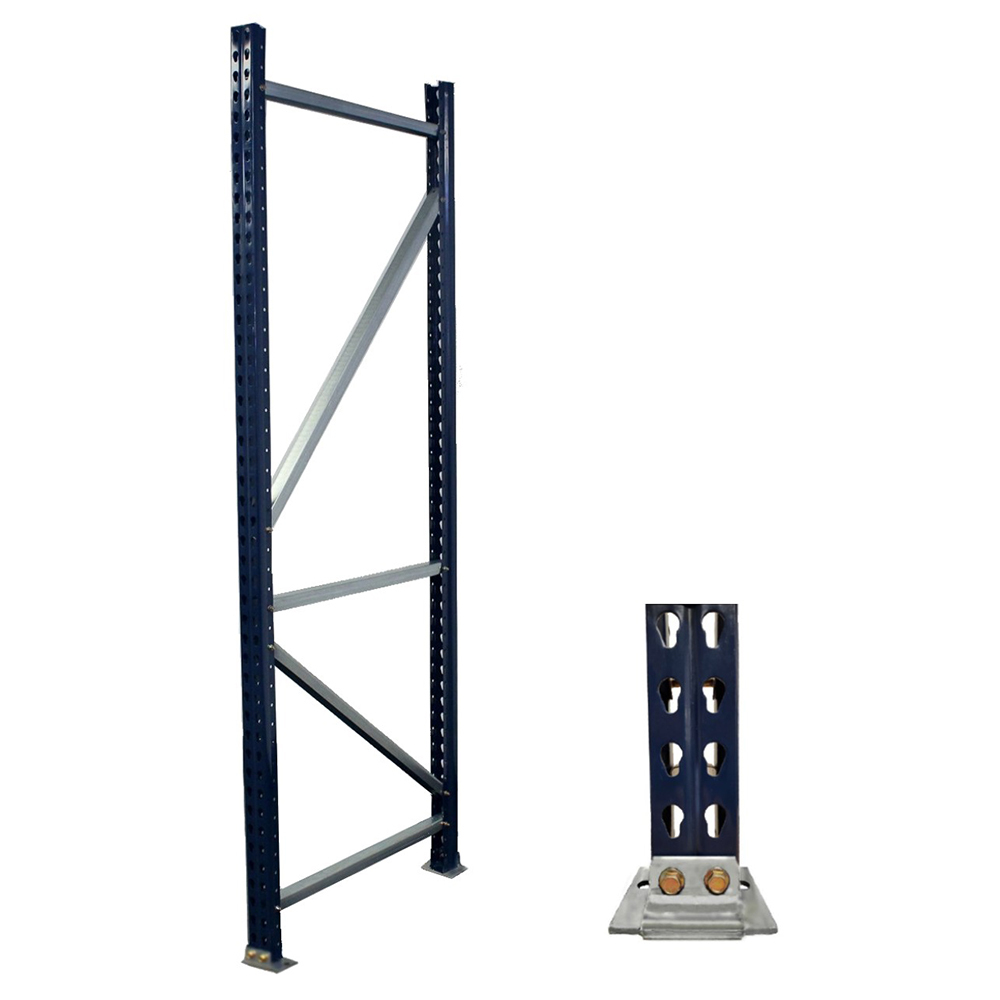

Interlake Mecalux I2314G09636N000 is a bolted pallet rack upright frame designed to expand storage capacity in industrial warehouses. The frame supports direct-access pallet storage when paired with compatible wide-span beams and other racking components, enabling straightforward stock management and flexible configuration for varying product sizes and volumes. Manufactured for demanding environments, this blue-coated frame uses high-strength steel with a corrosion-resistant finish to withstand routine warehouse use and structural adjustments over time.
Key construction features include a teardrop frame design that allows shelf adjustability in 2-inch increments, bolt connections that are Grade 5 and zinc-plated, and pre-punched footplates for anchoring. The bolted design supports easy field repairs by replacing individual components rather than the entire rack, which can help minimize downtime if a section is damaged. The color and coating process, specified as a cataphoresis blue finish, contribute to an even coating with corrosion resistance, while side perforations provide mounting points for frames, struts, and accessories. This frame is RMI-certified, indicating compliance with recognized industry standards for pallet rack hardware.
Given the product’s size and weight capacity—listed at 20,807 pounds when spaced at 48 inches between beams—this frame is suitable for high-density pallet storage in warehouses or facilities that require robust, scalable racking solutions. It is not stocked in all warehouses, so processing times and availability may vary; sales teams can advise on lead times or expedited shipping. For planning, note the 36-inch depth and 96-inch height, along with the 3.00 inch by 2.71 inch column sizing, and plan for compatible wide-span beams and additional racking components sold separately.
Features:
- Versatile upright frames for wide product varieties
- Pre-assembled bolted rack uprights for quick setup
- Teardrop design allows 2-inch shelf adjustments
- Grade 5 bolt hardware, zinc plated with serrated flange nuts
- Blue cataphoresis finish provides corrosion resistance
- Standard pre-punched footplates for anchoring
- RMI certified for bolted pallet rack uprights
- Depth:
- 36"
- Height:
- 96"
- Column Size:
- 3.00" x 2.71"
- Weight Capacity:
- 20,807 @ 48" beam spacing
- Color:
- Blue
- Package Size:
- Each
