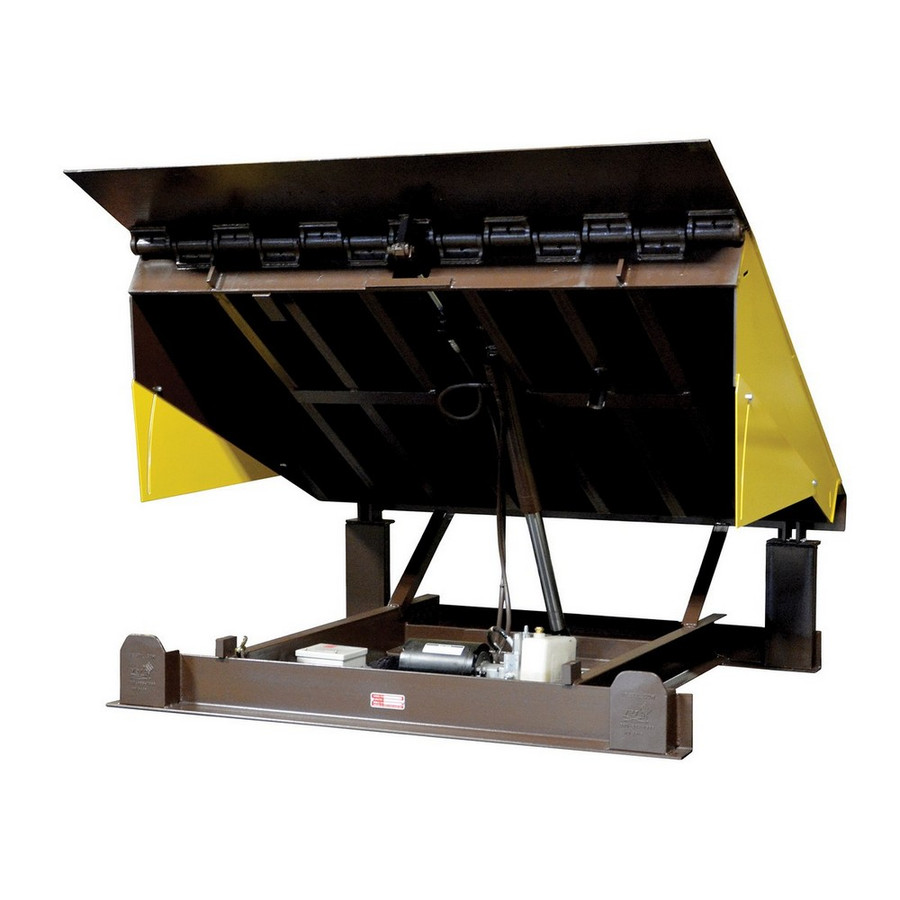

The Vestil EH-66-40 electric hydraulic dock leveler is designed for high-usage dock environments, providing efficient deck raises with a simple push-button operation. The deck lift is powered hydraulically, and when raised, the lip automatically extends to facilitate loading and unloading from trailers. After the operator releases the raise control, the deck descends to rest on the trailer, and a built-in limit mechanism returns the unit to the level cross-traffic position once the vehicle moves away. A red emergency stop in the control box enhances operator safety during operation. Telescopic steel toe guards on both sides are flush with the platform edge to help protect feet and provide safer access onto and off the dock. The unit is configured for 460V 3-Phase electrical service with a uniform capacity rated at 40,000 lb, making it suitable for busy distribution environments where heavy payloads are routinely handled.
The EH-66-40 features a service range above dock of ±12 inches, enabling versatility in accommodating different trailer heights and dock configurations. The package is listed as a single unit per order, and the model is specified with a 74" wide by 62" long by 24" deep deck footprint, aligning with common pallet handling dimensions and palletized load requirements at many facilities. This product can help reduce dock time and improve loading efficiency by providing a reliable, hydraulically actuated platform that automatically laces into the trailer bed for secure, efficient transfers.
Features:
- Hydraulic design with push-button operation
- Automatic lip extension on deck raise
- Red emergency stop on control box for safety
- Telescopic steel toe guards on both sides
- Uniform 40,000 lb capacity
- Uniform Capacity (lb.):
- 40,000
- Service Range Above Dock (in.):
- 12
- Package Size:
- Each
